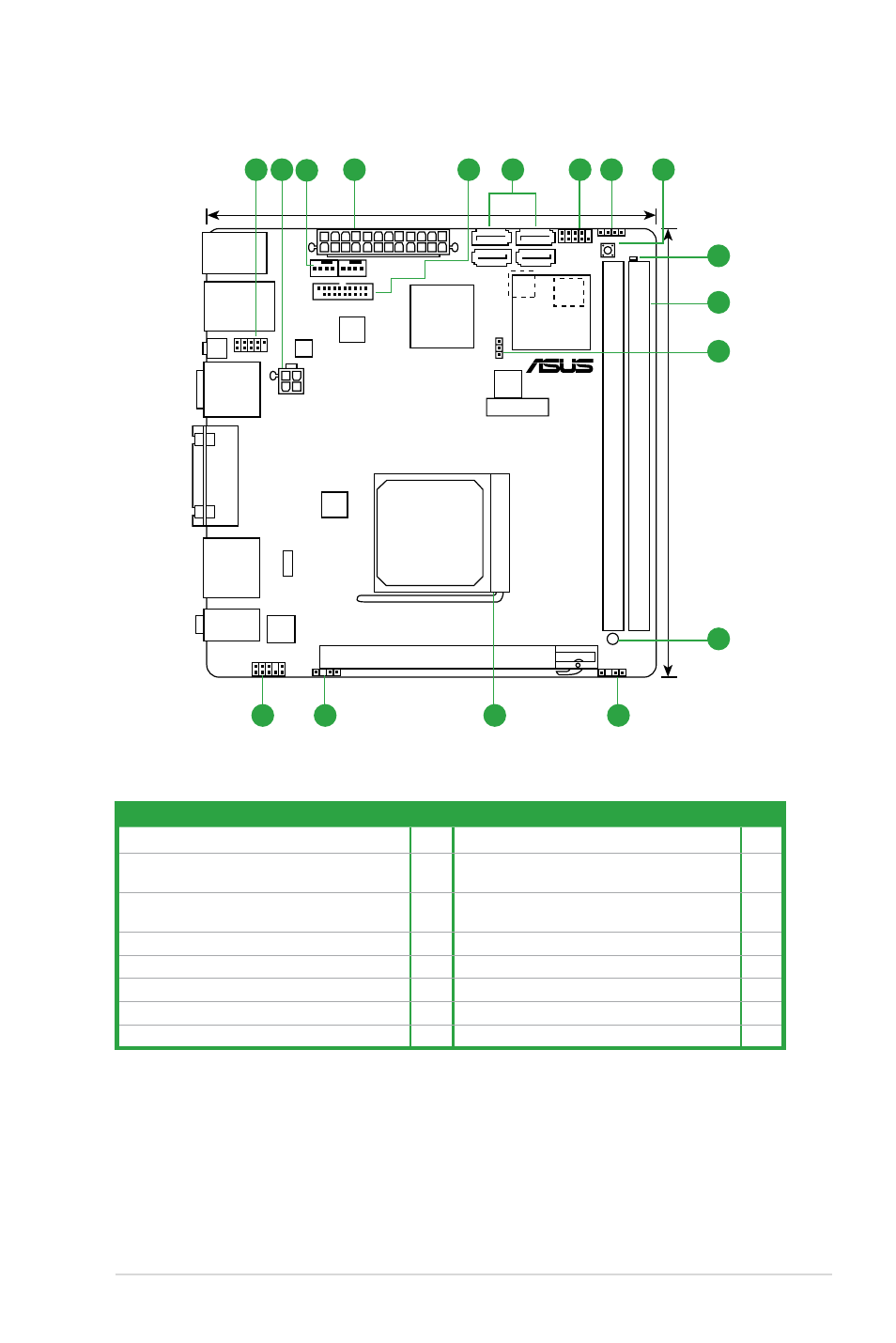

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. USB connector (10-1 pin USB56) 1-28 9. DRAM LED (DRAM_LED) 1-30
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-24 10. DDR3 DIMM slots 1-12
3. CPU and chassis fan connectors
(4-pin CPU_FAN and 4-pin CHA_FAN)
1-23 11. Clear RTC RAM (3-pin CLRTC) 1-20
4. USB 3.0 connector (20-1 pin USB3_34) 1-27 12. Standby power onboard LED (SB_PWR) 1-30
5. SATA 6.0Gb/s connectors (7-pin SATA6G_1~4) 1-25 13. Chassis intrusion connector (4-pin CHASSIS) 1-23
6. System panel connector (10-1 pin F_PANEL)
1-26 14. AMD FM1 socket 1-8
7. Speaker connector (4-pin SPEAKER) 1-26 15. Digital audio connector (4-1 pin SPDIF_OUT) 1-25
8. MemOK! switch 1-29 16. Front panel audio connector (10-1 pin AAFP) 1-27
F1A75-I DELUXE
PCIEX16
Super
I/O
F_PANEL
AAFP
ATX12V
EATXPWR
CHA_FAN CPU_FAN
USB56
Lithium Cell
CMOS Power
ALC
892
RTL
8111E
EPU
ASM
1445
32Mb
BIOS
SB_PWR
17cm(6.7in)
17cm(6.7in)
AMD ®
A75
MemOK!
DRAM_LED
SATA6G_4 SATA6G_2
SATA6G_3 SATA6G_1
AUDIO
SPDIFO
_HDMI
_DP
LAN1
_USB3
_12
KB_USB34
DVI
ANTENNA_PORT
ESATA6G _USB12_BT
USB3_34
NUT_WLAN1
SPDIF_OUT
CHASSIS
SPEAKER
ICS
9LRPS477
DDR3 DIMMB1 (64bit, 240-pin module
)
DDR3 DIMMA1 (64bit, 240-pin module
)
SOCKET FM1
CLRTC
CLRTC
TPU
5 1 2 2 3
10
11
9
12
15 16
6 7 8 4
13 14
ASUS F1A75-I DELUXE 1-7
