1.10 Connectors

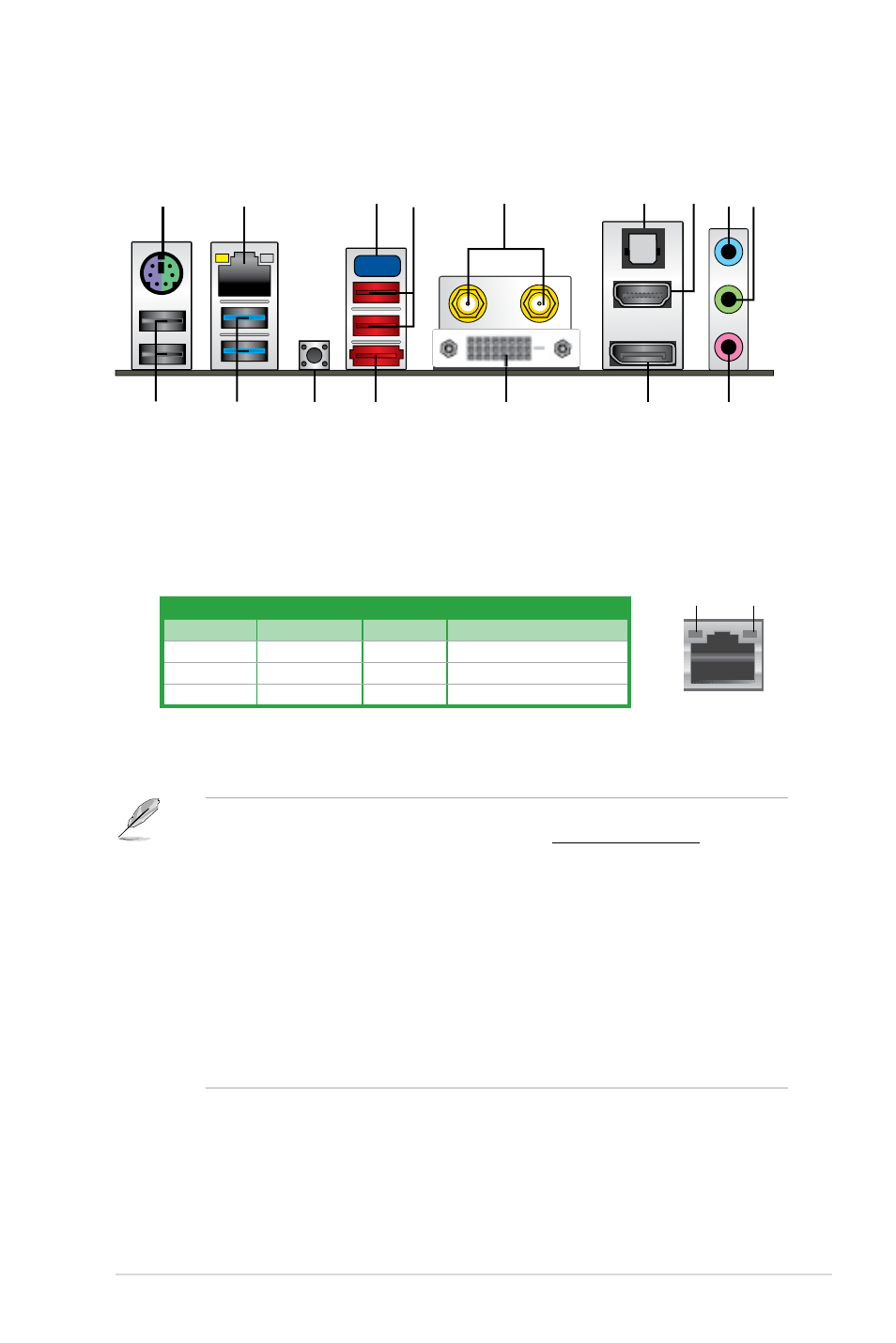

1.10.1 Rear panel ports
Activity/Link LED Speed LED
Status
Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
1. PS/2 Keyboard/Mouse Combo port (purple/green). This port is for a PS/2 keyboard
or PS/2 mouse.
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
6 7 3 4 2
15 13 12
8 5 9
10 11
1
16 14
3. Onboard Bluetooth module. This onboard Bluetooth module allows wireless
connection and data transfer between your system and other Bluetooth devices.
• Under Windows ® 7 OS, to achieve the complete Bluetooth functions, download the latest
Bluetooth driver from the ASUS support wedsite at http://support.asus.com.
• Bluetooth Electrical Specification:
Bluetooth specification V.2.1 compliant;
Transmission rate up to 3 Mbps;
Working distance up to 10 meters;
Intergrated 32-bit CPU with 32KB data RAM and 256KB program RAM;
5V single supply voltage.
• Under Windows ® XP, if the Bluetooth Driver item is not displayed on the Support DVD’s
Drivers screen, follow the steps below:
1. Shut down your computer and switch off the Power Supply Unit (PSU).
2. Switch on the PSU and boot up your computer.
3. Open the Support DVD and click ASUS InstAll.
4. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are for USB
2.0/1.1 devices.
5. WLAN antenna ports. These ports connect to the WLAN antennas.
6. Optical S/PDIF output port. This port connects to an external audio output device via
an optical S/PDIF cable.
