Motherboard Settings
4) Voltage Regulator Output Setting (VID1, VID2, VID3, VID4)
This jumpers allow you to manually adjust the CPU core voltage. It is
recommended to use CPU Default as the CPU core voltage. CPU Default means
the Vcore is generated according to the CPU VID configuration. For each jumper
setting, there are two voltage options, depending on the CPU used.

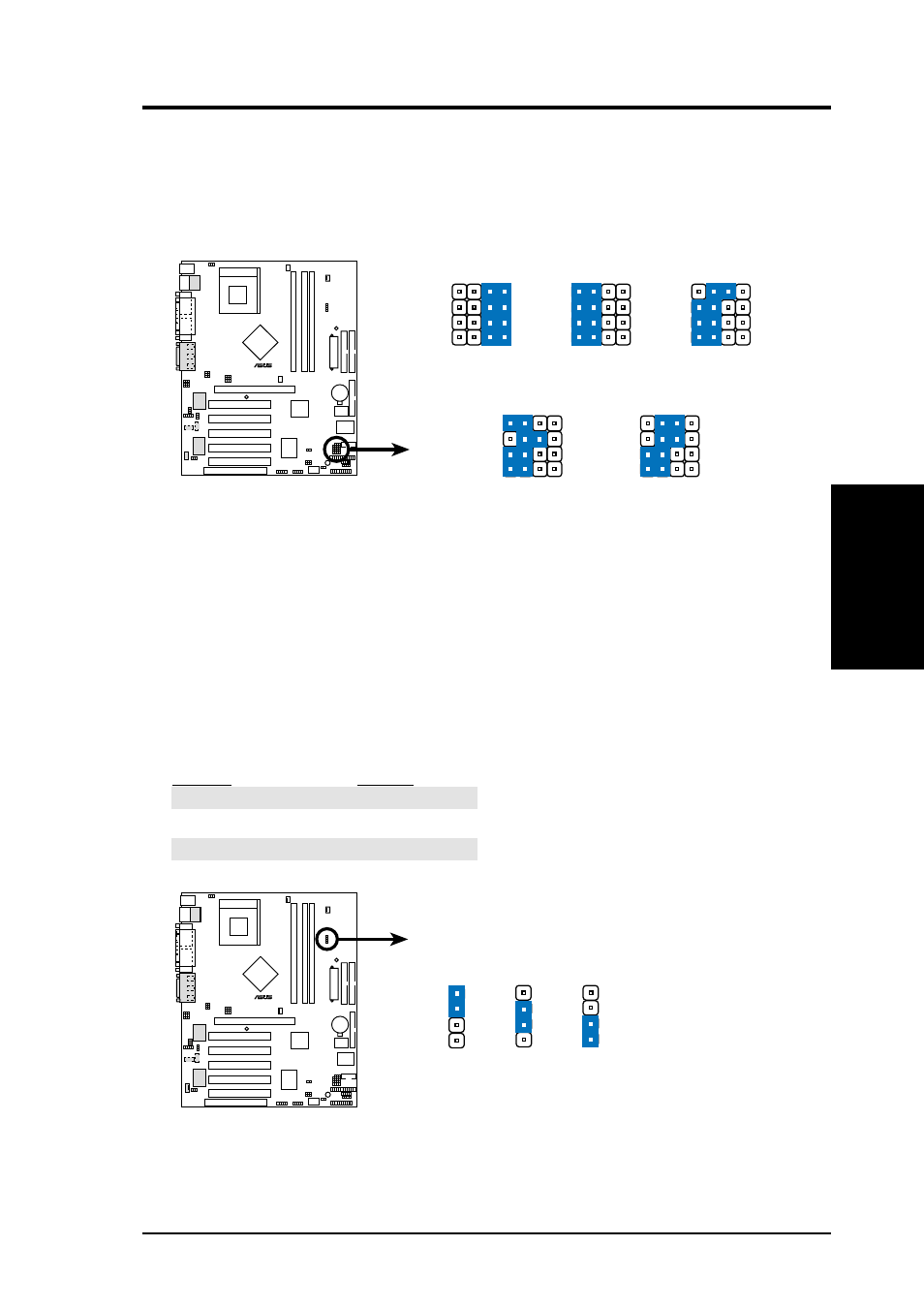

A7N266
0 1 0 1 0 1
®
A7N266 CPU Core Voltage
Selection
1.70/1.675Volts
VID3
VID2
VID4
VID1
1 2 3 4
1.75/1.725Volts
VID3
VID2
VID4
VID1
1 2 3 4
(CPU Default)
VID3
VID2
VID4
VID1
1 2 3 4
1.85/1.825Volts
VID3
VID2
VID4
VID1
1 2 3 4
1.80/1.775Volts
VID3
VID2
VID4
VID1
1 2 3 4
A7N266
0 1 0 1 0 1
®
A7N266 VDDR Setting
VDDR
1
2
2
3
3
4
2.5V
(Default)
2.6V 2.7V
5) DDR Voltage Setting (VDDR)
This jumper controls the voltage output to the DDR memory DRAMS. Less
strain is placed on components at lower voltage settings.
Setting VDDR
2.7V [1-2]
2.6V [2-3] (default)
2.5V [3-4]
