Motherboard Settings

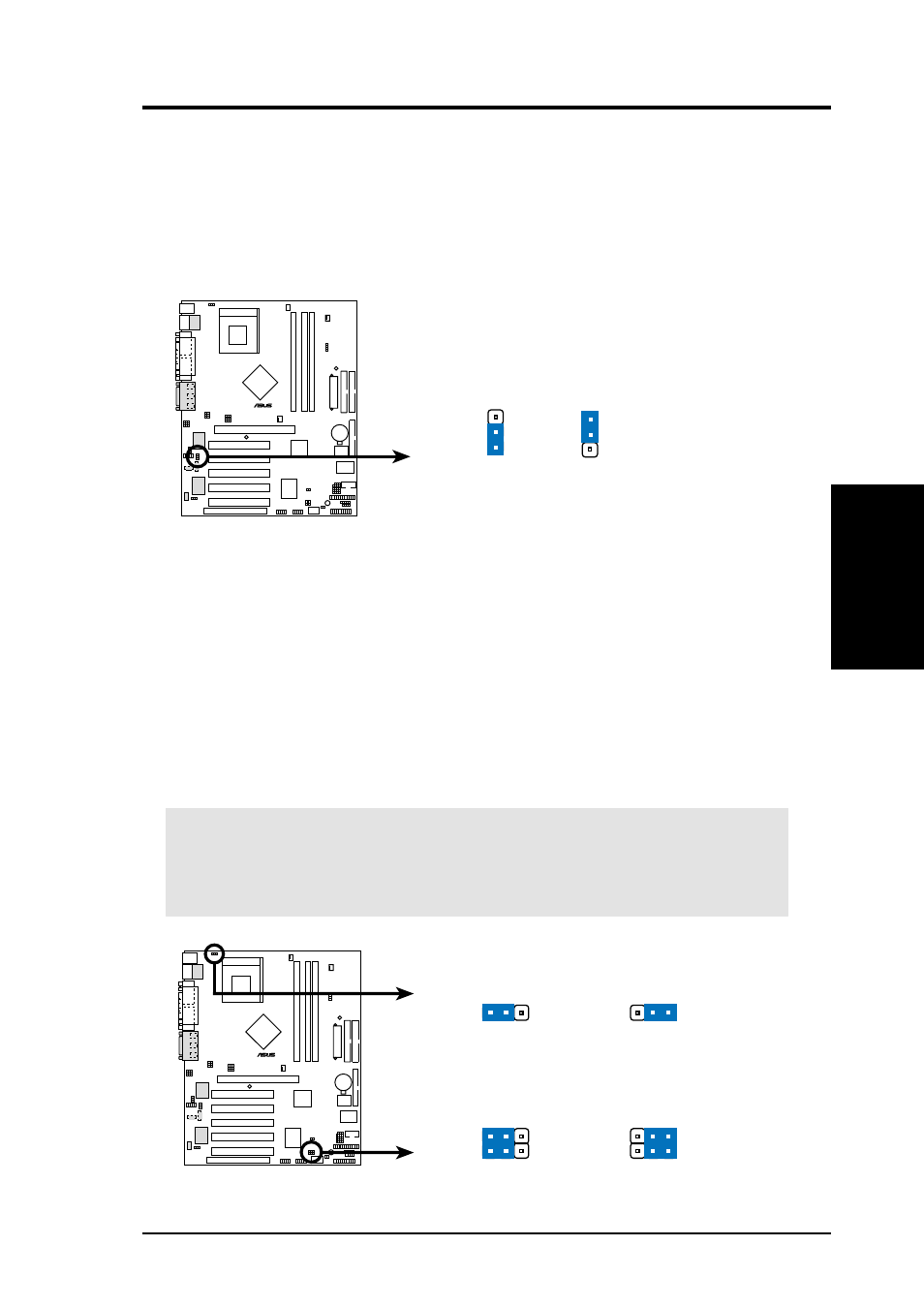

8) Onboard Audio Setting (AUD-EN) (Audio Models only)
The onboard 6 channel audio chip functions as the primary audio circuit, and
may be enabled or disabled with this jumper. The default setting, [1-2], enables
the onboard audio chip. Reset the jumper to [2-3], disabling the onboard Audio
chip, if using a PCI audio card, or if a primary audio Advanced Communications
Riser card is used in the ACR slot. (See page 29, 3.7.3, ACR Slot)
A7N266
0 1 0 1 0 1
®
A7N266 Audio Codec Setting
AUD_EN
Enable
(Default)
Disable
2
3
1
2
9) USB Device Wake-up (USB01PWR / USB23PWR / USB45PWR)
Set these jumpers to +5V to allow wake up from the S1 sleep state (CPU stopped;
RAM refreshed; system running in low power mode). Set to +5VSB to allow
wake up from other sleep states. The default setting for the three jumpers is
[1-2] to select +5V, since not all computers have the appropriate power supply.
NOTE: This feature requires an ATX power supply that can supply at least 2A
on the +5VSB lead when these jumpers are set to +5VSB. Otherwise, the system
does not power up. The total current consumed must NOT exceed the power
supply capability (+5VSB) for normal working conditions or in sleep mode.
A7N266
0 1 0 1 0 1
®
A7N266 USB Device Wake Up
USBPWR45
USBPWR23
USBPWR01
+5VSB
2 3
+5V
(Default)
1 2
+5V
1 2
(Default)
+5VSB
2 3
