ASUS A7N266 User’s Manual

3. HARDWARE SETUP

Connectors

3. H/W SETUP

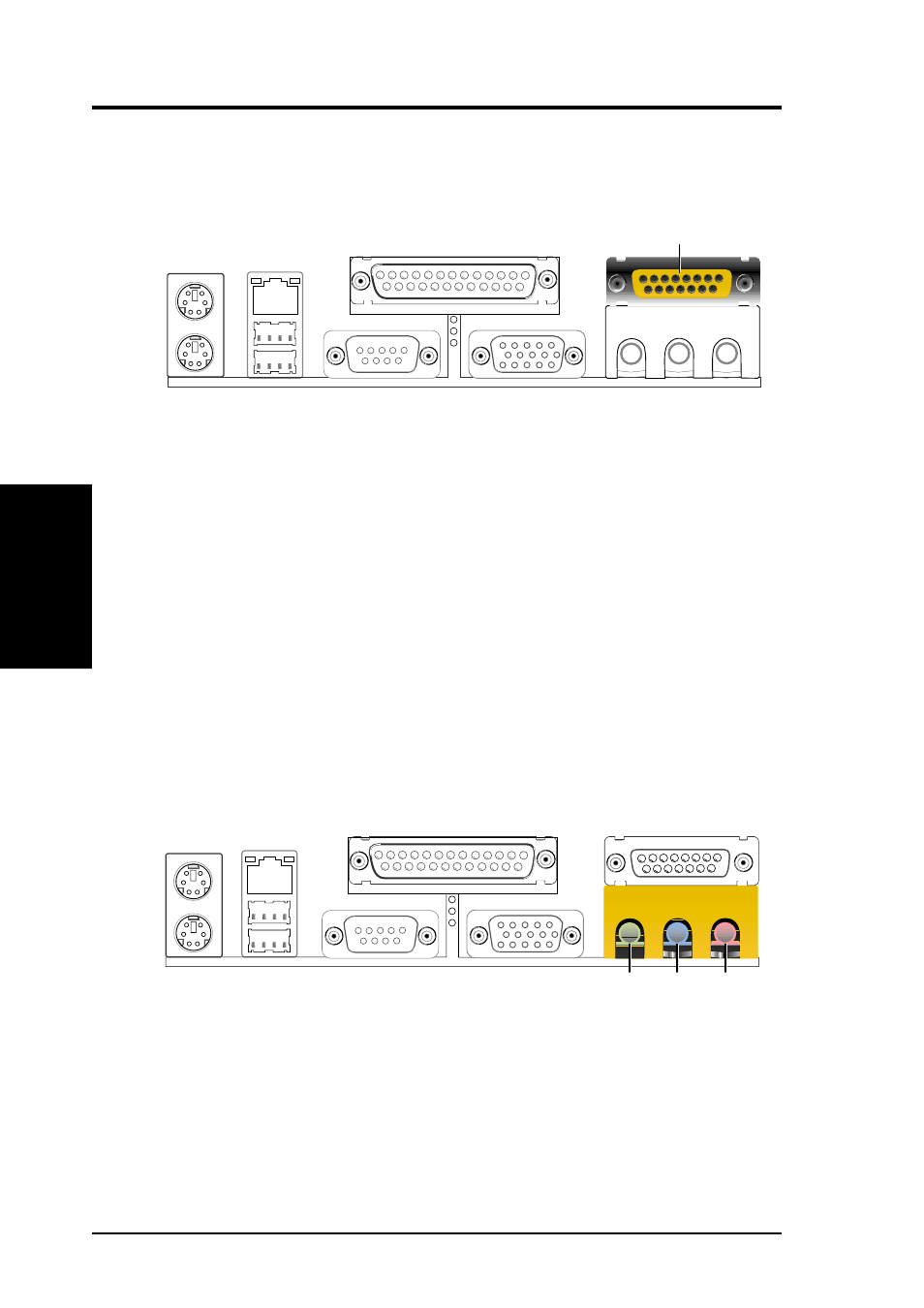

8) Game/MIDI Ports (Gold 15-pin GAME_AUDIO) (optional)

This connector supports a joystick or a game pad for playing games, and MIDI
devices for playing or editing audio files.

9) Audio Connectors (Three 1/8” AUDIO) (optional)

The Line Out (lime) connects headphone or speakers. Line In (light blue)
connects a tape players or other input sources. The Mic (pink) connects
microphones. NOTE: Refer to page 91 for more information about configuring
these connectors to 6-channel mode.

Game/MIDI (15-pin female)

Mic

Line In

Line Out

1/8" Stereo Audio Connectors
