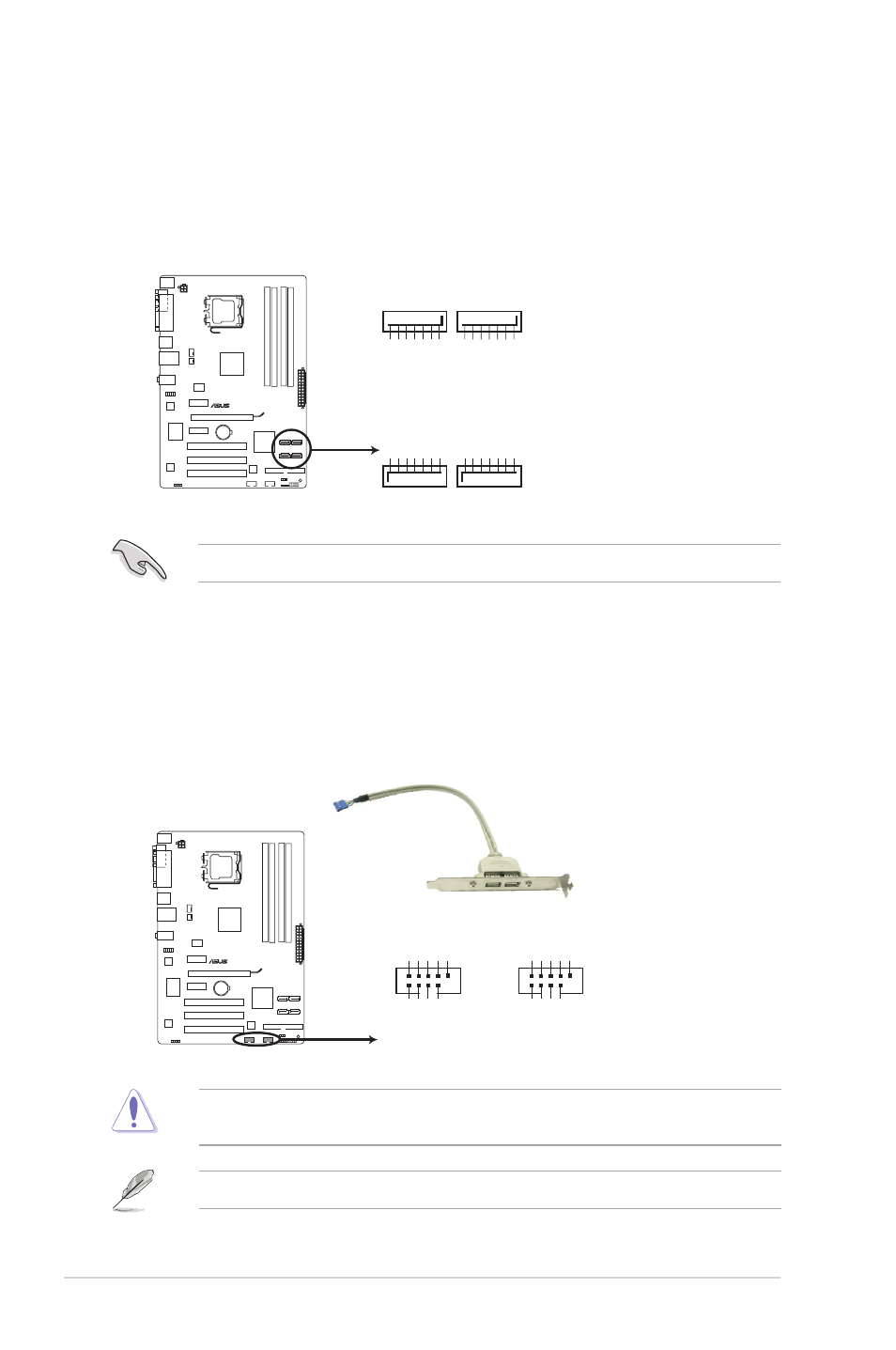

4. Serial ATA connectors (7-pin SATA1-4)
These connectors are for the Serial ATA signal cables for Serial ATA 3Gb/s hard disk
and optical disk drives. The Serial ATA 3Gb/s is backward compatible with Serial ATA
1.5Gb/s specification. The data transfer rate of the Serial ATA 3Gb/s is faster than the
standard parallel ATA with 133 MB/s (Ultra DMA133).
SATA3 SATA4
GN
D
RSATA_RXP3 RSATA_RXN3 GN
D
RSATA_TXP3 RSATA_TXN3 GN
D
GN
D
RSATA_RXP4 RSATA_RXN4 GN
D
RSATA_TXP4 RSATA_TXN4 GN
D
SATA1
GN
D
RSATA_TXN1 RSATA_TXP1
GN
D
RSATA_RXN1 RSATA_RXP1
GN
D
SATA2
GN
D
RSATA_TXN2 RSATA_TXP2
GN
D
RSATA_RXN2 RSATA_RXP2
GN
D
P5P41C
P5P41C SATA connectors
Install the Windows ® XP Service Pack 2 or later version before using Serial ATA.
5. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specification that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module cable is purchased separately.
P5P41C
P5P41C USB2.0 connectors
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
USB56
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
USB78
PIN 1
