Chapter 1: Product introduction
1.5.3

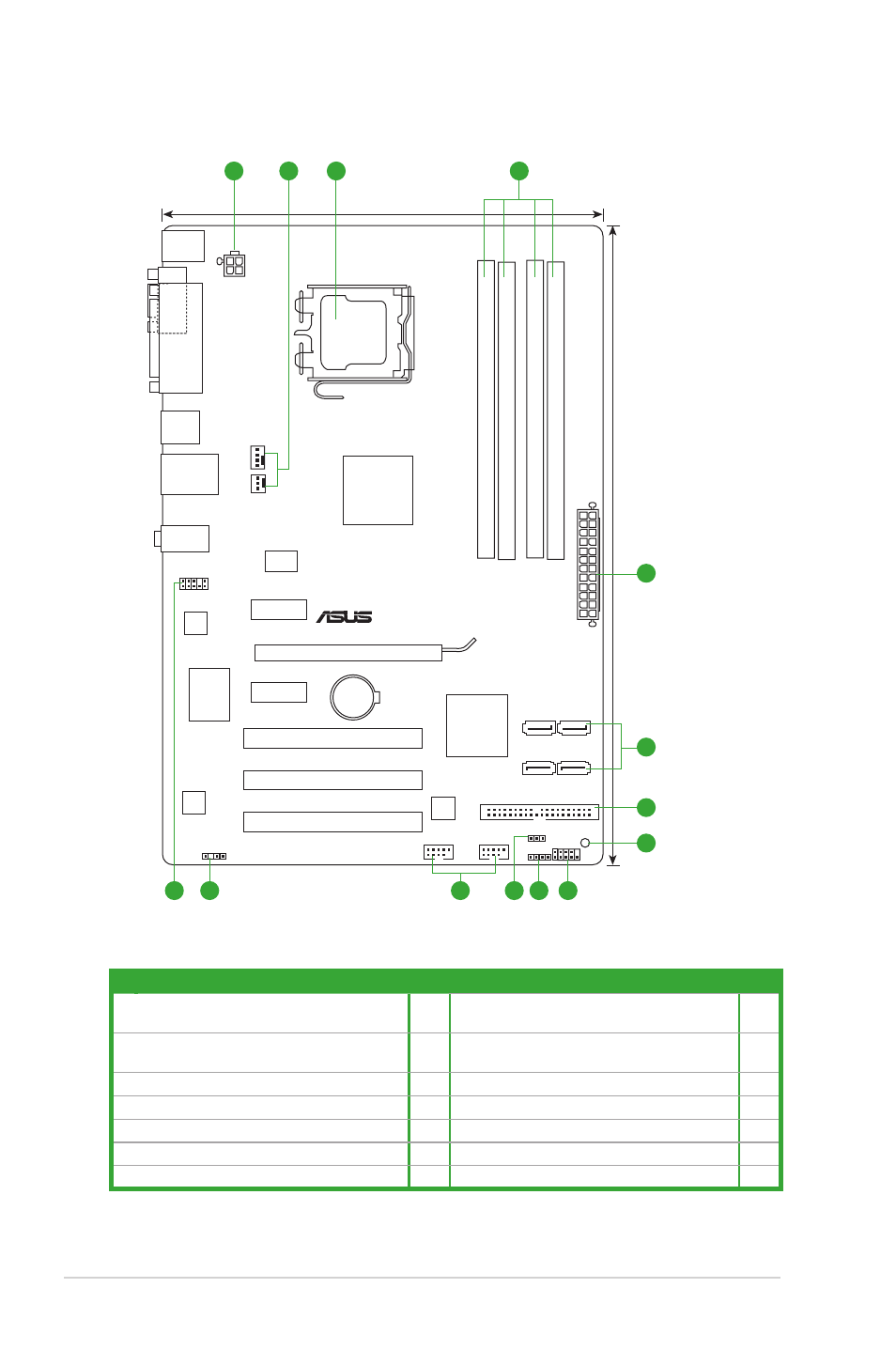

Motherboard layout
P5P41C
PCIEX16
PCIEX1_1
PCIEX1_2
PCI1
PCI3
PCI2
USB78
USB56
ATX12V
EATXPW
R
CHA_FAN
CPU_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
887
ICS
9LRS954
KBMS
8Mb
BIOS
SB_PWR
CLRTC
20.8cm(8.2in)
Intel
®
ICH7
Intel
®
G41
DDR3_A1 (64bit, 240-pin module
)
DDR2_A1 (64bit, 240-pin module)
DDR3_B1 (64bit, 240-pin module
)
DDR2_B1 (64bit, 240-pin module)
SATA1
SATA2
SATA3
SATA4
AUDIO
LPT
COM1
LAN1_USB12
USB34
30.5cm(12.0in)
PRI_IDE
LGA775
F_PANEL
SPEAKER
SPDIF_OUT
AAFP
RTL
8112L
2
3
1
4
5
1
9
8
10
11
13
12
6
7
1.5.4
Layout contents
Connectors/Jumpers/Slots/LED
Page
Connectors/Jumpers/Slots/LED
Page
1. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-25 8.
System panel connector (10-1 pin F_PANEL) 1-28
2. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-27 9.
Speaker connector (4-pin SPEAKER)
1-28
3. Intel LGA775 CPU socket
1-7
10. Clear RTC RAM (3-pin CLRTC)
1-21
4. DIMM slots
1-12 11. USB connectors (10-1 pin USB56, USB78)
1-26
5. Serial ATA connectors (7-pin SATA1-4)
1-26 12. Digital audio connector (4-1 pin SPDIF_OUT) 1-27
6. IDE connector (40-1 pin PRI_IDE)
1-24 13. Front panel audio connector (10-1 pin AAFP) 1-23
7. Onboard LED (SB_PWR)
1-4
