2-24 Chapter 2: Hardware information
2.7 Connectors

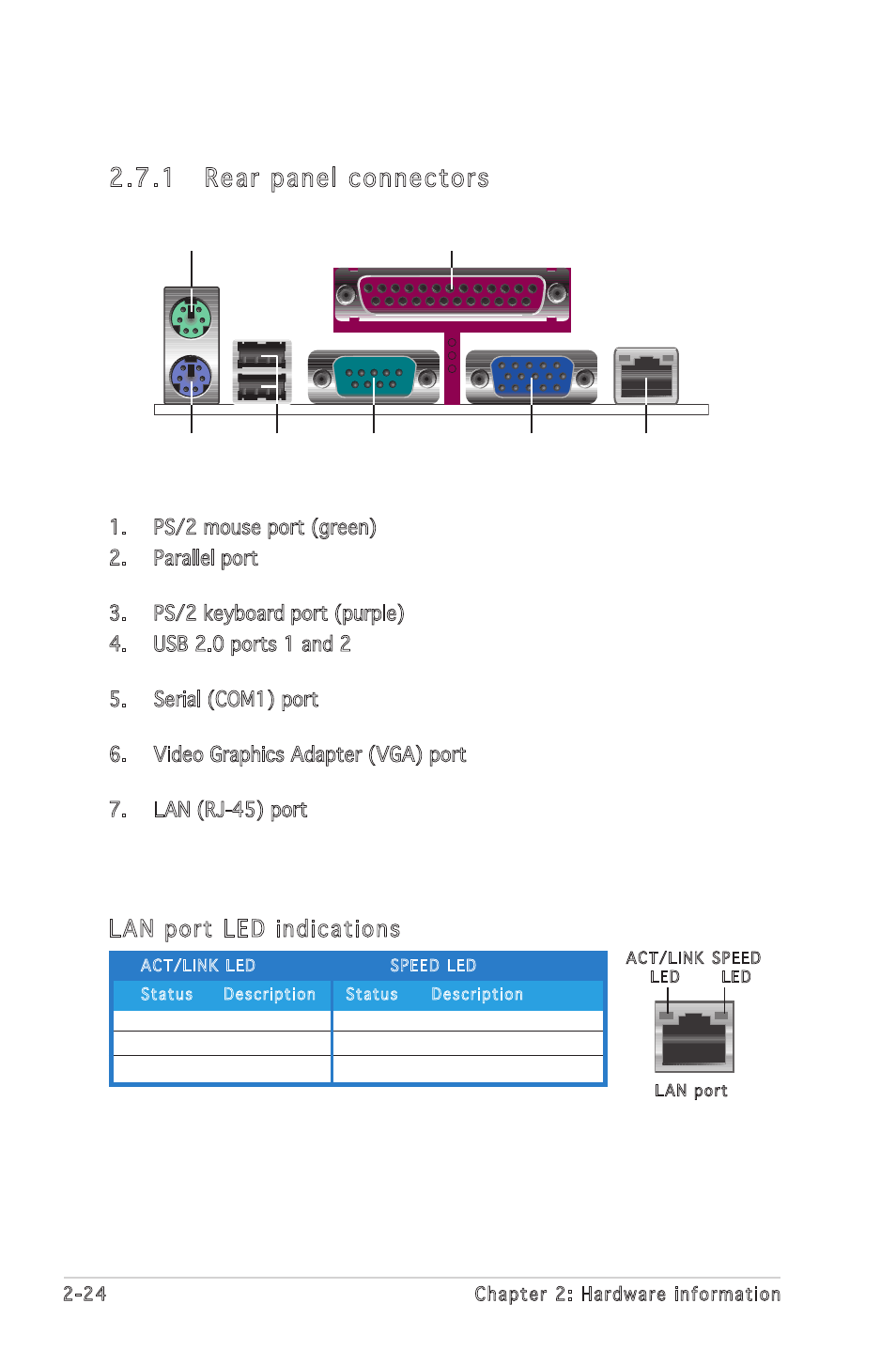

2.7.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
4. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
5. Serial (COM1) port. This 9-pin communication port is for pointing
devices or other serial devices.
6. Video Graphics Adapter (VGA) port. This port is for a VGA monitor or
other VGA-compatible devices.
7. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for
the LAN port LED indications.
1
3 6 5 7 4
2
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked RED 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
