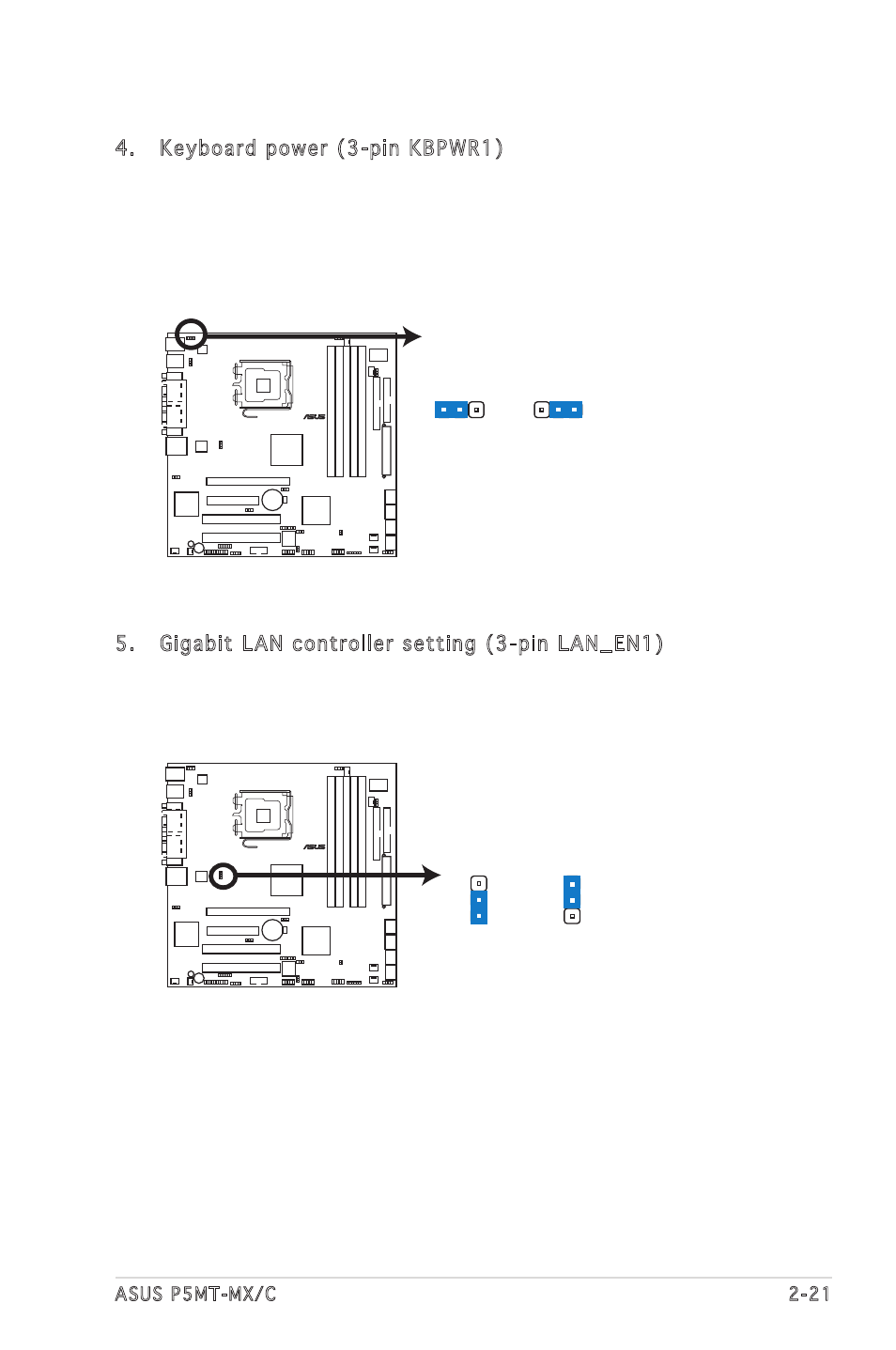

4. Keyboard power (3-pin KBPWR1)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) to wake up the computer
when you press a key on the keyboard (the default is the Space Bar).
This feature requires an ATX power supply that can supply at least 1A
on the +5VSB lead, and a corresponding setting in the BIOS.
5. Gigabit LAN controller setting (3-pin LAN_EN1)
This jumper allows you to enable or disable the onboard Broadcom
BCM5753 Gigabit LAN controller. Set to pins 1-2 to activate the
Gigabit LAN feature.
®
P
5
M
T
-M
X
/C
P5MT-MX/C Keyboard Power Setting
KBPWR1
(Default)
+5V +5VSB
2 3 1 2
P5MT-MX/C LAN_EN1 Setting
Enable
(Default)
Disable
LAN_EN1
2
1
2
3
®
