2.3 Motherboard rear and audio connections
2.3.1 Rear I/O connection
* and **: Refer to the tables on the next page for LAN port LEDs, and audio port definitions.

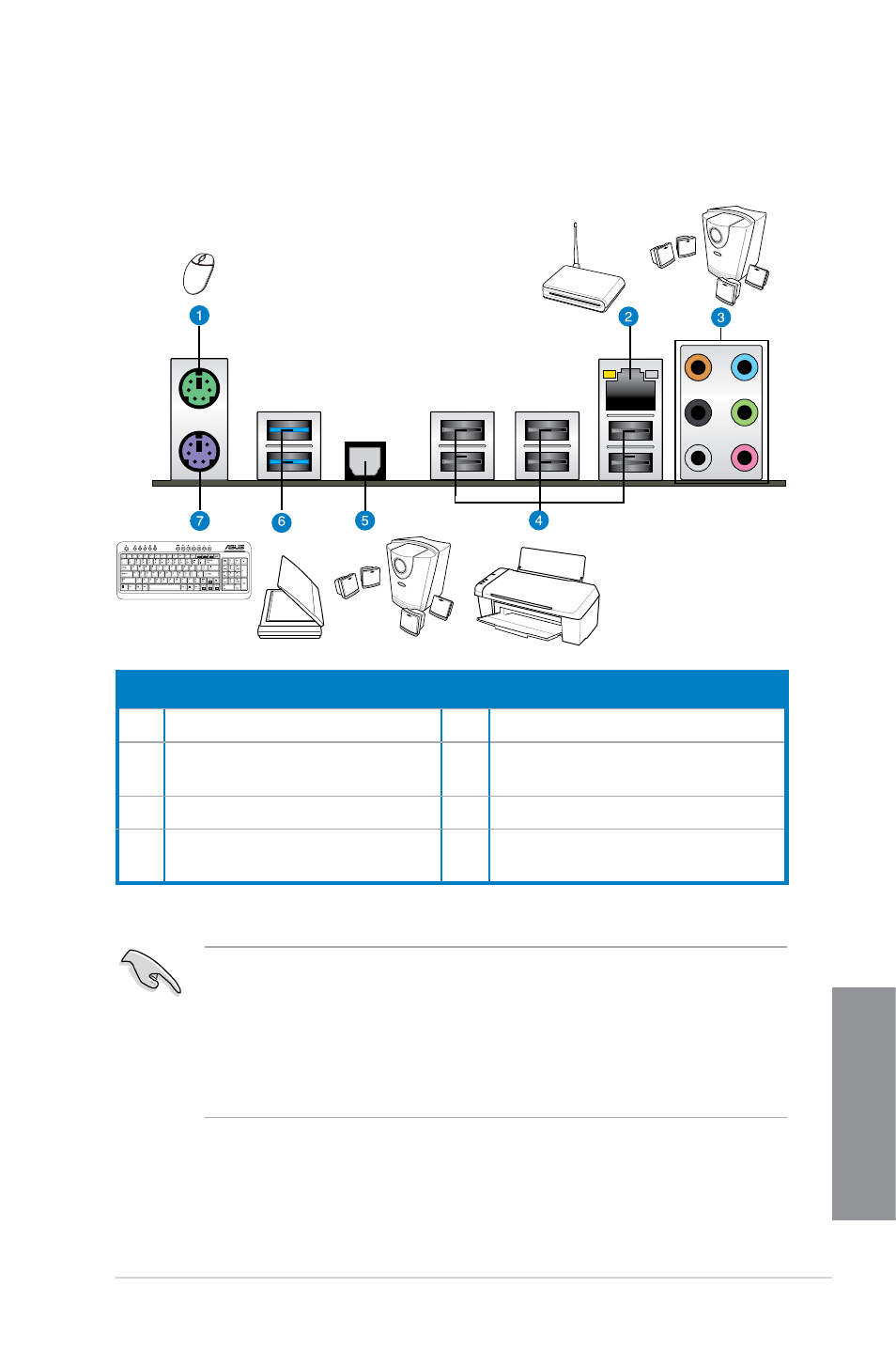

Rear panel connectors
1. PS/2 mouse port (green) 5. Optical S/PDIF Out port
2. LAN (RJ-45) port* 6.
USB 3.0 ports 1 and 2 support ASUS
USB 3.0 Boost UASP Mode.
3. Audio I/O ports** 7. PS/2 keyboard port (purple)
4.
USB 2.0 ports (USB 2.0 port1
supports USB BIOS Flashback)
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under
Windows ® OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance for your USB 3.0 devices.
• USB 2.0_1 port supports USB BIOS Flashback.
