2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.
1.2.8 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any

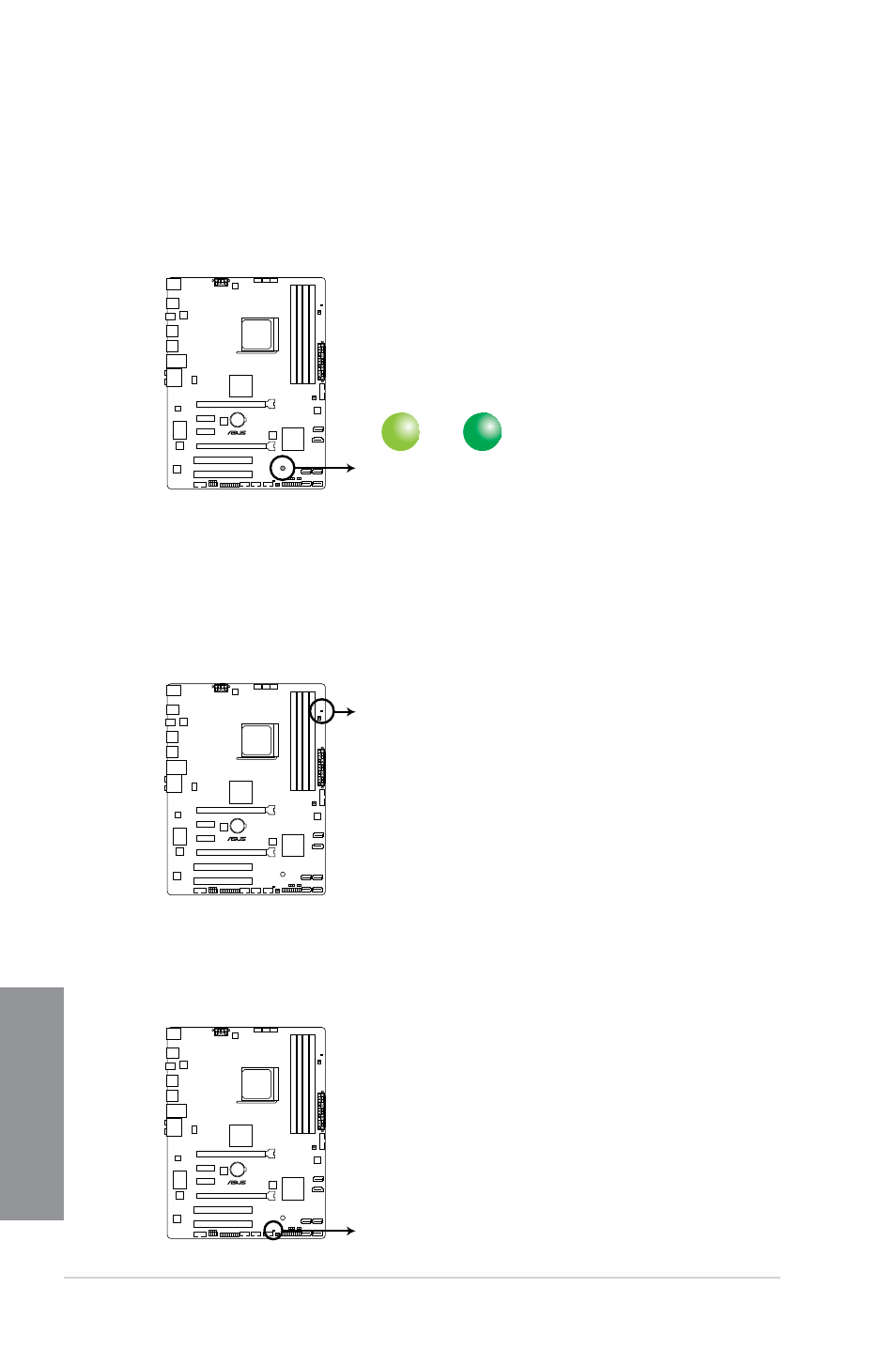

motherboard component. The illustration below shows the location of the onboard LED.
M5A97 R2.0
SB_PWR
ON
Standby Power Powered Off
OFF
M5A97 R2.0 Onboard LED
M5A97 R2.0
M5A97 R2.0 DRAM LED
DRAM LED
3. BIOS Flashback LED (FLBK_LED)
The FLBK LED lights when the USB Flashback button is pressed for three seconds.
M5A97 R2.0
M5A97 R2.0 FLBK LED
FLBK_LED
