6
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
VOLTAGE CONTROLLED (VCXO)
CRYSTAL CLOCK OSCILLATORS
-5.2Vdc & 5.0Vdc - 1kHz to 155.52MHz
Voltage Controlled (VCXO) (Revision E, August 2010 ) (ECO# 9940)
Q-TECH
CORPORATION
Environmental Specifications
Q-Tech Standard Screening/QCI (MIL-PRF55310) is available for all of our VCXO packages. Q-Tech can also customize screening
and test procedures to meet your specific requirements. The units are designed and processed to exceed the following test conditions:
Environmental Test Test Conditions
Temperature cycling MIL-STD-883, Method 1010, Cond. B
Constant acceleration MIL-STD-883, Method 2001, Cond. A, Y1
Seal: Fine and Gross Leak MIL-STD-883, Method 1014, Cond. A and C
Burn-in 160 hours, 125°C with load
Aging 30 days, 70°C, ± 1.5ppm max
Vibration sinusoidal MIL-STD-202, Method 204, Cond. D
Shock, non operating MIL-STD-202, Method 213, Cond. I
Thermal shock, non operating MIL-STD-202, Method 107, Cond. B
Ambient pressure, non operating MIL-STD-202, 105, Cond. C, 5 minutes dwell time minimum
Resistance to solder heat MIL-STD-202, Method 210, Cond. B or C
Moisture resistance MIL-STD-202, Method 106
Terminal strength MIL-STD-202, Method 211, Cond. C
Resistance to solvents MIL-STD-202, Method 215
Solderability MIL-STD-202, Method 208
ESD Classification MIL-STD-883, Method 3015, Class 1 HBM 0 to 1,999V
Moisture Sensitivity Level J-STD-020, MSL=1
Please contact Q-Tech for higher shock requirements

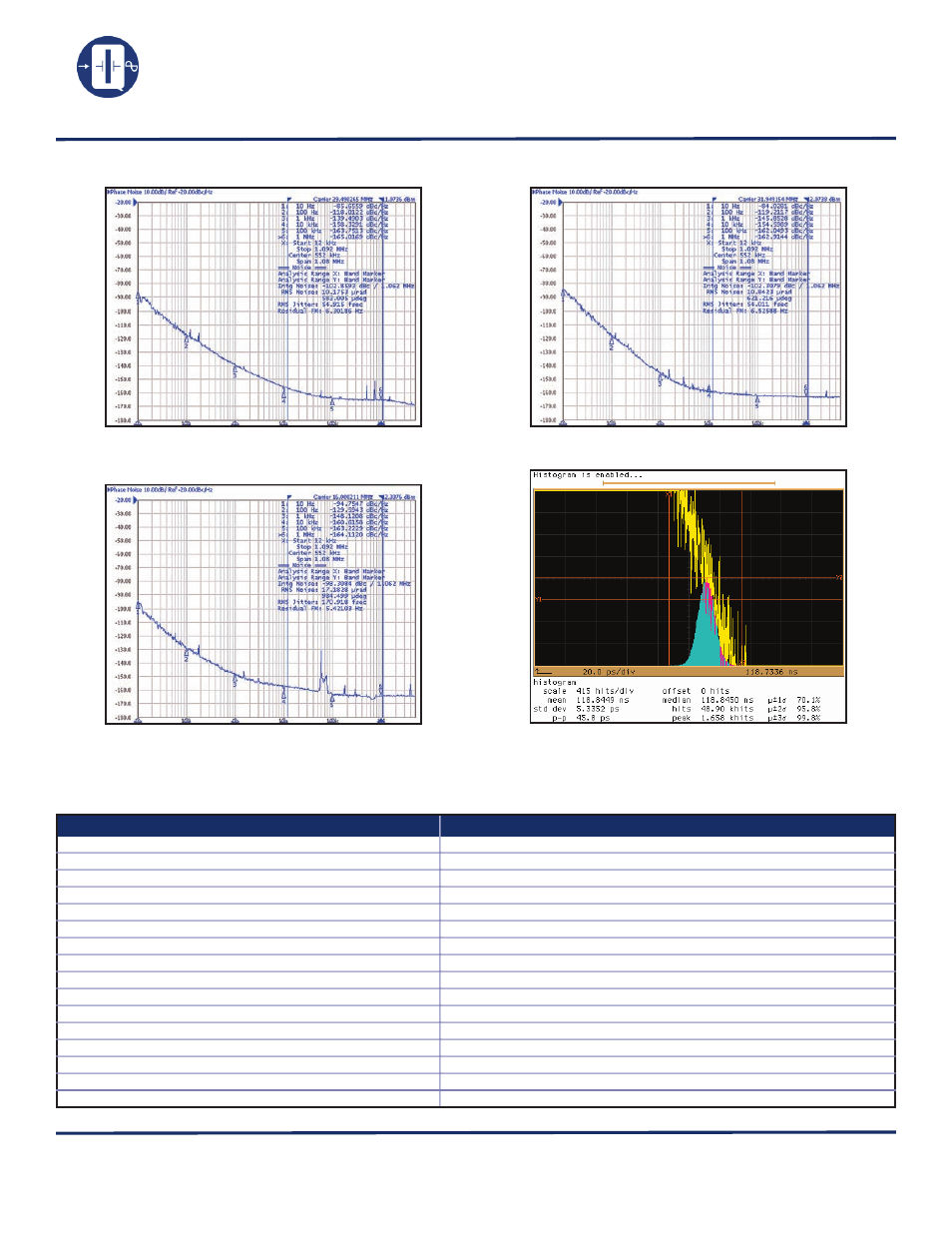

QT25VT, 29.5MHz
QT6VHC10M, 16MHz
QT50VAC, 31.9488MHz
QT25VT, 29.5MHz
Phase Noise and Phase Jitter Integration
Period Jitter
