QTV701 and QTV702 Square-
Wave
REV.
Q-TECH Corporation
10150 W. Jefferson Blvd.
Culver City, CA 90232
SIZE
A
CAGE NO.
51774
Sheet 8 of 8 1.0
Q-TECH
PART NUMBER
FREQUENCY
.300 MAX.
24X .200 MIN.
24X Ø .018 ± .002
1.100
1.280 MAX.
.600
.790 MAX.
22X .100
NON-ACCUMULATIVE
ESD SYMBOL
FOR PIN No. 1
USA
D/C S/N
1 12
24 13

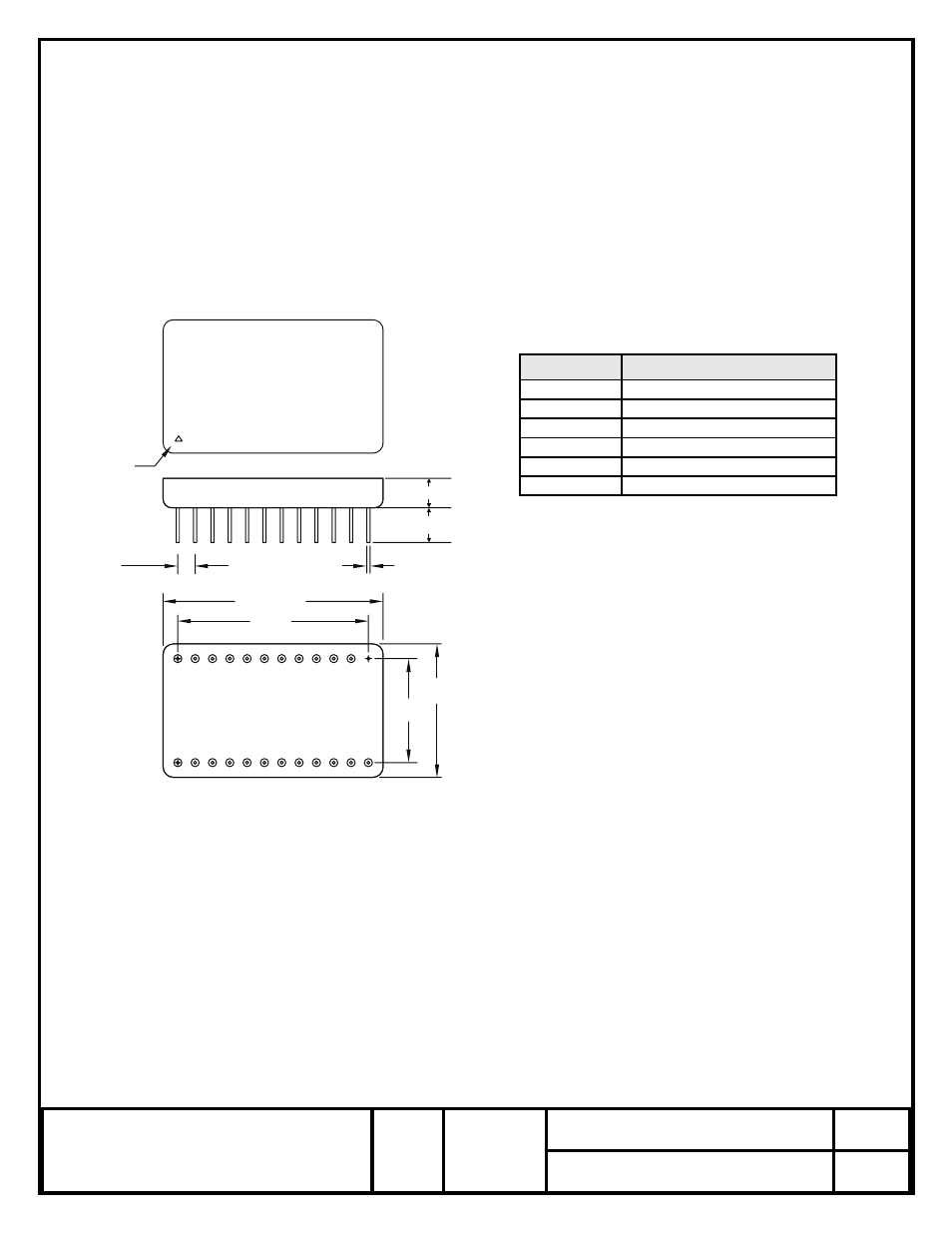

FIGURE 1 INTERFACE CONTROL DRAWING
24 Pin Double Dip
PIN NO. DESIGNATION
1 Voltage Control
2 - 11 NC
12 Ground/Case
13 RF Output
14 - 23 NC
24 Supply Voltage
NOTES:
•
Dimensions are in inches.
•
Lead numbers are for reference only and
are not marked on the unit.
•
A triangle symbol is marked on the corner
of the package to indicate Pin 1.
•
All pins with NC function may not be
connected as external tie or connections
(pins may be connected internally).
