QTV701 and QTV702 Square-
Wave
REV.
Q-TECH Corporation
10150 W. Jefferson Blvd.
Culver City, CA 90232
SIZE
A
CAGE NO.
51774
Sheet 7 of 8 1.0
FLUKE 8050A
COM mA
V
VOLT-
METER
.01
uF
.01
uF
.01
uF
VC
Vcc
DEVICE
UNDER
TEST OUT
GND
TEK2465B
OSCILLO-
SCOPE
VERT
SIGNAL
OUT
15
pF (including probes) common
HP6205C
POWER
SUPPLY
AMP-
METER
FREQ
COUNTER
HP53181A
▀
PART NUMBER GENERATION
SERIES
Output Type,
Supply Voltage,
Voltage Control SYMMETRY
TEMPERATURE RANGE (°C)/ Max. Overall
Stability/ Min. APR and
Level
FREQUENCY
(MHz)
1: HCMOS…5.0V
Vc=0.5..4.5 A:40%…60% N: 0.....+50°C
±25 ppm ±50 ppm
E: Eng. Model 2.000…90.000
(See note 1)
2: HCMOS.,,3.3V
Vc=0...3.3V T:(See note 2) P: 0.....+70°C
±35 ppm ±70 ppm
M: Flight Model
Q: 20…+70°C
±40 ppm ±80 ppm
R: 40…+85°C
±45 ppm ±90 ppm
U: -55.+125°C
±65 ppm ±130 ppm
QTV70:
24 Pin
Double
Dip
(See note 1 below)
1. Variations from standard specification are available, please contact factory.
2. 45/55 Symmetry Contact factory for options available.
EXAMPLE:
QTV702AURM-50.000000 would be a Flight Model version VCXO, 24 pin Double Dip, HCMOS 3.3 volts, 40/60
symmetry, overall frequency stability (including Operating Temperature, ±5% Load Change, ±5% Supply Voltage change,
10 year aging, and radiation)±45 ppm over -40…+85°C, @ 50 MHz with frequency pulling range from minimum of 90 ppm
below center frequency at 0V to a minimum of 90 ppm above center frequency at 3.3V.
QTV702AURE-50.000000 would be an Engineering Model version VCXO, 24 pin Double Dip, HCMOS 3.3 volts, 40/60
symmetry, overall frequency stability (including Operating Temperature, ±5% Load Change, ±5% Supply Voltage change,
10 year aging, and radiation)±±45 ppm over -40…+85°C, @ 50 MHz with frequency pulling range from minimum of 90
ppm below center frequency at 0V to a minimum of 90 ppm above center frequency at 3.3V.


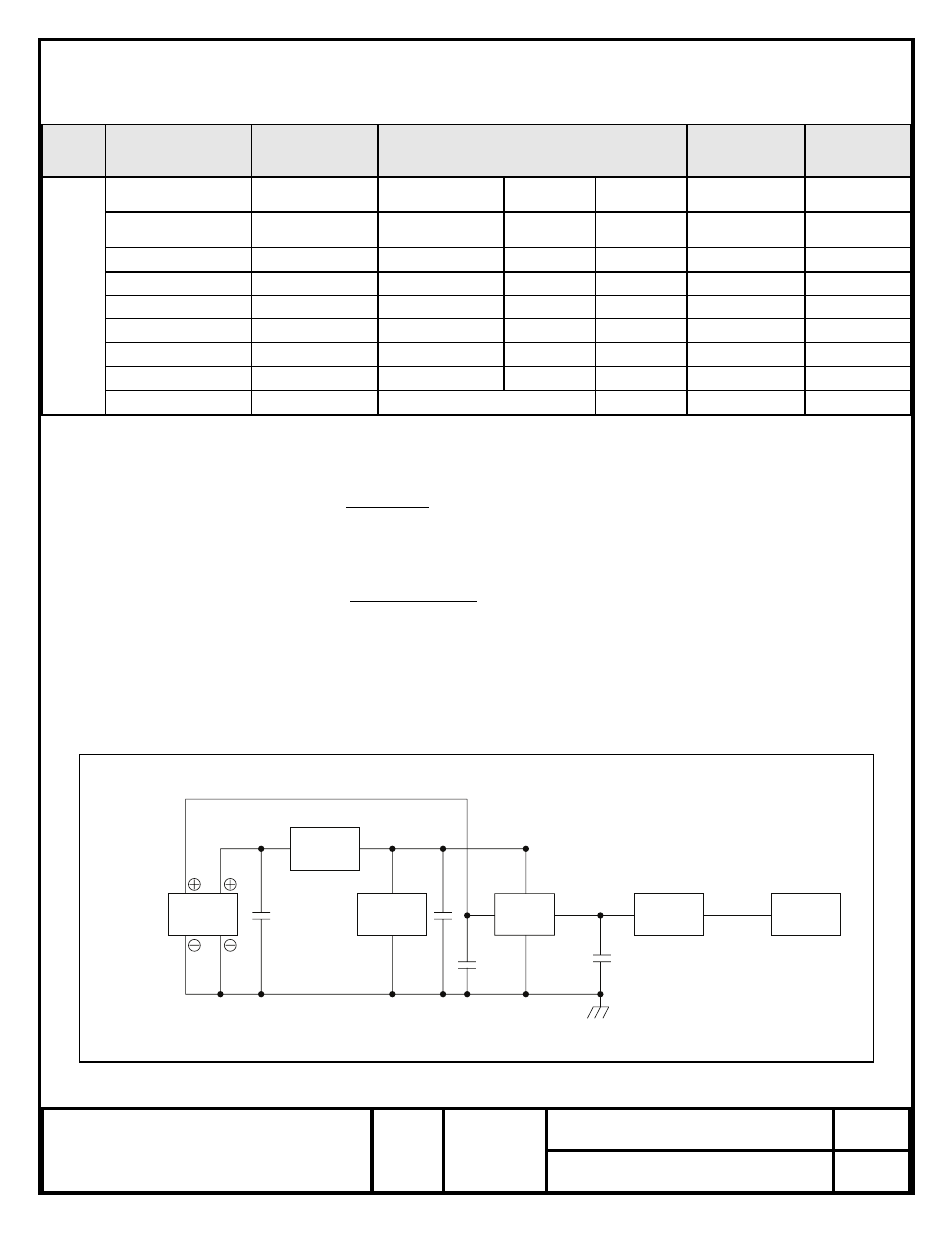

RECOMMENDED ELECTRICAL TEST DIAGRAM
