Pro Series 51169 51 Receiver - Manual

Installation Instructions
TOYOTA MATRIX
PONTIAC VIBE
Part Numbers:
51169
Hitch Shown In Proper Position
Wiring Access Location: SUV3, SUV4
Equipment Required:
Wrenches: 19mm
Drill Bits: NONE

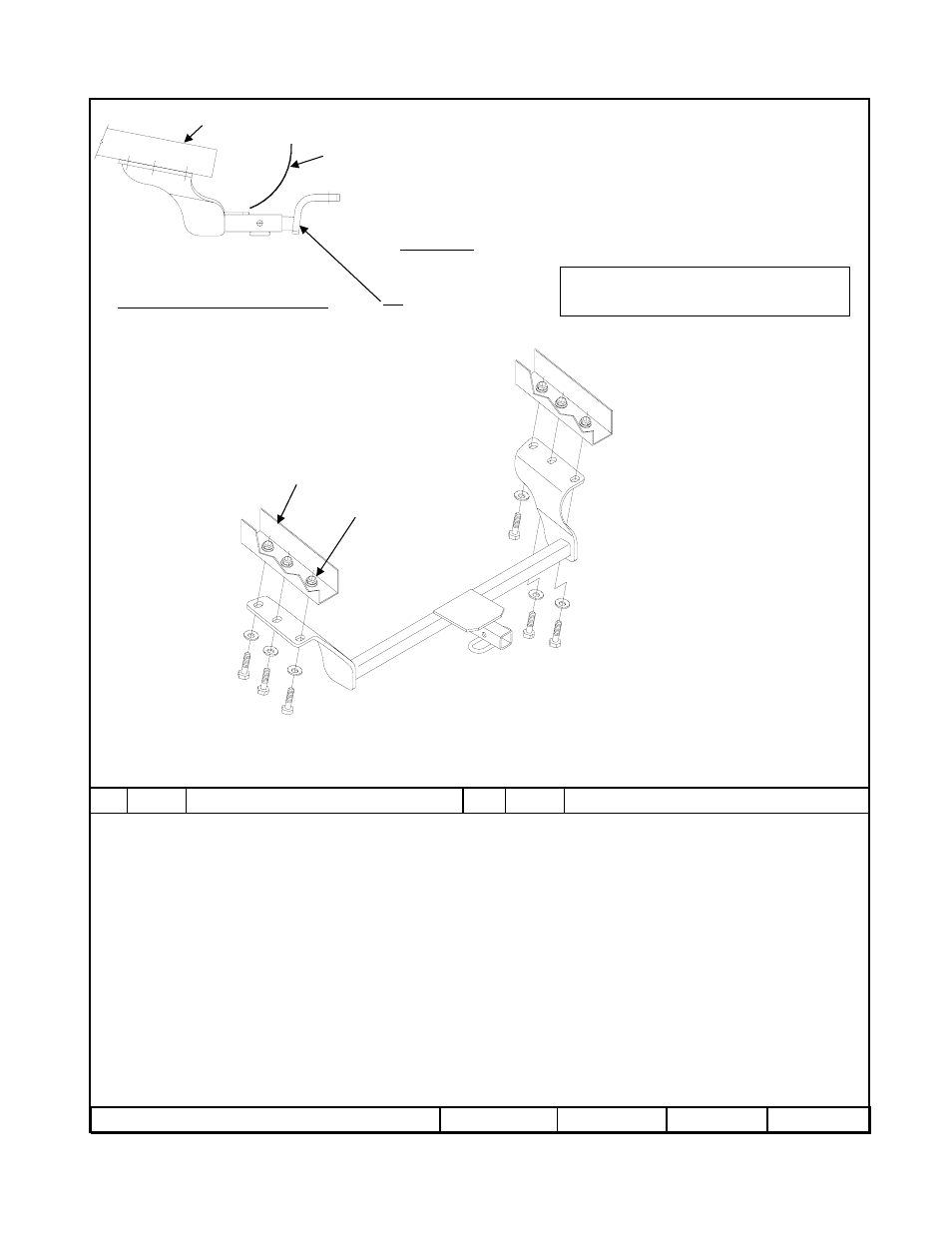

1. Raise hitch into position.
2. Install fasteners into existing weldnuts as shown above.
Rev. A 8-25-09 51169N Sheet 1 of 3 z 2009 Cequent Performance Products
Conical Washer 1/2” Qty. (6) 2 Bolt M12 x 1.25 x 40mm CL10.9 Qty. (6) 1
Tighten all M12 CL 10.9 fasteners with torque wrench to 92 Lb.-Ft. (125 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
2000 LB (908 Kg) Max Gross Trailer Weight
200 LB (91 Kg) Max Tongue Weight
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Drawbar must be used in the
rise position only.
Drawbar Kit:
3593
Fastener Kit: 51169F
Form F206 Rev A 5605
1
2
Frame rails
Frame rails
Existing weld nuts,
Typical both sides
Fascia
Note: Fasteners typical both sides
Note: Toyota Matrix XRS & XR Sport models have added center fascia that must be removed for hitch installation.
