ITEM: 63138
DESCRIPTION: Q-Slot 4 Bike Rack
Assembly Instructions:
1.
Attach the 1-1/4” Shank to Support Tube Assembly using (2) 3/8” carriage bolts and (2) 3/8” hex lock nuts (Figure 3).
2. Install Support Tube Assembly with 1-1/4” Shank the 2” Shank Assembly. Line up the threads in shank with hole in 2” shank
and install the ½” anti-rattle pin. Tighten ½” pin and install clip (Figure 4).
3. Rotate side tubes to the horizontal position. Lock side tubes in position with bail pins as illustrated. (Figure 5 & 6)
4. Slide (8) Wheel Cradle assemblies (4 per tube assembly) on side tubes as illustrated. (Figure 6)
5. Slide (4) Frame Hook assemblies (2 per tube assembly) on center tubes as illustrated. (Figure 6)

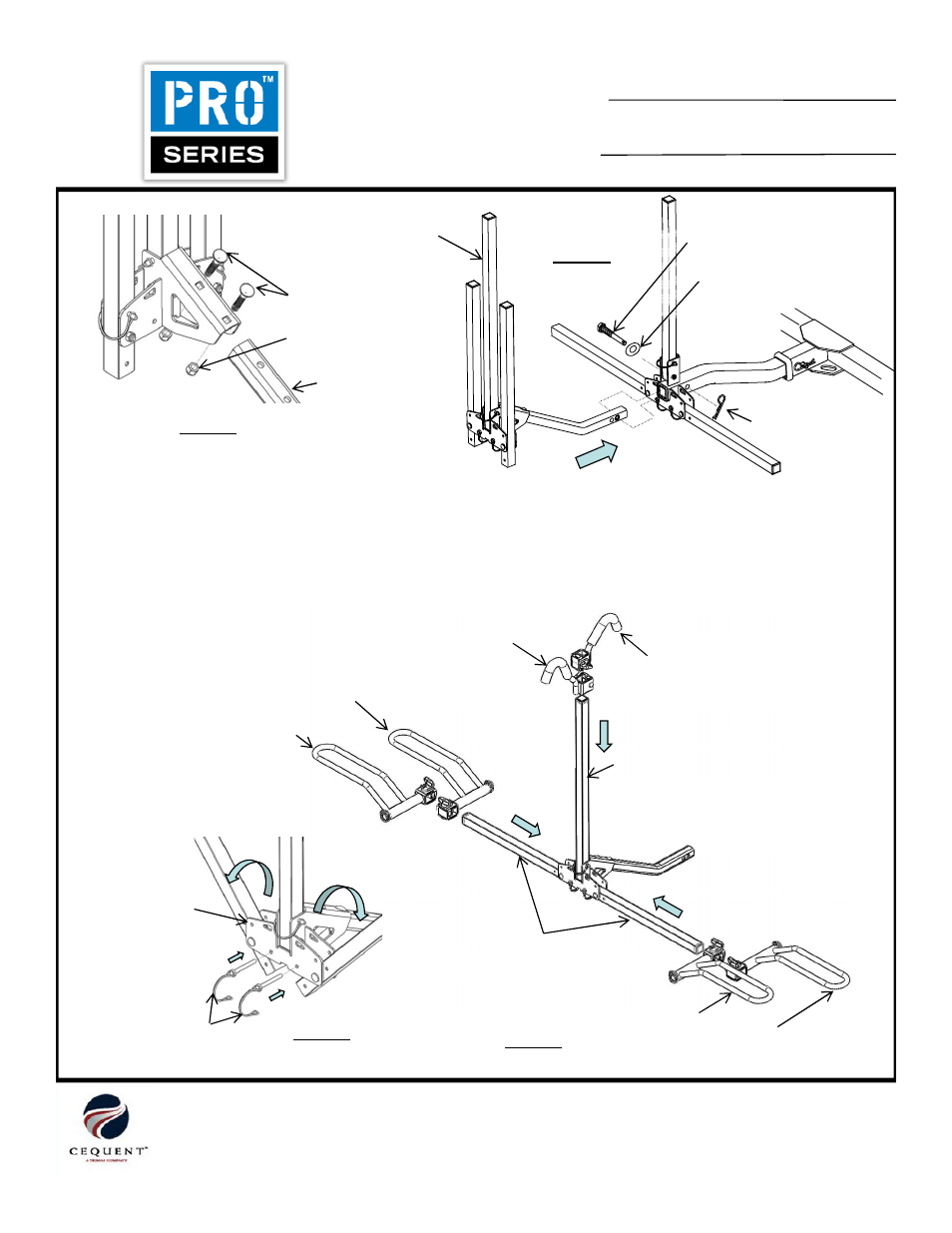

FIGURE 3
3/8” Nylon Lock Nut
3/8” Carriage Bolt
1/2” Flat Washer
1/2” Anti-Rattle Pin
FIGURE 4
1-1/4” Shank
Support Tube Assembly
Pin Clip
Cequent Performance Products, Inc.
Plymouth, MI 48170
Technical Service: (888) 521-0510
63138N Rev D 6-29-12
Page 2 of 15
Support Tube
Assembly
Frame Hook - Long
Frame Hook - Short
Bail Pin LH Wheel Cradle
RH Wheel Cradle
RH Wheel Cradle
LH Wheel Cradle
FIGURE 5
FIGURE 6
Center Tube
Side Tube
