Pro Series 44027 51 Receiver - Manual (Page 2)

Pre-1992 Models – see Figure 3 (Does Not Fit E-350 or 124” Wheelbase)
** Note: 1992 and later vehicle with factory step bumpers require 12” long ball mount or weight distributing shank
Note: On some models, tail pipe and/or tail pipe bracket may have to be relocated and/or modified.
1. If present, lower carbon canister from driver’s side frame rail.
2. Remove all but a thin layer of undercoating from attaching surfaces.
3. Center receiver on vehicle so crossmember frame rivet will fit into step in side bracket.
4. Using hitch as a template, drill three (3) holes per side through frame with 1/2” drill bit.
5. Install fasteners as shown.
6. Reattach carbon canister if present – carbon canister must not contact bolt head. If it does loosen canister fasteners and reposition the
canister to ensure clearance with bolt head.
Tighten all 1/2-13 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
Rev. A 6-27-06 N51007 Sheet 2 of 2 z 2001, 2002, 2006 Cequent Towing Products
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Carbon Canister
if equipped
1
2
5
4
3
7
6
6
8
9
Crossmember
Hole to be drilled in vehicle frame-each
side. Be careful not to drill into Carbon
Canister
Existing hole in frame

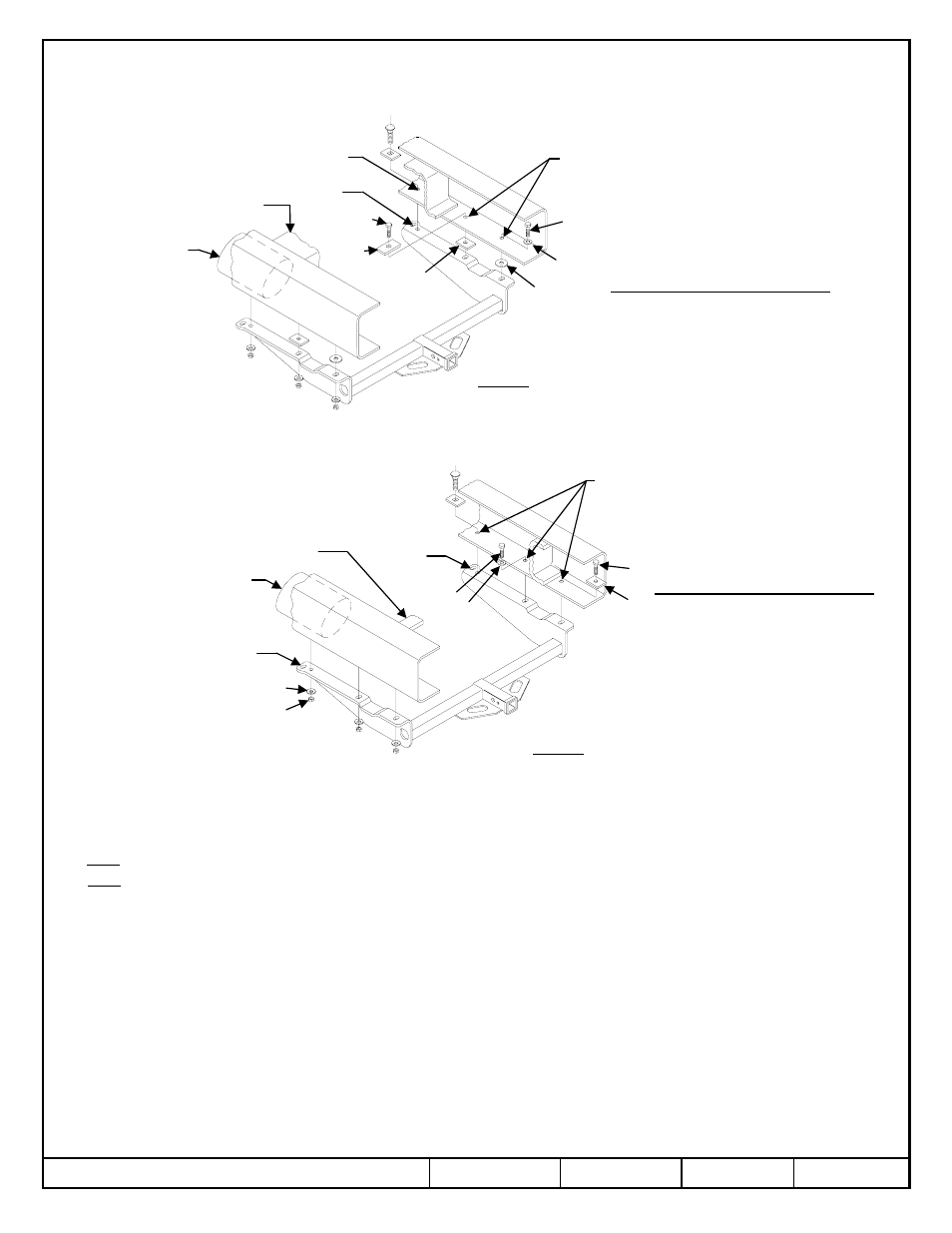

Figure 2.
1992 and Later E-350 Models
*
Carbon Canister
if equipped
1
2
5
4
6
8
Crossmember
Holes to be drilled in vehicle frame – 3
places each side. Be careful not to drill
into Carbon Canister
* Depending on vehicle configuration,
forward hole may line up with existing
hole in frame – use same fastener
combination
Figure 3.
Pre-1992 Models Except
E-350 & 124” Wheelbase
*
6
3
*
44027
51007
Part Numbers:
Fasteners typical both sides
Fasteners typical both sides
Form: F205 Rev A 5-6-05
