Billet Specialties Premium Tru Trac Serpentine System - Small Block Ford - Manual (Page 3)

x3
x1
x1
x2 x5
x2
x5 x1
x1
x2 x2
x3

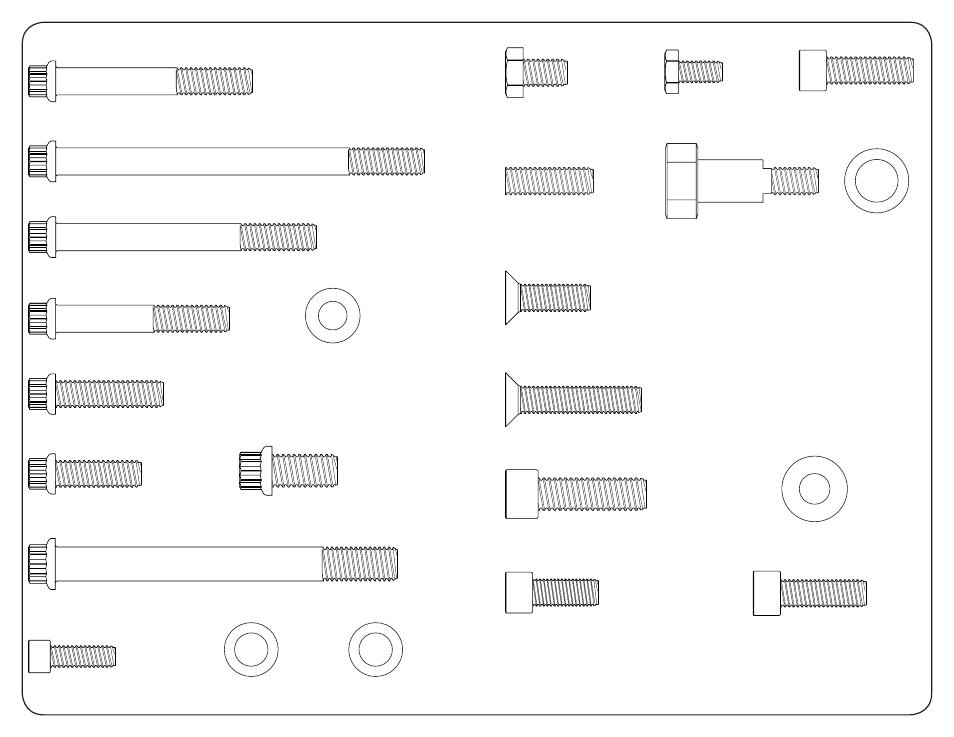

5/16-18 x 2-1/4” - 12pt. Cap Screw
(Water Pump & Timing Marker)
x2
x2
x1 x1 x1
x1
x1
x4
x4
x4
x2 x1
1/4-20 x 1/2”
Hex Head Cap Screw
(Oil Pan)
5/16-18 x 1/2”
Hex Head Cap Screw
(Oil Pan)
5/16-18 x 1”
Socket Head Cap Screw
(Timing Cover To Spacer Nut)
5/16-18 x 1” Socket Set Screw
(To Tensioner Spacer)
8mm-1.25 x 25mm - Flat Socket Cap Screw
(Bridge Bracket)
8mm-1.25 x 40mm - Flat Socket Cap Screw
(Bridge Bracket)
3/8-16 x 1-1/4” - Socket Head Cap Screw
(Crankshaft Pulley)
5/16-24 x 3/4”
Socket Head Cap Screw
(Water Pump Pulley)
8mm-1.25 x 25mm
Socket Head Cap Screw
(A/C Compressor Manifold)
Compressor Shoulder Bolt
(A/C Compressor)
1/2” Flat Washer
(Shoulder Bolt)
3/8” Belleville Washer
(Crankshaft Pulley)
5/16-18 x 4-1/4” - 12pt. Cap Screw
(Water Pump)
5/16-18 x 3” - 12pt. Cap Screw
(Water Pump)
5/16-18 x 2” - 12pt. Cap Screw
(Timing Cover & Timing Marker)
5/16-18 x 1-1/4” - 12pt. Cap Screw
(Water Pump)
8mm-1.25 x 25mm
12pt. Cap Screw
(Bridge Bracket)
3/8-16 x 3/4” - 12pt. Cap Screw
(Tensioner Pulley)
5/16” Flat Washer
(Water Pump)
10mm x .5mm
Shim Washer
(Alternator)
10mm x 1mm
Shim Washer
(Alternator)
1/4-20 x 3/4” - Socket
Head Cap Screw
(Compressor Cover)
10mm-1.5 x 100mm - 12pt. Cap Screw
(Alternator)
Other Hardware / Gaskets
Oil Pan Corner Gaskets & Oil Pan End Seal
Goodyear Poly-V Serpentine Belt - 62” #4060620 (with power steering)
Goodyear Poly-V Serpentine Belt - 60.5” #4060605 (without power steering)
Skin Board #3 - Packaged In Main Box
