25

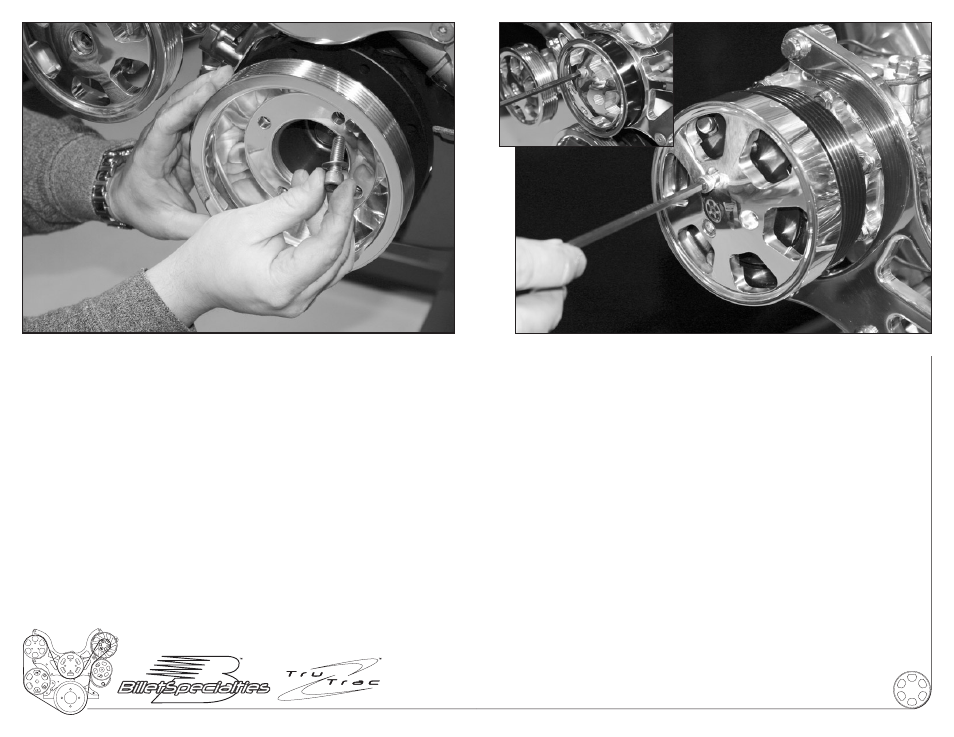

Figure 19: Install Crankshaft Pulley
Install crank pulley with four 3/8”-16 x 1” socket head cap screws and four 3/8”
Belleville washers and tighten firmly.
Figure 20: Install Water Pump Pulley
Install water pump pulley with four 5/16”-24 x 3/4” socket head cap screws and
tighten firmly. (A)
Figure 21: Install A/C Compressor Cover
Apply Loctite Blue 242 to the following:
(3) 1/4-20 x 3/4” socket head cap screws
Place cover on clutch and thread the socket head cap screws through the cover
and into the clutch, torque to 40-45 inch/lbs.
Caution: Over tightening these festeners will cause damage to the compressor
clutch. Do Not Over Tighten.
Check All Bolts For Tightness At This Time
(A)
