www.billetspecialties.com

13

www.billetspecialties.com

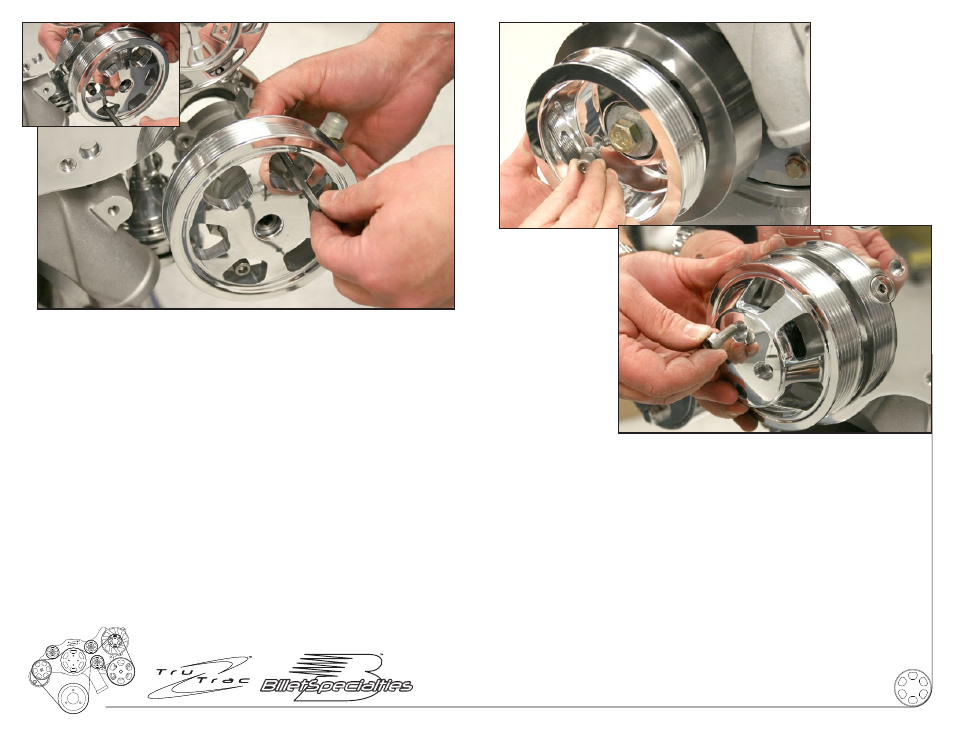

Figure 7: Install Power Steering Pump With Pulley

For kits without power steering continue to Figure 8.

Apply anti seize to the two 5/16-18 x 2-3/4 socket head cap screws.

Place power steering pump to bracket and thread the two 5/16-18 x 2-3/4” socket
head screws with 5/16" lock washers through the power steering pump bosses and
into the power steering bracket and tighten firmly (26 ft/lbs).

Figure 8: Install Crankshaft & Water Pump Pulleys

Apply anti seize to three 3/8-16 x 1” socket head cap screws and the four
5/16-24 x 3/4” socket head cap screws.

[A] Place the crank pulley on the damper, thread the three 3/8-16 x 1” socket
head screws with belleville washers (cup facing pulley) through pulley and into
damper, tighten firmly (46ft/lbs).

[B] Finish by placing the water pump pulley on water pump shaft, thread the four
5/16-24 x 3/4” socket head cap screws through the pulley and into the water
pump flange, tighten firmly (28 ft/lbs).

[A]

[B]
