Billet Specialties Premium Tru Trac Serpentine System - FE Ford User Manual

Page 9

www.billetspecialties.com

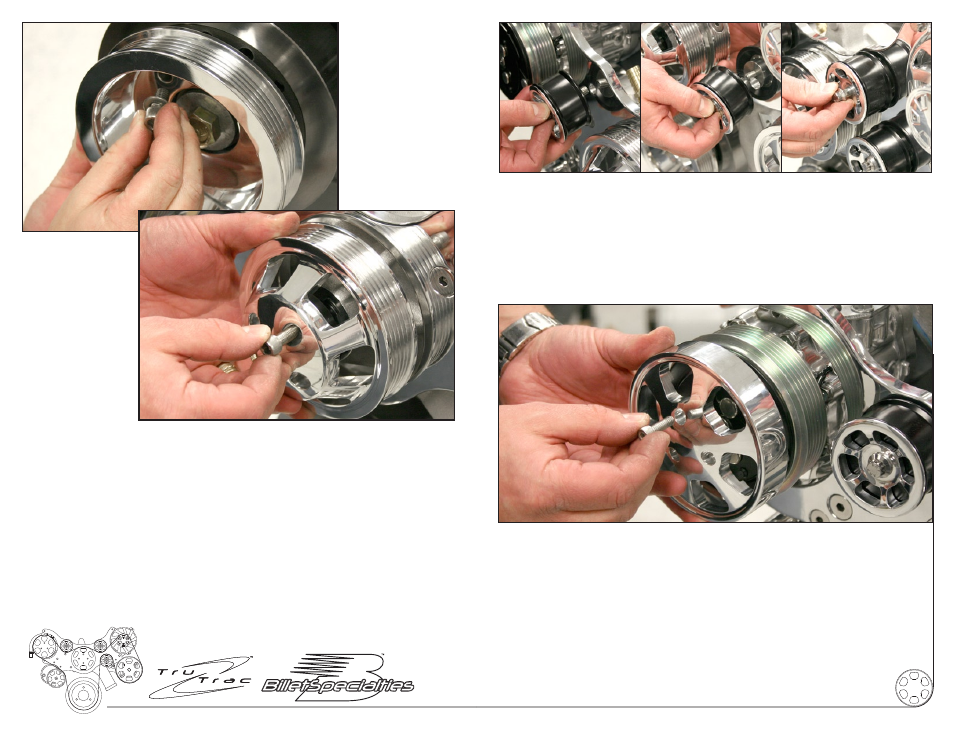

FIGURE 11: Install Crankshaft & Water Pump Pulleys

Apply anti seize to three 3/8-16 x 1” socket head cap screws and the four
5/16-24 x 3/4” socket head cap screws.

[A]Place the crankshaft pulley on the damper, thread the three 3/8-16 x 1” socket
head screws with belleville washers (cup facing pulley) through
pulley and into damper, tighten firmly (46ft/lbs).

[B] Finish by placing water pump pulley on water pump shaft, thread the four
5/16-24 x 3/4” socket head cap screws through the pulley and into the water
pump flange, tighten firmly (28 ft/lbs).

FIGURE 12: Install Idler Pulleys

Apply anti seize to the three 3/8-16 x 1-3/4” 12 pt ARP cap screws.

Install the first pulley by threading the 12 pt ARP cap screw through the pulley
cover, pulley and boss into the bridge bracket, tighten firmly
(46 ft/lbs). Follow by installing the next two pulleys as shown.

FIGURE 13: Install Compressor Clutch Cover

Apply Loctite Blue 242 to the following:
(3) 1/4-20 x 3/4” socket head cap screws

Place cover on clutch and thread the socket head cap screws through the cover
and into the clutch, torque to 40-45 inch/lbs.

Caution: Over tightening these festeners will cause damage to the compressor
clutch. Do Not Over Tighten.

[B]

[A]
