Billet Specialties Premium Tru Trac Serpentine System - FE Ford User Manual

Page 6

www.billetspecialties.com

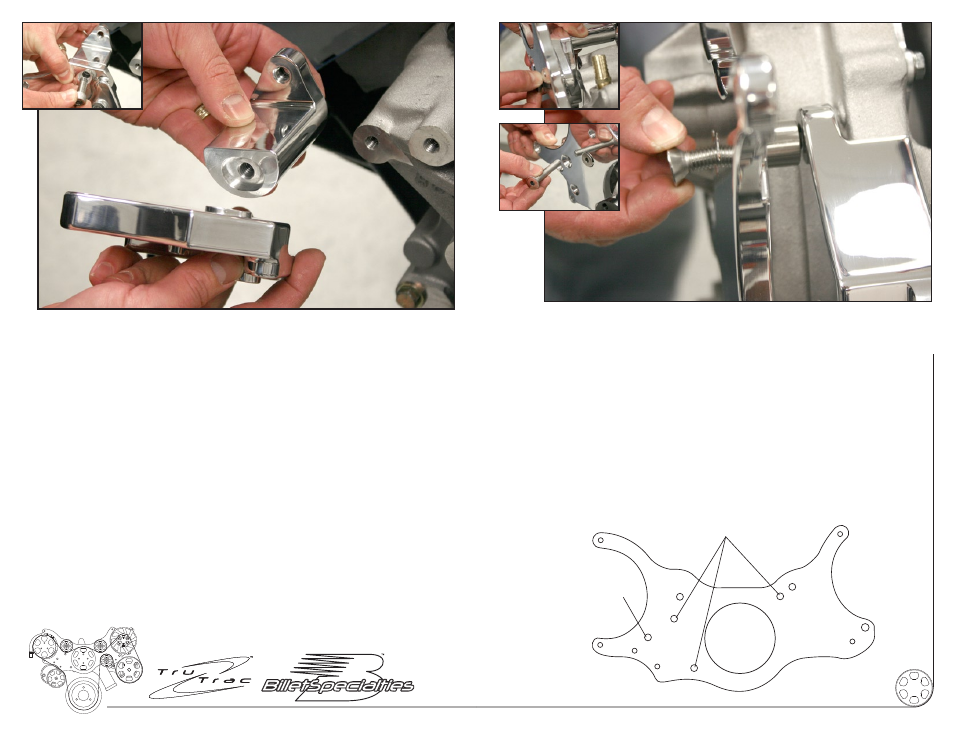

FIGURE 5: Install Compressor Bracket

Apply anti seize to one 3/8-16 x 1” socket head cap screw.

Place compressor bracket onto tensioner bracket as shown, locking boss into
recess on bracket.

Thread the 3/8-16 x 1” socket head cap screw through the compressor bracket
into the tensioner bracket and tighten firmly (46 ft/lbs).

FIGURE 6: Install Tensioner Bracket Assembly & Bridge Bracket

Apply anti seize to three 3/8-16 x 1-3/4” flat head cap screws and one
3/8-16 x 2-1/2” flat head cap screw.

[A] On the passenger side, thread two 3/8-16 x 1-3/4” flat head cap screws
through the bridge bracket and tensioner bracket as shown;
aligning with bosses on water pump and finger tighten. [B] Thread the
3/8-16 x 2-1/2" flat head cap screw through the bridge bracket, see
location below.

[C] On the driver side, thread the remaining 3/8-16 x 1-3/4” flat head cap screw
through the top hole in the bridge bracket and through the 13/16” spacer and
into the water pump boss as shown, and finger tighten.

1-3/4" Flat Head Cap Screw

2-1/2" Flat Head Cap Screw

[A]

[B]

[C]
