Billet Specialties Premium Tru Trac Serpentine System - FE Ford User Manual

Page 8

www.billetspecialties.com

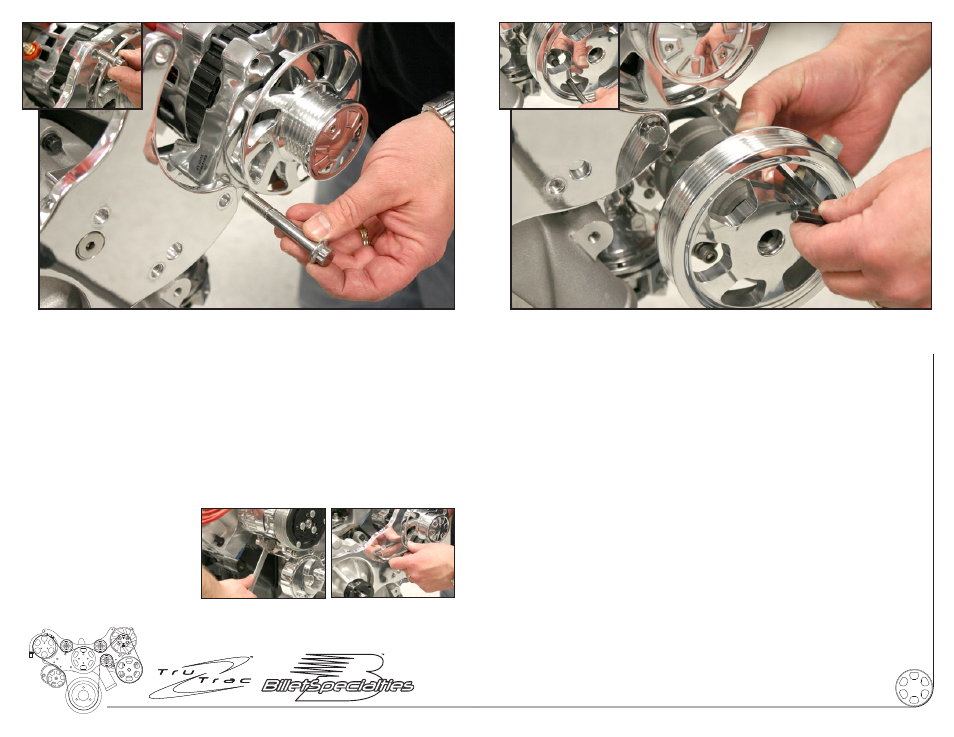

FIGURE 9: Install Alternator

Apply anti seize to one 10mm-1.5 x 70mm 12pt ARP cap screw and one 8mm-1.25 x
25mm 12pt ARP cap screw.

[A] Place alternator between the alternator bracket and bridge bracket aligning
the bottom bridge bracket hole with the lower alternator boss. Thread the 10mm-
1.5 x 70mm 12pt ARP cap screw through the bridge bracket, alternator and into the
alternator bracket.

[B] Finish alternator installation by threading the 8mm-1.25 x 25mm 12pt ARP cap
screw through the bridge bracket and into the top alternator boss.

FIGURE 10: Install Power Steering Pump With Pulley

For kits without power steering continue to Figure 11.

Apply anti seize to the two 5/16-18 x 2-3/4" socket head cap screws.

Place power steering pump to bracket and thread the two
5/16-18 x 2-3/4” socket head screws with 5/16" lock washers through the power
steering pump bosses and into the power steering bracket and tighten firmly (26
ft/lbs).

TIGHTEN ALL FASTENERS AT THIS TIME
including compressor bolt and rear
tensioner bolt. Leave lower alternator
bolt loose and check to see if a shim
needs to be added at this time.

The alternator mounting boss may
vary in thickness due to the
polishing process. 10mm shim washers are provided to shim alternator to bridge bracket
(washers may or may not be needed).

[B]

[A]
