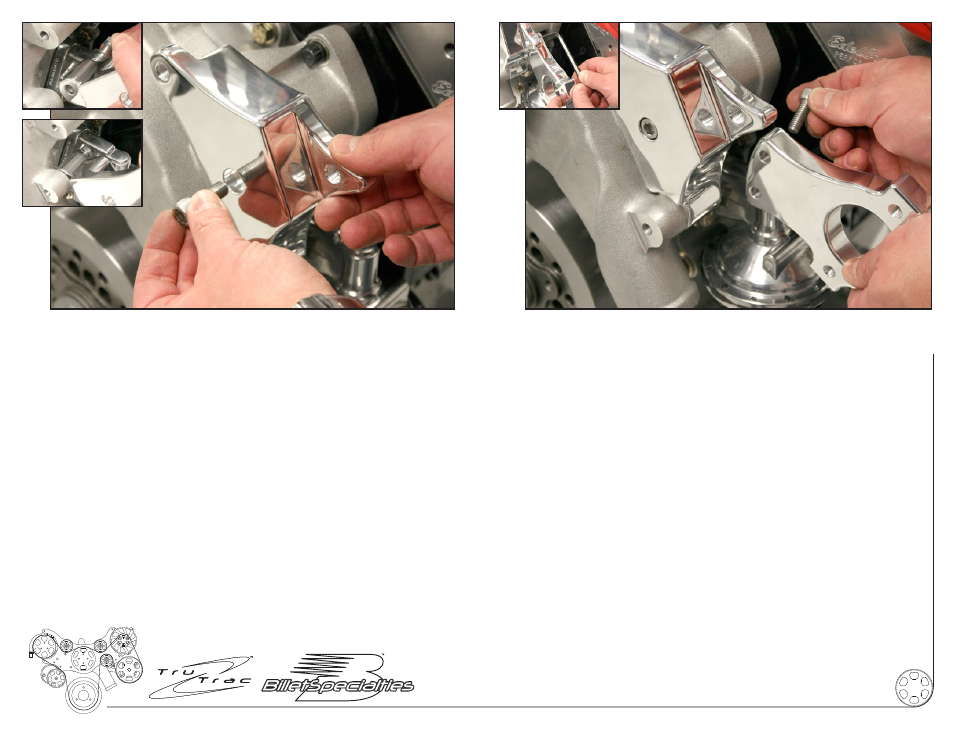

FIGURE 3: Install Alternator Bracket To Water Pump

Apply anti seize to one 3/8-16 x 2” hex head cap screw and one
3/8-16 x 3/4” socket head cap screw.

[A,B] Place alternator bracket on driver side of water pump as shown. Thread
the 3/8-16 x 2” hex head cap screw with a 3/8” washer through the back of the
bracket and into the water pump, finger tighten.

[C] Swing bracket into position by aligning the front bracket mount hole with the
water pump boss. Insert 3/8-16 x 3/4” socket head cap screw through bracket
and into water pump boss. Tighten both fasteners firmly at this time. (46ft/lbs.)

FIGURE 4: Install Power Steering Pump Bracket

For kits without power steering continue to Figure 5.

Apply anti seize to two 5/16-18 x 1” socket head cap screws.

Place power steering bracket behind alternator bracket as shown above, thread
the 5/16–18 x 1” socket head cap screws through the power
steering bracket and into the alternator bracket, tighten firmly (26ft/lb).
