SECTION 7: COMPONENT LISTS
REF
NO.
DESCRIPTION
CSX100
CSX200

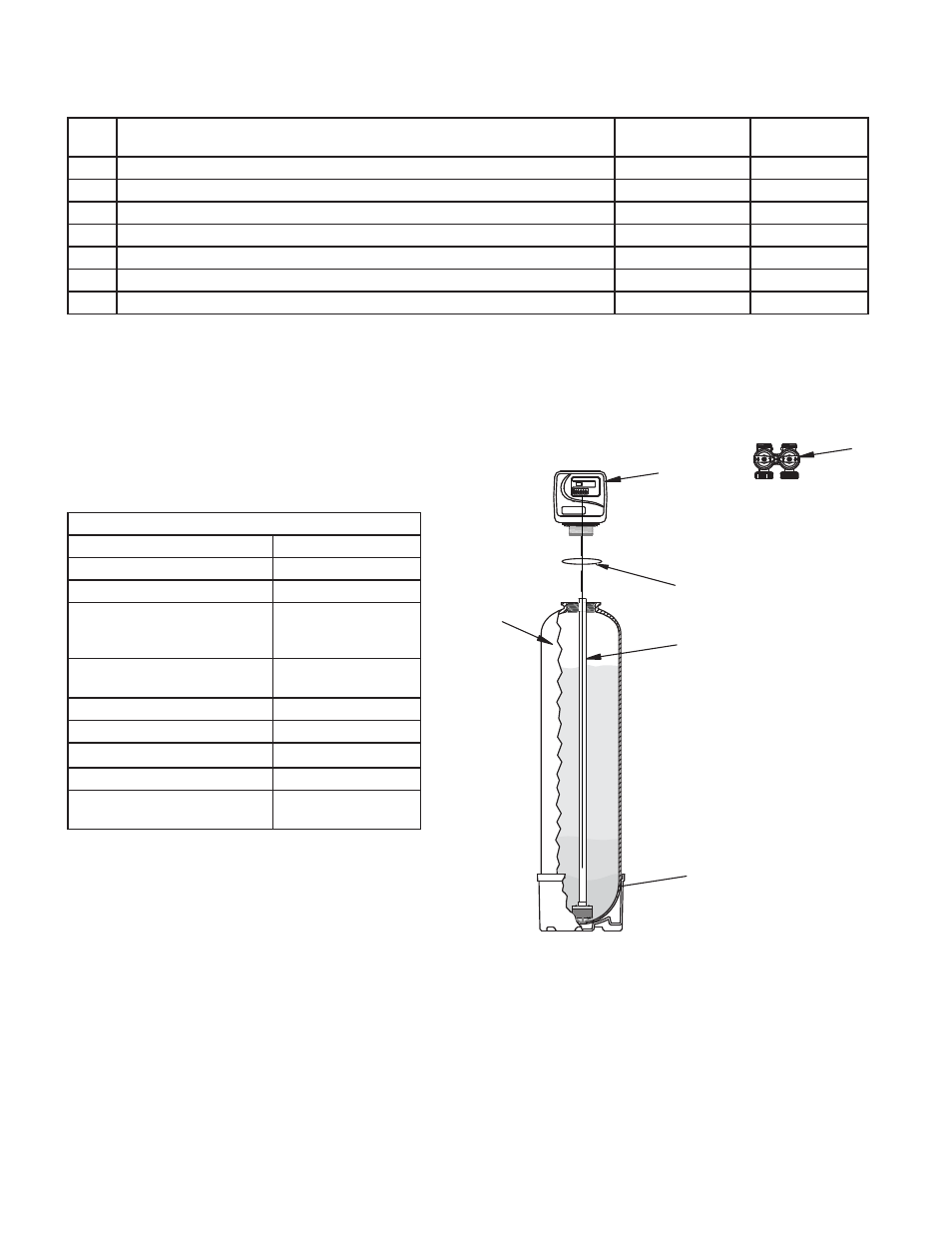

1
Control Valve, Complete, Less Bypass Valve
W217530-003-00Z
W217750-003-00Z
1a
O-ring Included with Item #3
V3180
V3180
2
Bypass Valve
V3006
V3006
3
Media Tank w/Base
6236001-1044
6236001-1054
4
Distributor Tube
C37S-16-44
C37S-16-54
5
Media
SX-050P (2)
SX-050P (4)
6
Gravel Underbed 1/4” x 1/8”
QC-12P
QC-15P
Note: When ordering replacement or repair components be sure to always specify by the unit or model number to ensure the correct parts are ordered.
7-1
Items Not Shown
Description of Item
Part Number
Wrench
V3193- 01
Funnel
U1006
1” Plumbing Connection Fitting
Straight Male NPT Fitting
Straight Brass Sweat Fitting
V3007-04
V3007-02
Adapter Kit - 1” NPT
- 1” Sweat Fittings
V3007-02*
V3007-04*
Cover
V3175-WCA
Feed Pump
LA30P
15 gal. Solution Tank
ST15Z
Injection Assembly
TBF1Z
Feed Pump with Injection Assembly
and 15 gal. Solution Tank
LA30P-S15T-TBF
*See assemblies drawing for individual components
1
