2) Set the TCP mode of the HelloDevice.
TCP mode of the HelloDevice must be set Server, Client or Server/Client, and this is when the
HelloDevice functions as TCP Server. In [Network Mode] window, set the TCP mode to “TCP Server”
and the port to 6001. (Refer to the TCP topic in 4.4.2) In this section, an IP address of the HelloDevice
is assumed to be 192.168.1.18.
In this TCP Server mode, the HelloDevice functions as TCP server, and allows the connection request
from client-side only. Set serial parameters for RS232 communication as follows. For RS232
communication settings, refer to Section 4.4.3.
9600 baud rate
Parity None
Data bit 8
Stop bit 1
Handshake None,
Time 50 seconds
3) Launch TeraTerm Pro for serial communication on the PC.
4) Set the port to COM2 port in TeraTerm Pro.
Parameters of TeraTerm Pro should be the same as serial parameters of the HelloDevice.

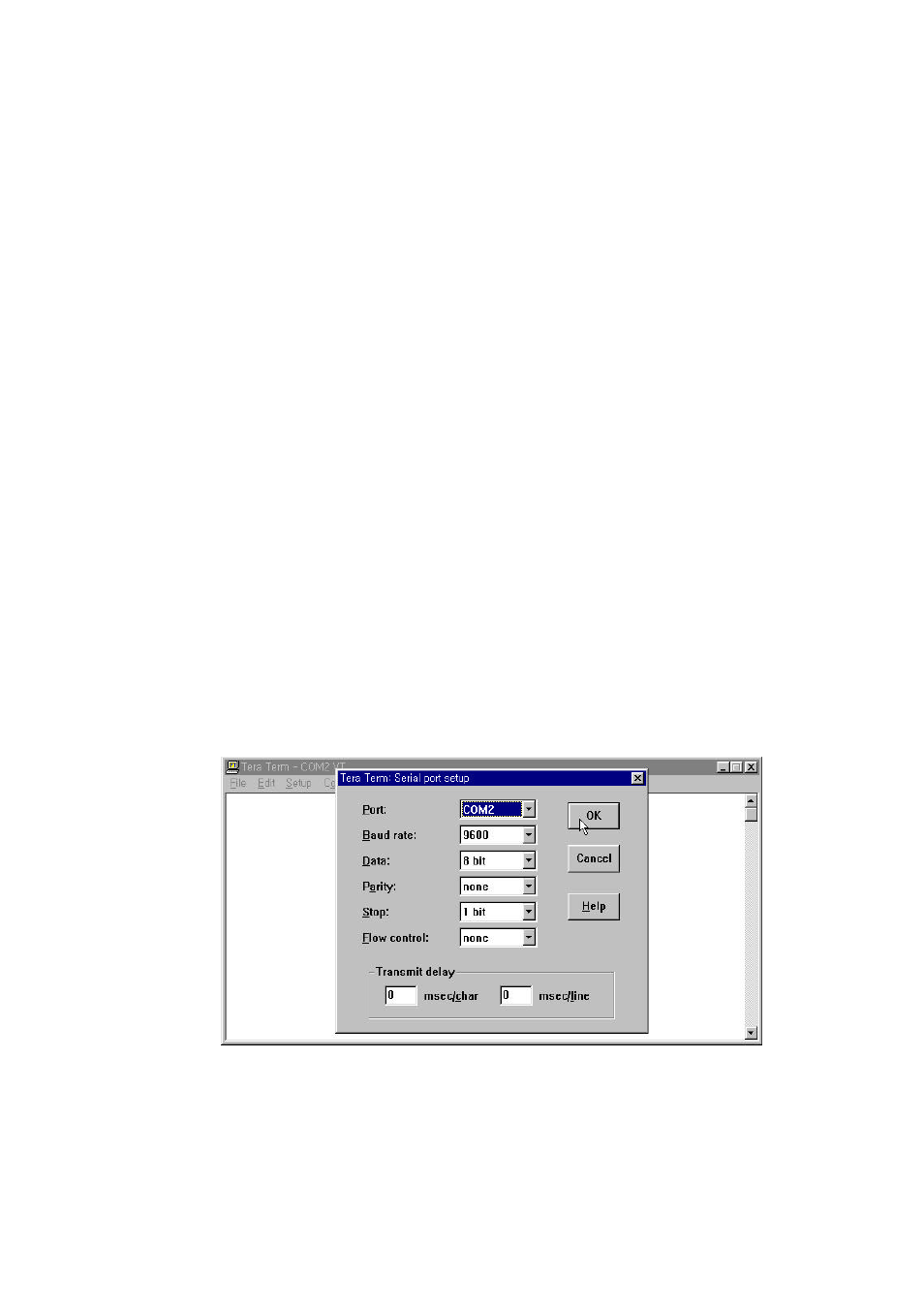

Figure 5.2 Setting RS232 Parameters of TeraTerm Pro
