HD132x Series User Manual
27
4.4 Setting Parameters
After the IP address has been assigned successfully to the HelloDevice, you need to set network
parameters and serial parameters. To set such parameters, you need to set password parameter first.
Basic setup order of parameters is as follows:

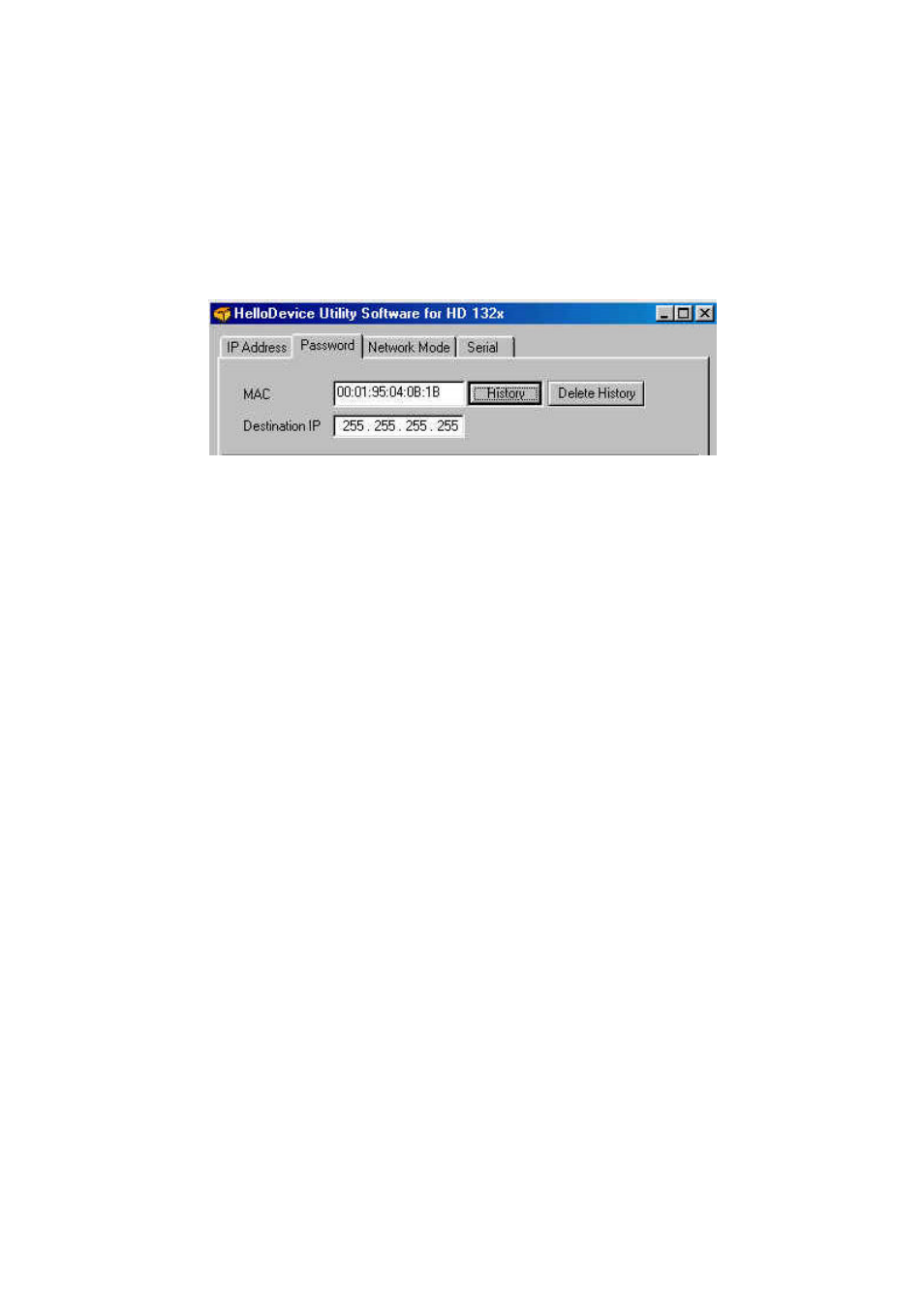

Figure 4.14 Setting the Destination of the Parameter Setup Window
(1) After moving to Parameter window, Enter the target MAC address and IP address of the
HelloDevice.
Note:
[MAC address] must be entered, and if [Destination IP] is set to 255.255.255.255, the setup command
is transmitted in Broadcast method. Such setup is possible only in LAN environment. You need not
have to know the IP address of the HelloDevice in this case.
When setting parameters in HelloDevice located in a remote place (WAN environment), you should
enter both the MAC address and the public IP address.
(2) Enter parameters in all fields and press [Send].
By pressing [Send], you can send parameters to the HelloDevice. All parameter settings are sent to
the HelloDevice as displayed on the current window.
4.4.1. Password Parameter
For security reason, you must set password parameters in advance before you set other parameters.
If you select [Password] Tab, you can verify and change the password.
1) Verifying Password
Default factory setting of the ID is: AAAAAAAA and Password is: AAAAAAAA . After verifying such setting,
you can start to set other parameters window. Enter the value in each field as shown in Figure 4.15
and press [Send].
