SENA HD132x Series - Manual (Page 21)

HD132x Series User Manual
21

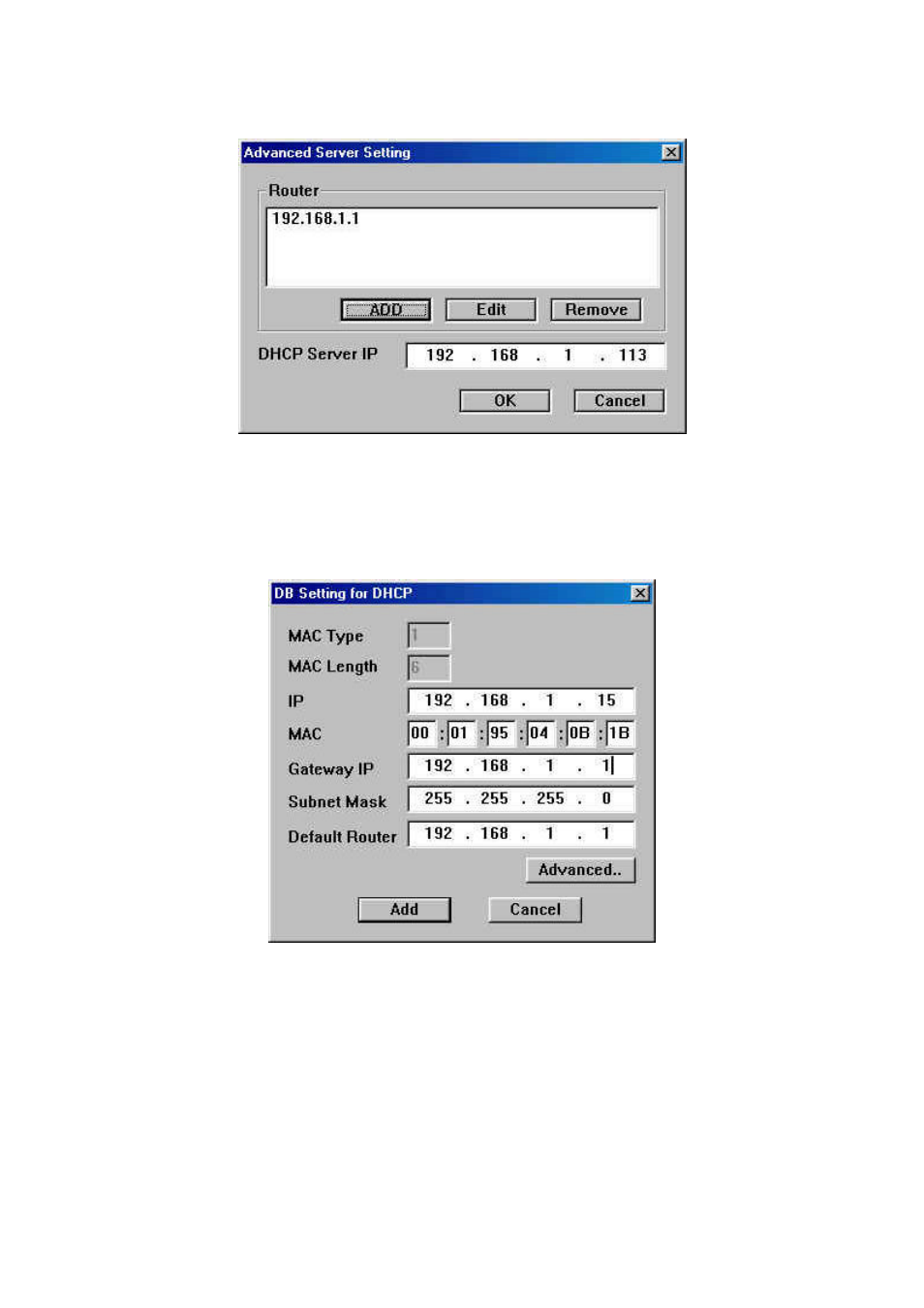

Figure 4.8 [Server Setting] Window
(3) Press [Add] button and enter the DHCP database record.
Figure 4.9 [Add] Window
Since the HelloDevice is connected to the Internet through Ethernet, [H/W Address Type] and [H/W
Address Length] should always be 1 and 6, respectively.
Enter [Client IP Address] and [Client H/W Address]. [Client IP Address] and [Client H/W Address] are
unique IP address and MAC address of the HelloDevice. The MAC address can be found on the
sticker labeled on the top of Ethernet IC of the HelloDevice. In Figure 4.9, an example of entry is
