About the System

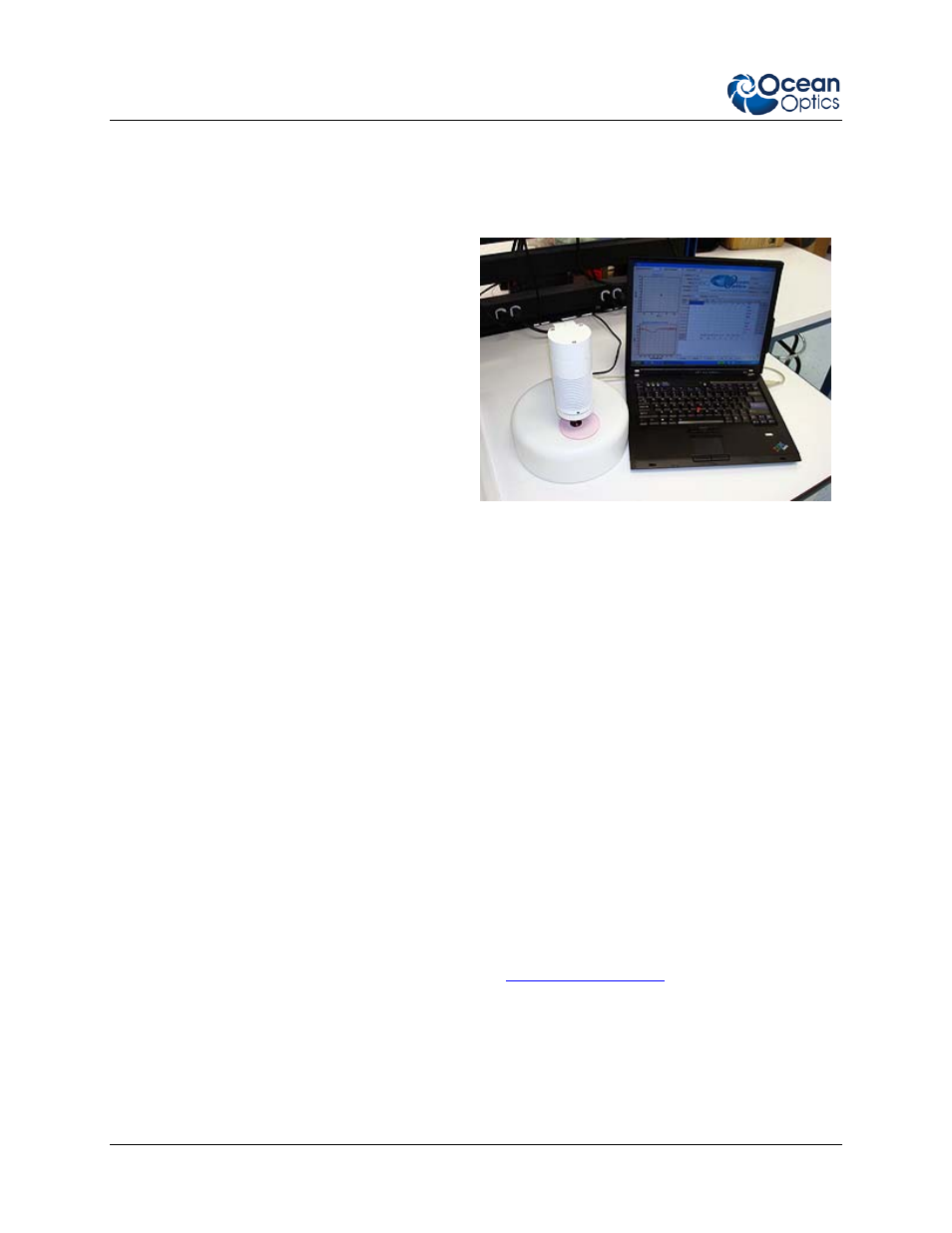

The OTS covers the 380-780 nm wavelength range and accepts samples from 10-150 mm in diameter and
up to 10 mm thickness. The system consists of the following components:
• High-resolution miniature linear CCD-
array USB2000 Spectrometer configured
for 380-780 nm (SLIT-50, Grating #1)
• High-power, tungsten halogen light
source
• Fiber optic integrating sphere for
collecting signal transmitted through the
sample
• Optics for improved beam collimation
and spectral sensitivity distribution
(including a BG34 Schott standard
colored glass filter for greater sensitivity
and less noise in the total visible
spectrum)
• Short optical fiber to channel signal from the integrating sphere to the spectrometer
• Customized lens transmittance and color calculation software measures and displays up to 10
measurements at once. This custom software calculates T(avg 380-780nm), Luminous
Transmittance Tv, and color: L* a* b*, hue (h) and Chroma (C*).
Features
Characteristics
Spectral range:
380-780 nm
Detection: Miniature
fiber optic spectrometer
Light source:
High-power tungsten halogen (360-2000 nm)
Sample collection:
Fiber optic integrating sphere
Color calculations:
CIE color characteristics
Measurement calibration:
Manual calibration using known filter standard (not included);
calibration time <30 seconds
System calibration:
Recommend annual recalibration
Transmittance calibration
standards:
Available (contact an
for details)
Typical samples measured:
Windows, filters, glass and plastic lenses
Sample size:
10-150 mm diameter, up to 10 mm thickness
Optical stage:
White powder-coated aluminum (optional black anodized aluminum
version available)
