B: Specifications
Lamp
Housing
Connection
Block
Rear / Electronics Board
Fan Wires

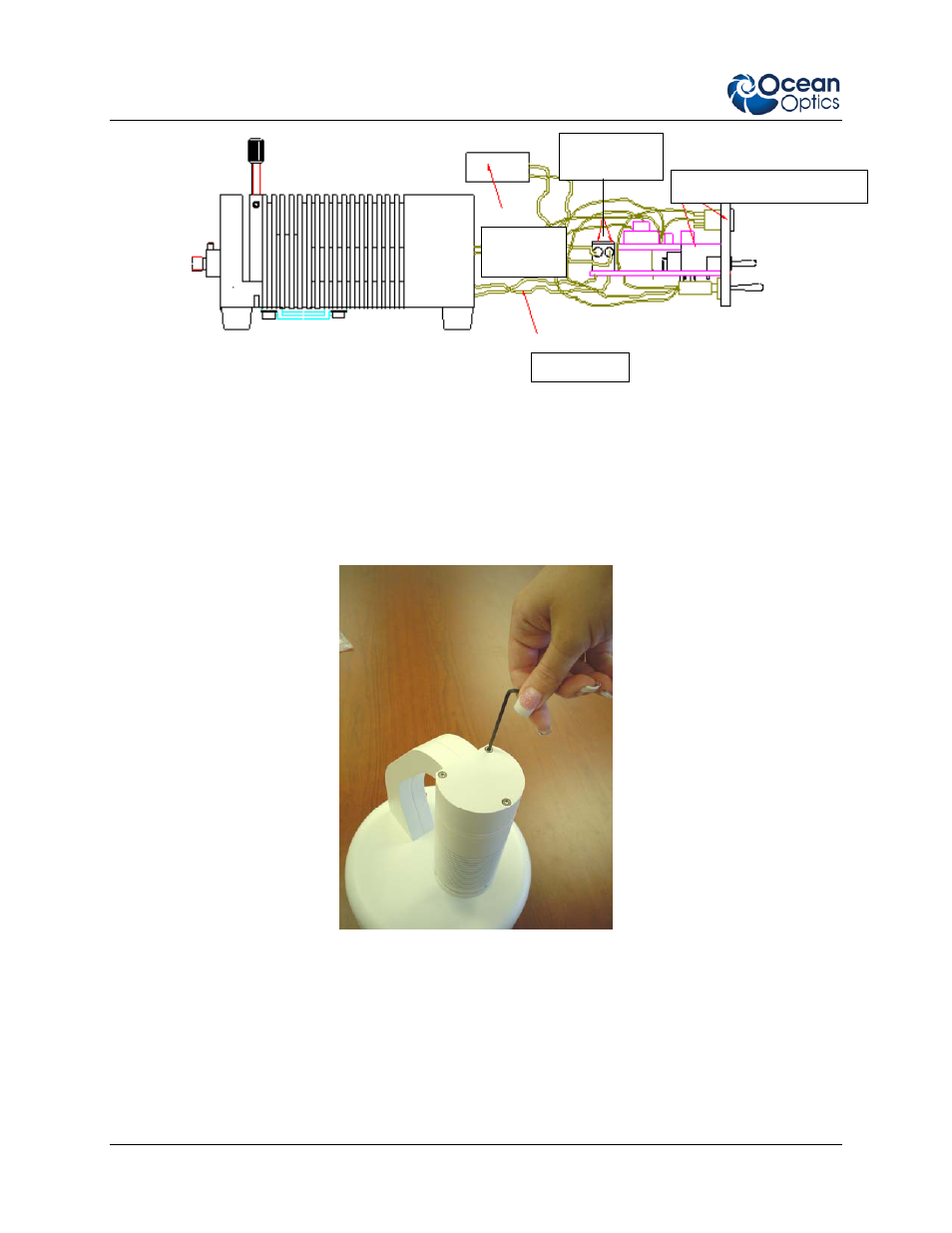

HL-2000-FHSA Bulb Replacement Diagram
1. Unplug the power connector from the power socket on the back of the OTS unit.
2. While holding the light source, carefully remove the screws on the rear of the unit with the
provided 2.5mm Allen wrench.
3. After removing the screws, lower the light source slightly until the connection wires are visible.
4. Carefully disconnect the 15-pin D-sub connector as well as the power connection from the top
plate of the light source.
