B: HR4000 Specifications
Any 32-bit version of Windows (when connecting the HR4000 to a PC via serial port)
Compatibility for Handheld PCs
To use the HR4000 with your handheld PC, the computer must meet the following minimum
requirements:
• Handheld PC running Windows CE 2.11 or later
• 32 MB RAM
• OOIPS2000 Spectrometer Operating Software
• Serial port connectivity
30-Pin Accessory Connector Pinout

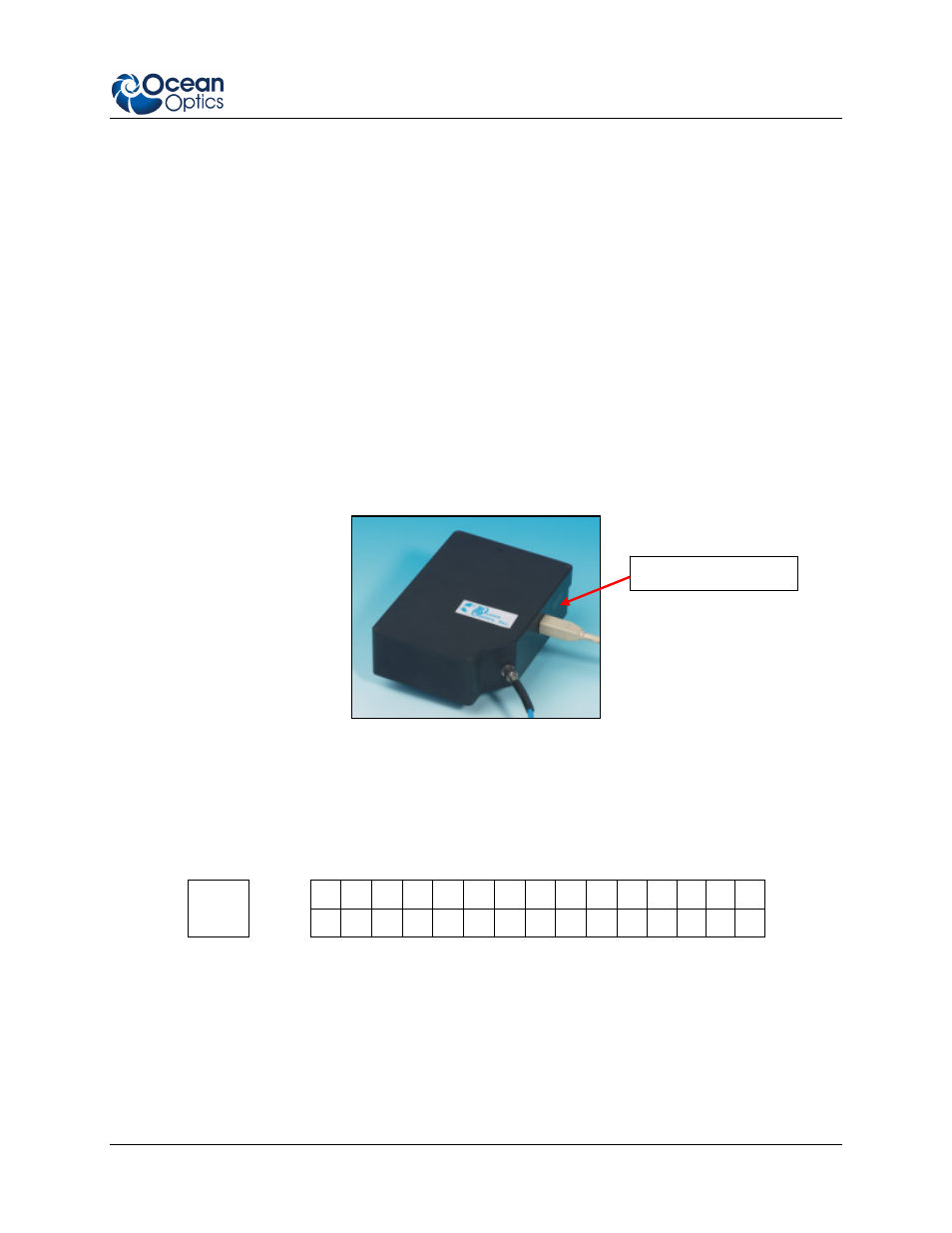

The HR4000 features a 30-pin Accessory Connector, located on the side of the unit as shown:
30-Pin Connector
Location of HR4000 30-Pin Accessory Connector
30-Pin Accessory Connector Pinout Diagram
When facing the 30-pin Accessory Connector on the front of the vertical wall of the HR4000, pin
numbering is as follows:
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
USB
Port
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29
30-Pin Accessory Connector Pinout Diagram
210-00000-000-02-0908 23
