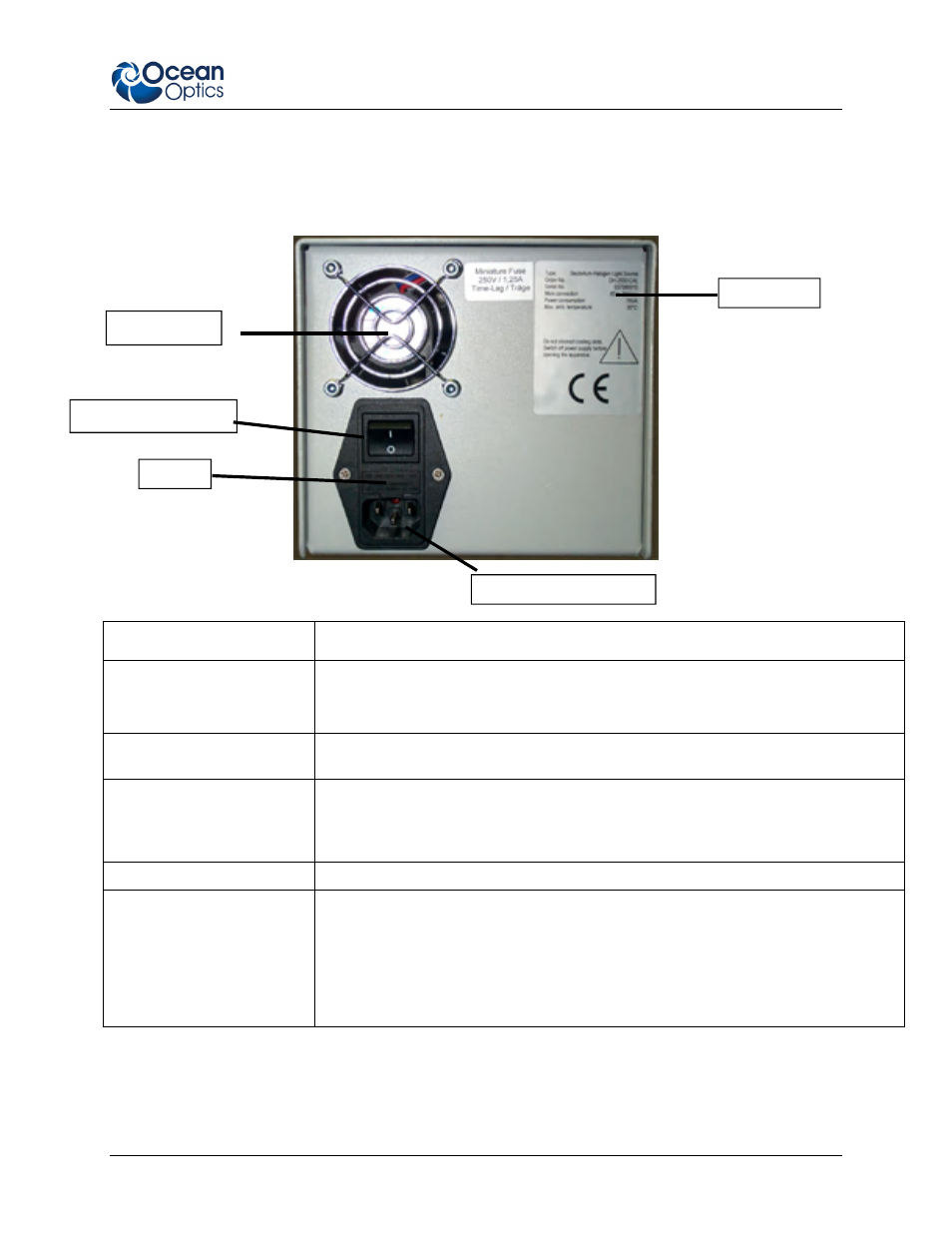

Rear Panel

Component

Description

Power Terminal Input

Connect power cable to provide voltage to DH-2000-CAL:

Note: Only connect the power cable to the lamp when the Main Power Switch is in
the OFF position.

Main Power Switch

Turn on to supply power to the DH-2000-CAL. The Power LED illuminates when
this switch is in the On position.

Fuse

Contains the fuse to protect the unit against overload:

European Fuse Type: Miniature fuse 5 x 20 mm, 1 Amp slow blow

USA Fuse Type: Miniature fuse 5 x 20 mm, 2.5 Amp slow blow

Cooling Fan

Cools the interior of the DH-2000-CAL. Do not obstruct.

Type Sign

Information about:

– Type – Version

– Order No. – Serial No.

– Main connection – Max. Ambient. Temperature

– Warnings – CE-Marking

Main Power Switch

Power Terminal Input

Fuse

Cooling Fan

Type Sign
