Ocean Optics Transmissive pH Probe - Manual (Page 8)

pH Probe Instructions
8 PH-BCG-TRANS-01-0210

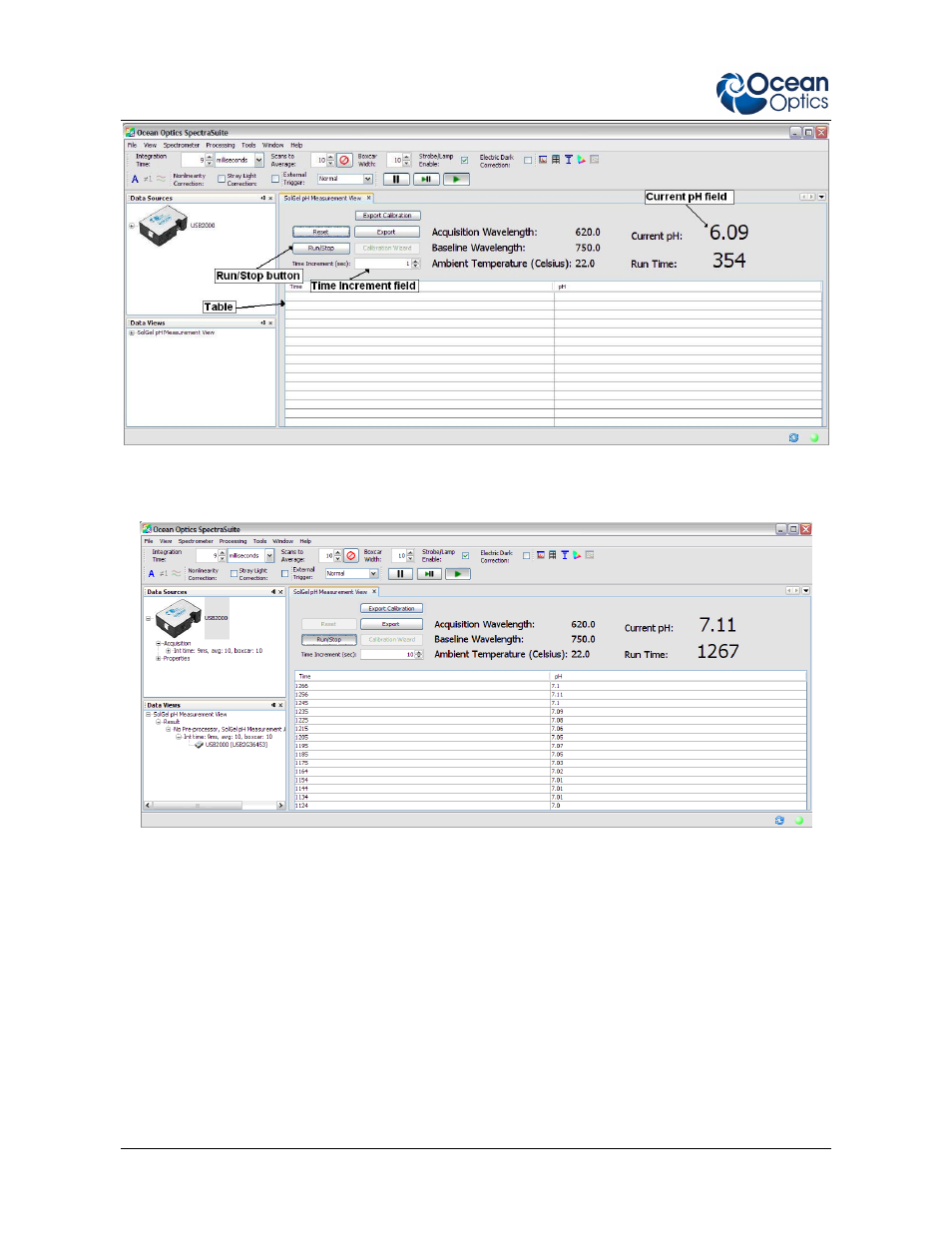

2. Click the Run/Stop button to toggle data acquisition appearing in the lower table on the
screen. Data is recorded at the time interval you specify in the Time Increment (sec) field.
3. Click one or all of the following buttons:
 Reset: Clears the table and restarts the run time.
 Export: Opens a window to save your data in a format that can be opened with Microsoft
Excel or a text program such as WordPad. The exported data file contains all of the
variables that you have entered and have been calculated, along with a time stamp for data
acquisition and save, the time-resolved pH data, and complete spectra for all reference and
calibration buffers used.
 Export Calibration: Opens a window to save your calibration data. This creates a file
containing the reference spectra and other variables that can later be loaded via the
Calibration Wizard, allowing for very quick setup.
