740100-00(5) Page 9 of 14
4. KEYPAD SETTINGS (continued)
WARNING !
KEEP HANDS, CLOTHING, WIRES, TOOLS, LADDERS, ETC. AWAY
FROM THE DOOR WHEN THE OPERATOR IS INITIALLY TURNED ON.
See Figure 4-3 for definitions of the positions of the door throughout the opening and closing cycle.
See Table 4-1 for explanations of the keypad settings.
To change setting values:
1. Set the 3-position switch, if used, to OFF.
2. Apply AC power. The POWER light will illuminate and the display will remain blank.
3. Press any two pushbuttons at the same time for 1 second to turn on the keypad. The display will illuminate.
4. Press the UP or DOWN setting selection pushbutton to select the desired setting. The setting is
shown in the SETTING display, and the current value for that setting is shown in the VALUE display.
5. Press the UP or DOWN value selection pushbutton to select the desired value for the displayed
setting. The value for the setting is indicated in the VALUE display.
6. The keypad will automatically turn off after 5 minutes of inactivity.
To reset all values to default (default values are listed in Table 4-1 under “Selectable Values”):
1. Set the 3-position switch, if used, to OFF.
2. Apply AC power. The POWER light will illuminate, and the display will remain blank.
3. Press any two pushbuttons at the same time for 1 second to turn on the keypad. The display will illuminate.
4. Press the DEFAULT pushbutton for 4 seconds.
5. The values are set to default, and the display will indictate the opening speed setting and value.
6. The keypad will automatically turn off after 5 minutes of inactivity.
Back check speed
Back check position
Opening
speed
Closing
speed
Latch position
Deceleration to fully
closed position

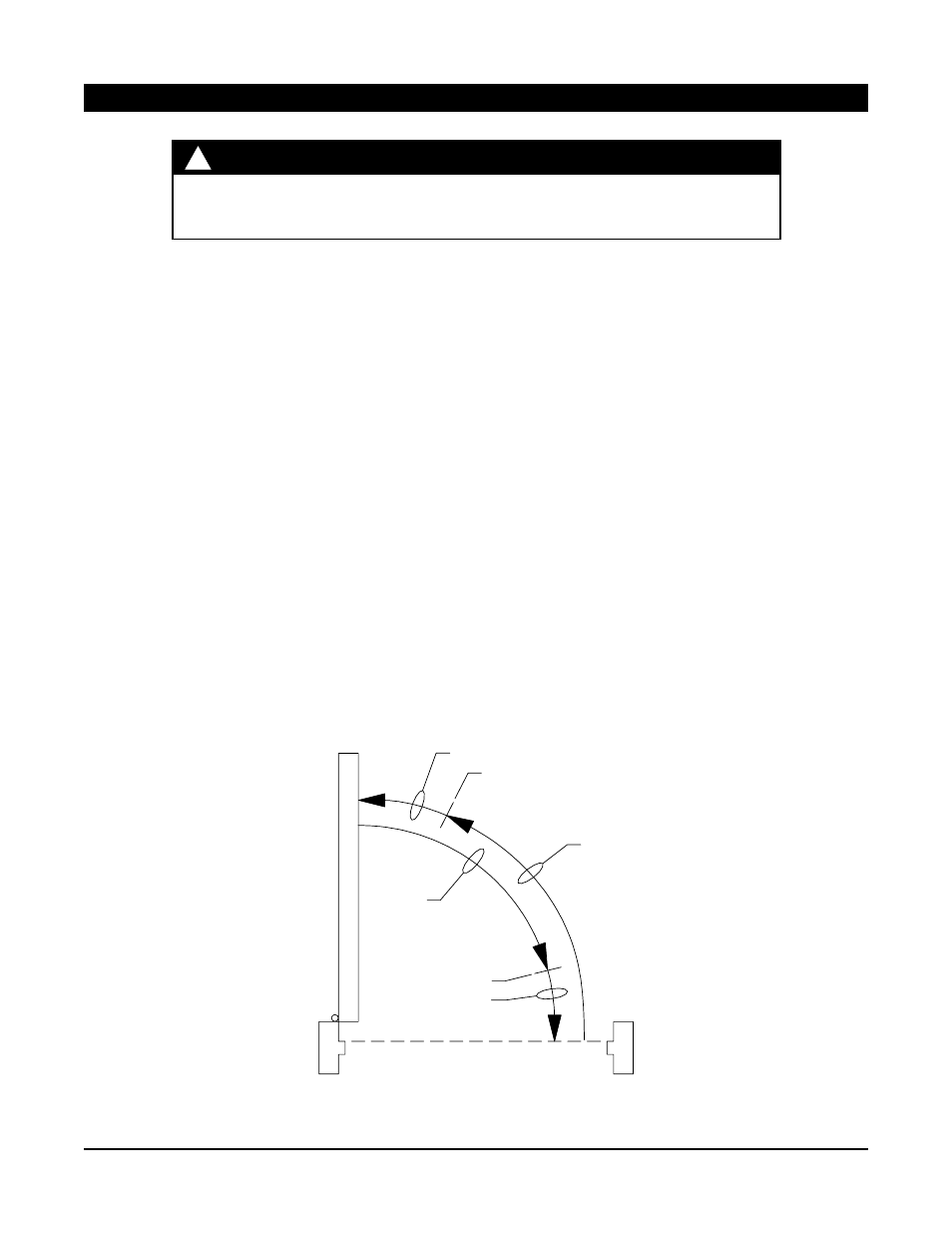

Figure 4-3. Door Position Definitions
