2. INSTALLATION
To install the Middle or Senior Swing Control Box, follow the Astro/Middle/Senior Swing installation instructions
(part No. 740132-00) beginning with “8. Control Box Installation” on page 12 of those instructions.
CAUTION !
Improper installation or set up may result in personal injury or property damage.
Follow instructions carefully. For answers to questions, call LCN at: 1-800-526-2400
3. WIRING
• Review the separate wiring diagrams in the accessory instructions so that all wiring can be completed.
• See Figure 3-1 for system configuration terminology.
• See Figure 3-2, Figure 3-3, and Figure 3-4 for names and locations of control box connectors.
• See Figure 3-5 for control box plug and jack descriptions, wiring, and mating cables.
• See Figure 3-6 for electric strike locking device sample wiring.
• See Figure 3-7 for EL (electric latch retraction) locking device sample wiring.
CAUTION !
When joining or separating a plug and receptacle, do not push or pull on wires. This
may cause a wire to be pulled loose from a terminal, which may result in a malfunction.

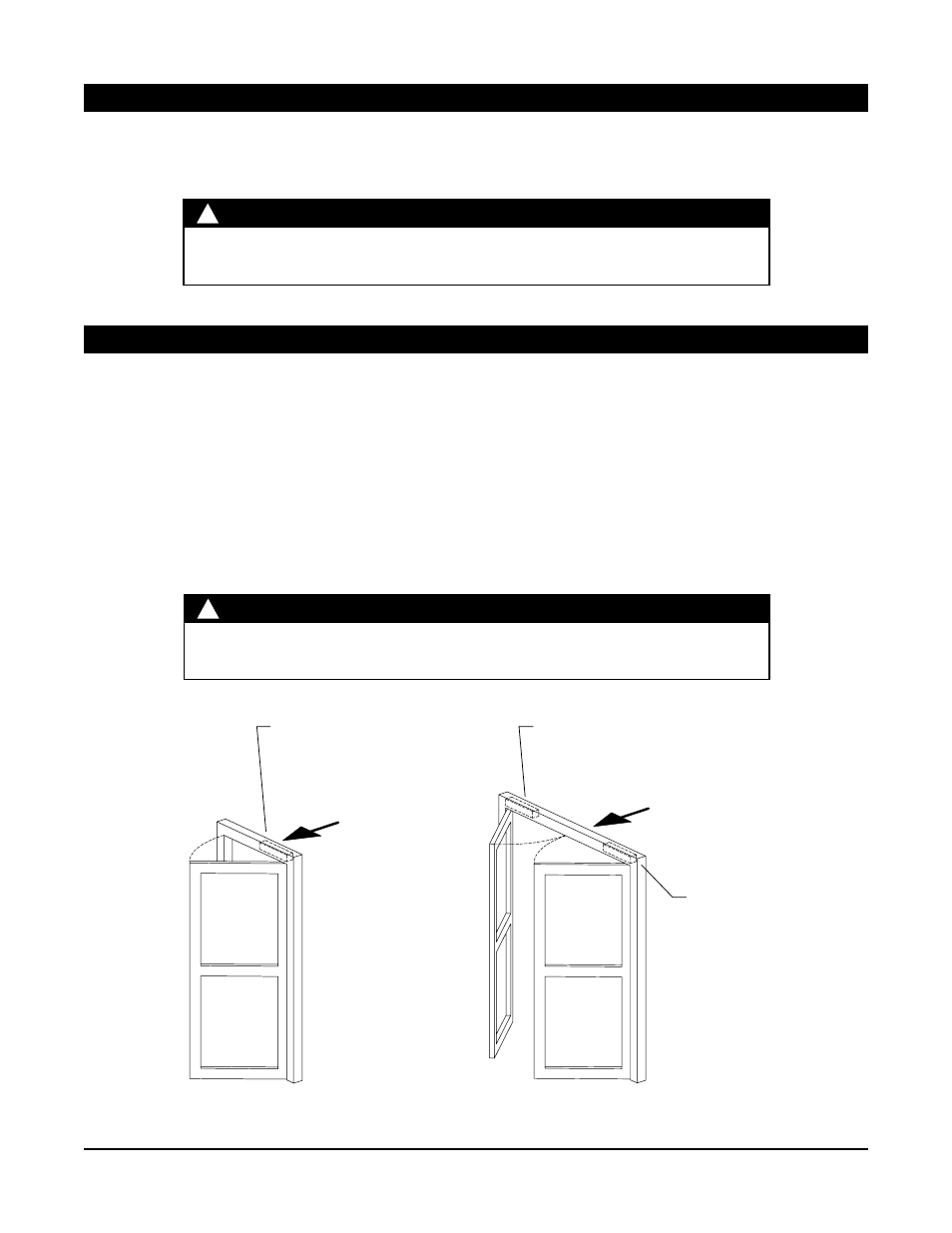

Figure 3-1
Connect operator for second door to control
box Companion Motor Power receptacle
(P5 on control box power board)
Connect master
operator to control
box Master Motor
Power cable
Connect single door
operator to Master
Motor Power cable
from control box
Safety
side
Approach
side
Approach
side
Safety
side
