ELECTRICAL SPECIFICATIONS

AC input voltage ..................................................... 120 VAC
AC fuse .................................................................. 120 VAC, 2.5 A time-delay fuse
Motor protection ..................................................... Solid state failure detection and shutdown
Activate inputs ....................................................... dry NO contacts (close contacts to open door)
Safety inputs .......................................................... dry NO contacts (closed contacts indicate an obstruction)
Breakaway input .................................................... dry NC contacts (open contacts indicate breakaway)
3-position switch input ............................................ dry 3-position switch
Power Boost disable input ...................................... dry NO contacts (close contacts to disable Power Boost
Lock output ............................................................ Form C dry relay contacts rated 8 A, 30 VDC maximum
Accessory power output ......................................... 24 VAC, 1.5 A (protected by resettable thermal fuse)
Logic power output ................................................. 5 V, 50 mA (protected by resettable thermal fuse)

1. PRE-INSTALLATION SITE AND PRODUCT CHECK

1.1. All required installation steps listed before “8. Control Box Installation” in the Astro/Middle/Senior

Swing installation instructions (part No. 740132-00) should be completed before installing the
Middle/Senior Swing control box.

1.2. Check that the control box model (indicated on control box label; Figure 1-1) is correct for the application.

1.3. Check that the available AC voltage matches the control box voltage requirement (120 VAC).

1.4. Check that all accessories required for the application are on hand.

IMPORTANT

!

Type

Width per Leaf

Maximum Weight per Leaf

Single Door

36” to 48”

200 lb.

Simultaneous Pair

30” to 48”

200 lb.

Factory Authorized Door Leaf Size and Weight

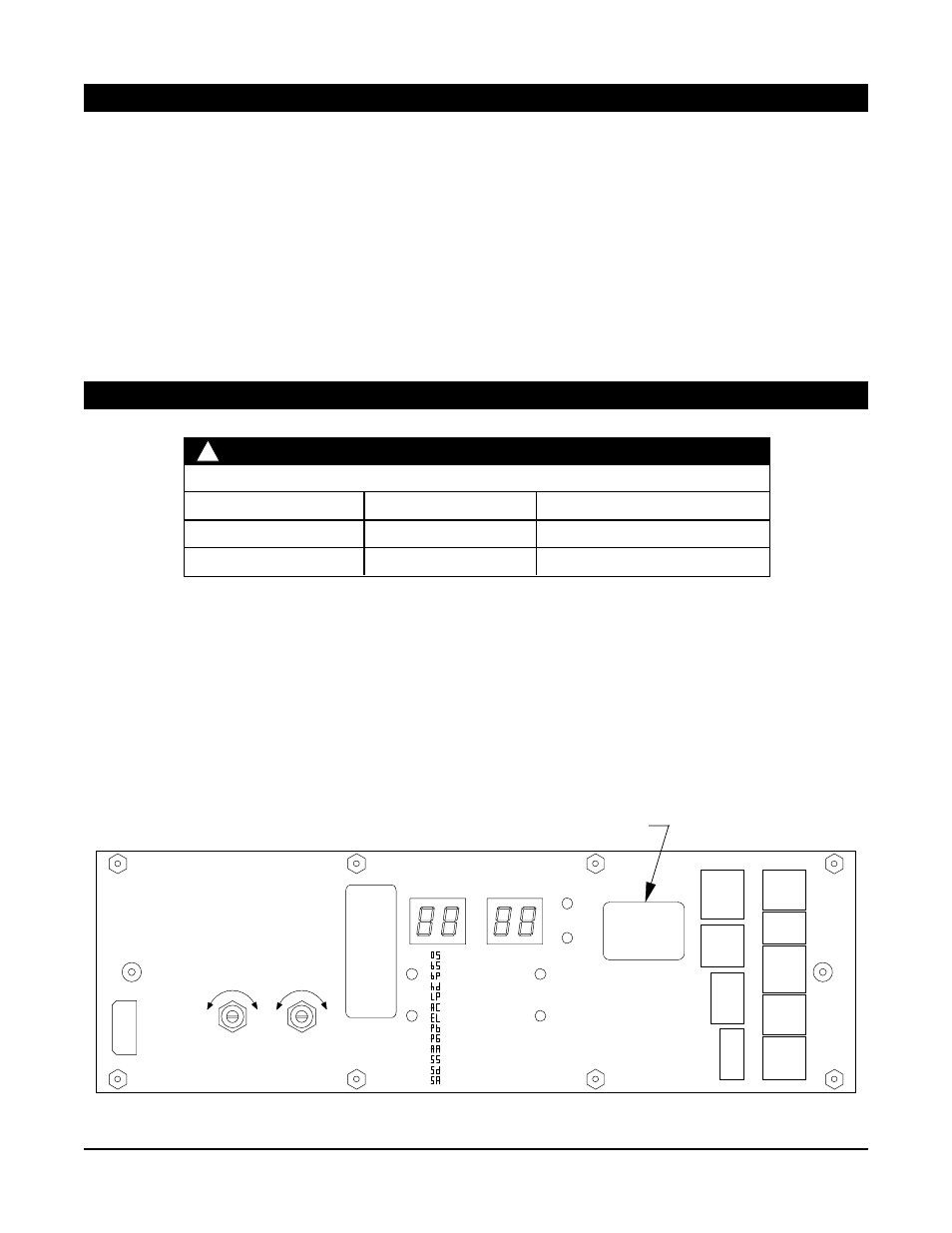

Figure 1-1

Label indicates model

CAUTION: 120 VAC
2.5 A TIME-DELAY FUSE

WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONLY WITH SAME
TYPE AND RATING OF FUSE.

COMPANION

MOTOR

COMPANION

MASTER

CLOSE
SPEED

S

L

O

W

F

A
S
T

CLOSE
SPEED

S

L

O

W

F

A
S
T

: OPENING SPEED

: BACKCHECK SPEED

: BACKCHECK POS.

: HOLD-OPEN DELAY

: LATCH POSITION

: AUTO-REV. CLOSING

: ELECTRIC LOCK

: POWER BOOST

: PUSH ‘N’ GO

: ALTERNATE ACTION

: SAFETY SLOW/STOP

: SLOWDOWN DISABLE

: RESERVED

SETTING

VALUE

DEFAULT

POWER

ON

U P

DOWN

U P

DOWN

WARNING: ALL SPEED
SETTINGS (OPENING,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAY MUST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.

DMSS

#2

APPROACH

P5

DMSS

#2

SAFETY

P4

ELECTRIC

LOCK P10

RETROFIT

P8

BODYGUARD

P1

ACTIVATE

P6

ACTIVATE

P7

DMSS

#1

APPROACH

P3

DMSS

#1

SAFETY

P2

LCN

®

XXXX SWING

XXXX-00

SN: XXXX

No Serviceable

P

ar

ts Inside
