Advanced Operation
Navigating the LCD Control Screen
Introduction
The LCD Control Screen and its controls let you configure the ampli fier and access many features that before
were available only through a remote computer. Also, you can recall DSP presets via the front panel. (Some DSP
parameters cannot be adjusted with the LCD Control Screen. That is done in System Architect.)

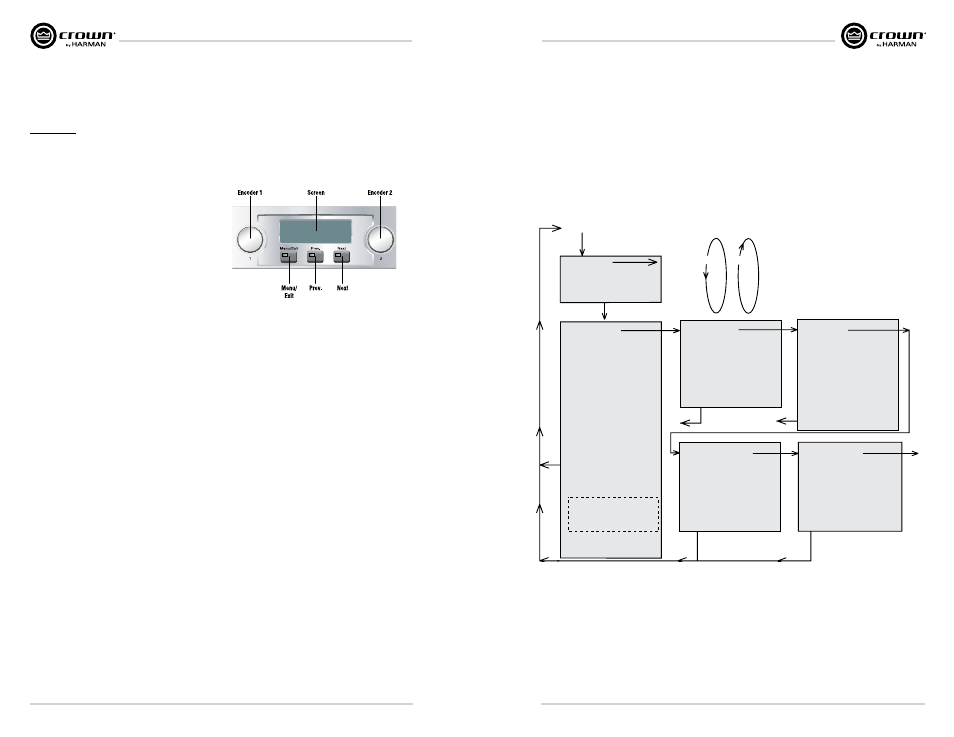

This image shows the parts of the LCD Control Screen. Its
functions are described below. NOTE: Listed functions can
also be controlled in System Architect.
Here’s how to access the various menus and settings in the LCD control screen:
Starting from the Attenuation screen, press Menu/Exit to go to the Sample Rate screen.
• Press Next to go to the next item in the menu.
• Press Prev to go to the previous item in the menu.
• Turn or press either Encoder knob to change the value of the dis played parameter.
• When you see a menu screen, push the knob once to see the items in that menu. Or press Next to go to the
next menu.
• Press Menu/Exit to leave the menu and return to the Attenuation screen at any time.
MENU TREE
Attenuation - Mute - Lockout
Menu button
Sample Rate
Analog Input Sensitivity
Presets
Amp Mode
Locate
ADVANCED MENU
(press knob once to access these
items:)
Attenuator Limits
Attenuator Link
Input Sources
Analog Source Select
Maximum Analog Input
Digital Source Select
AES Source Select
AES Input Trim
AES Input Status
Cobranet Source Select
Cobranet Input Trim
Bandpass Gain
Output Polarity
Input Delay
Speaker Delay
LED Meter Display Type
Bar Meter Display Type
LevelMax
Peak Voltage Limiter
RMS Voltage Limiter
Transducer Thermal Limiter
Pink Noise Generator
SLM (Sweep Load Monitoring)
Front Panel Blackout
Next Prev
Exit
MONITOR MENU
(press knob once to access
these items:)
Load Monitoring
Thermal %
Thermal Temp deg. C
AC Line Voltage
Operating Time
Watts Output
ALERT MENU
(press knob once to access
these items:)
Amp Output Clip Errors
Analog Input Clip Errors
Thermal Errors
Low Limit Load Errors
High Limit Load Errors
SLM Errors
Line Voltage Errors
Fan Errors
Clear All Error Logs
NETWORKING MENU
(press knob once to access
these items:)
Network Info
Manufacturing Info
HiQnet Node Address
DHCP
IP Address
Subnet Mask
COBRANET MENU
(press knob once to access
these items:)
Cobranet Information
Ch1 Cobranet Rx
Ch2 Cobranet Rx
Cobranet Tx
Cobranet Conductor Priority
Cobranet Transport Latency
Next
Next Next Next
Next
ALL MENUS: Next/Previous loops
Exit Exit
Exit Exit
Next
To
Sample
Rate
Prev to
Cobranet
Menu
Level
Max
Suite
Some menu items require confirmation: after you request a change, the display might say “Press and hold.” To
confirm a change, press and hold an Encoder knob. If you don’t want the change to occur during a confirmation,
turn the knob or wait five seconds.
The entire front panel or just selected screens can be locked out or set to read only status using System Architect
software. Locked-out screens will either say “Lockout” or the individual parameter will say “N/A”. If a change is
attempted the screen will say “Changes Disabled”.
Sweep Load Monitoring is not available in early I-Tech HD models.
