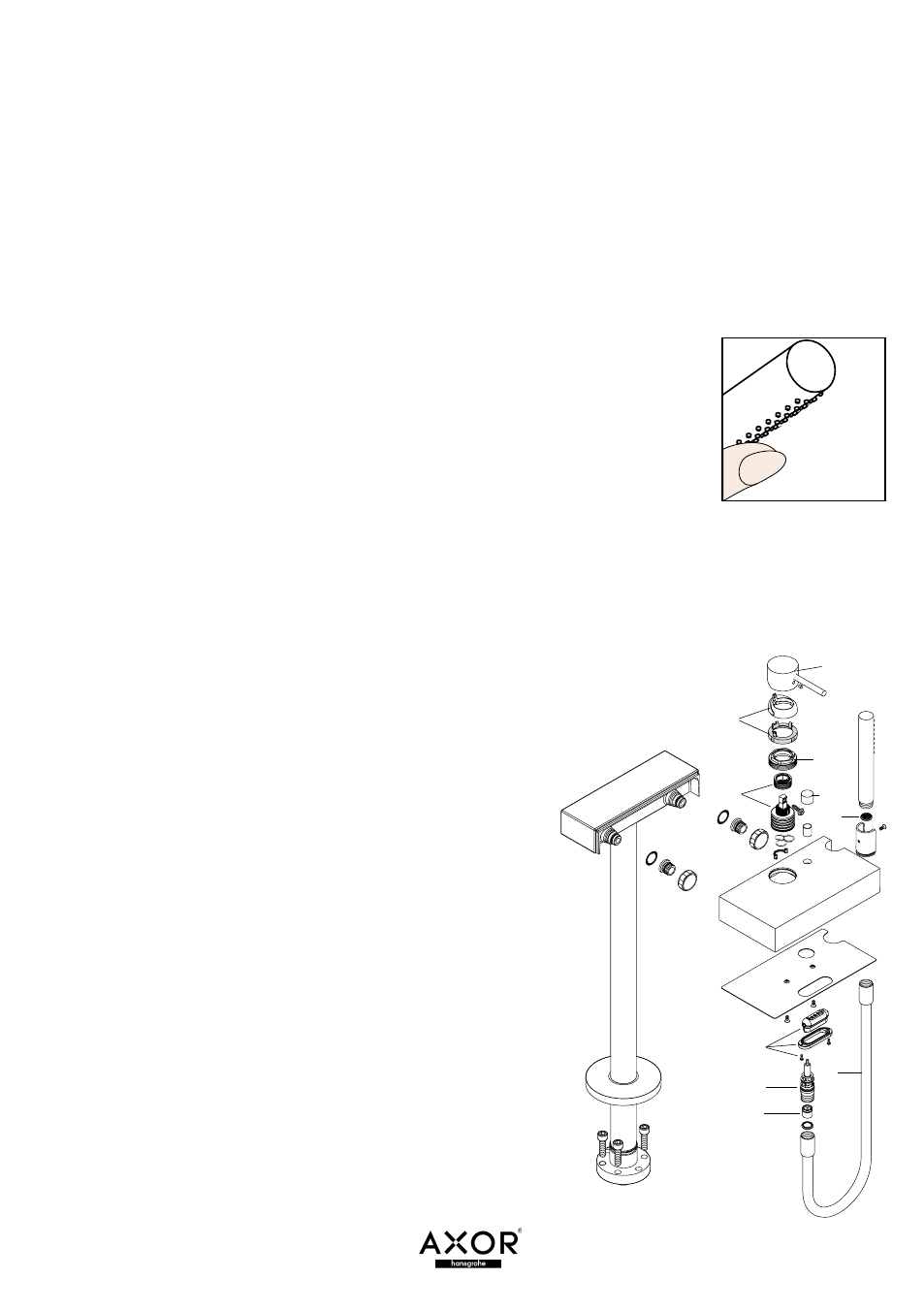

Replacement Parts
1 handle 10490000
1.1 screw cover 96338000
2 flange 96395000
3 nut 96461000
4 cartridge 92730000
5 spray former 97467000
6 diverter 94077000
7 diverter knob 96466000
8 check valve 94074000
9 hose 28282000
10 screen washer
11 handshower 28531001
1
2
3
4
5
6
7
8
9
10
11
User Instructions
• Pivot the lever upward to turn the water on, down to turn it off. Pivot the handle left
to obtain warmer water, to the right to obtain cooler water.
• When the unit is turned on, the water will come from the tub filler. Pull the diverter
knob to obtain water from the handshower When the water is turned off, the
diverter will automatically reset to the tub filler position.
• The handshower uses the Rubit!™ self-cleaning system. The
spray channels are lined with a material that resists scale
buildup. If scale buildup is noticed in the spray channels, turn
the water on lightly and rub across the channels with a finger or
a sponge to dislodge them.
• The check valve located in the handshower outlet should be
removed and checked yearly.
