6

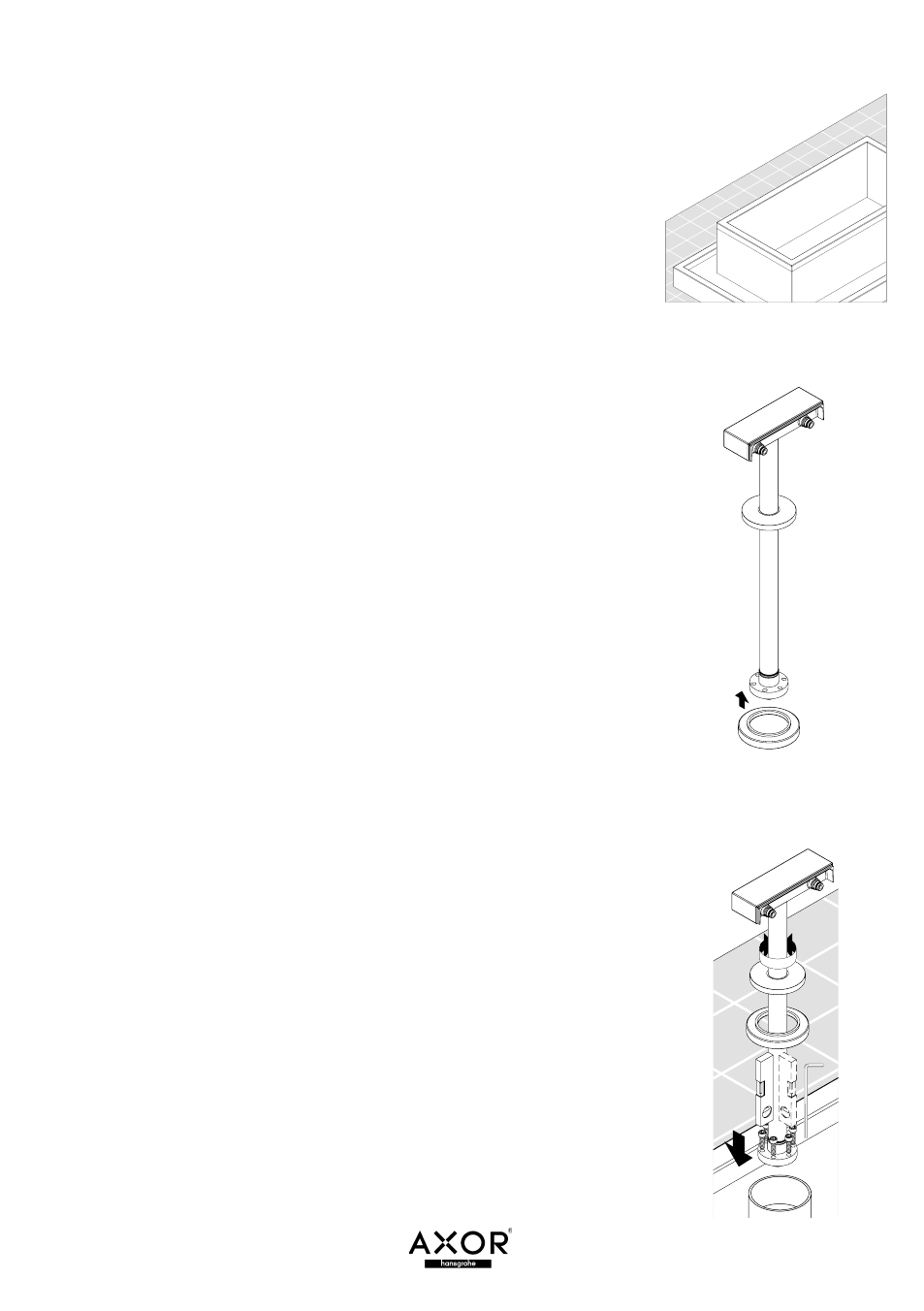

Place the tub escutcheon over the end of the tub filler.

Install the tub.

Install the tub filler to the rough. Slide the escutcheon

and the tub escutcheon up and out of the way. Make

sure that the unit is level in all planes. Use the 8mm

allen wrench to tighten the bolts evenly.
