7

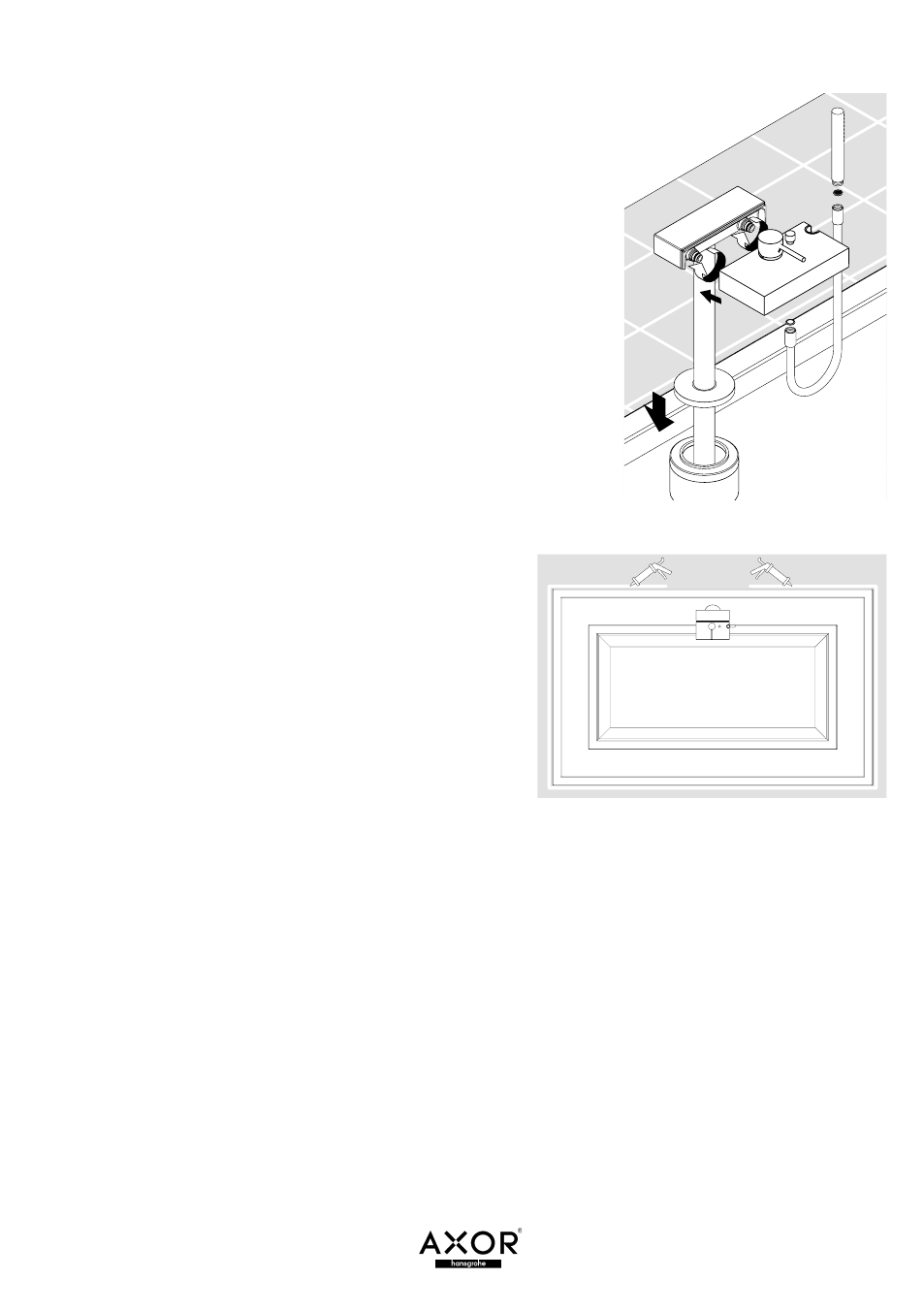

• Lower the tub escutcheon and escutcheon to the floor
• Push the housing over the top of the tub filler. Tighten
the nuts.
• Install a black rubber hose washer in the short hose
end connection. Connect this end to the handshower
port on the bottom of the housing. Install the screen
washer in the long hose end connection. Screw this
end to the handshower. Lower the handshower into
the handshower holder on the side of the tub filler.
• Seal the floor around the tub.
• Turn on the water and test all connections for leaks.
