AFS™ 224 User Manual
Live Filter Lift Button
Live Filter Lift provides maximum sonic integrity by removing unnecessary feedback filters. This button is
used to select the live filter lift times and are indicated as follows:
LED
Lift Time
Not Lit
Lift Off
Green
1 Minute
Yellow
10 Minutes
Red
60 Minutes
Mode Button
This button is used to select between FIXED MODE (button is green) or LIVE MODE (button is red).
The Mode button is also used to enter and exit Setup Mode when pressed and held (see “Setup Mode”).
AFS Filter LEDs
The AFS 224 offers 24 filter LEDs per channel, which provide visual indicators when AFS filters are set.
When in Setup Mode, these LEDs are used for setting up the total number of available filters and the
number of Fixed filters verses Live filters (see “Setup Mode”).

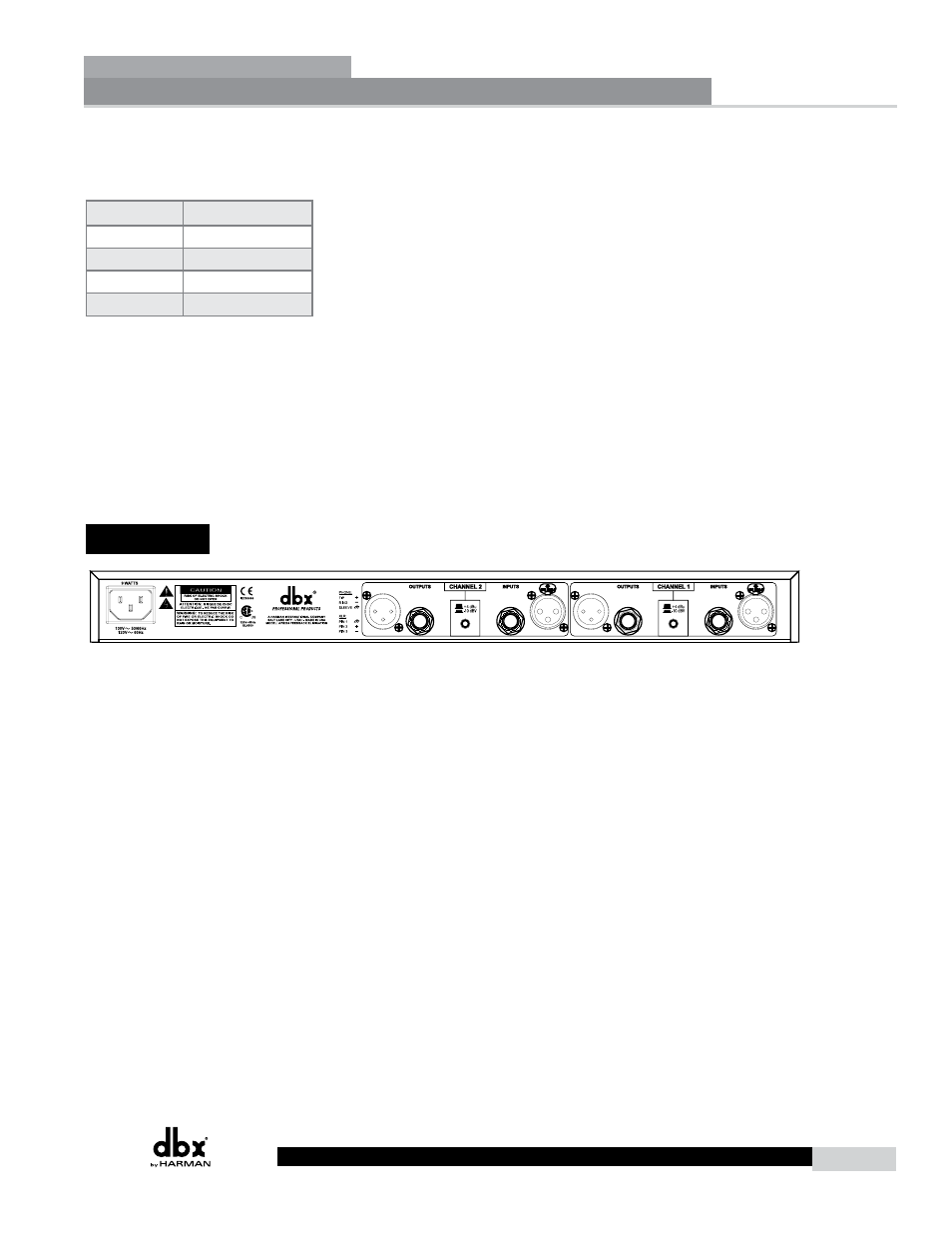

Rear Panel
Power Cord Receptacle
Connects AC power to the AFS 224.
Input Connectors
Two types of input connectors are provided for input connections: female locking XLR type connectors,
and 1/4” tip-ring-sleeve phone jack connectors. The maximum input level that the processor can accept
is +20dBu (ref: 0.775Vrms).
Operating Level Switch
This switch allows you to select between a nominal operating level of either +4dBu or
-10dBV. Use this switch to match the operating level of the AFS 224 to the equipment you are connecting
it to.
Output Connectors
Two types of output connectors are provided for output connections: male XLR type connectors, and
1/4” tip-ring-sleeve phone jack connectors.
Front & Rear Panels
