AFS™ 224 User Manual
AFS
™
224
Setup Mode
The AFS 224 Setup Mode is used to set the total number of AFS filters available and allocate the number
of Fixed verses Live filters available in each channel. The number of Live filters is the difference between
the total number of filters and the number of Fixed filters (Live Filters = Total Number of Filters
- Fixed Filters).
NOTE:
If channels are linked, all selections made in Setup Mode will affect both channels. In order
to edit channel options independently, you must first unlink the channels as described in the “Linking
Channels” section of this manual.

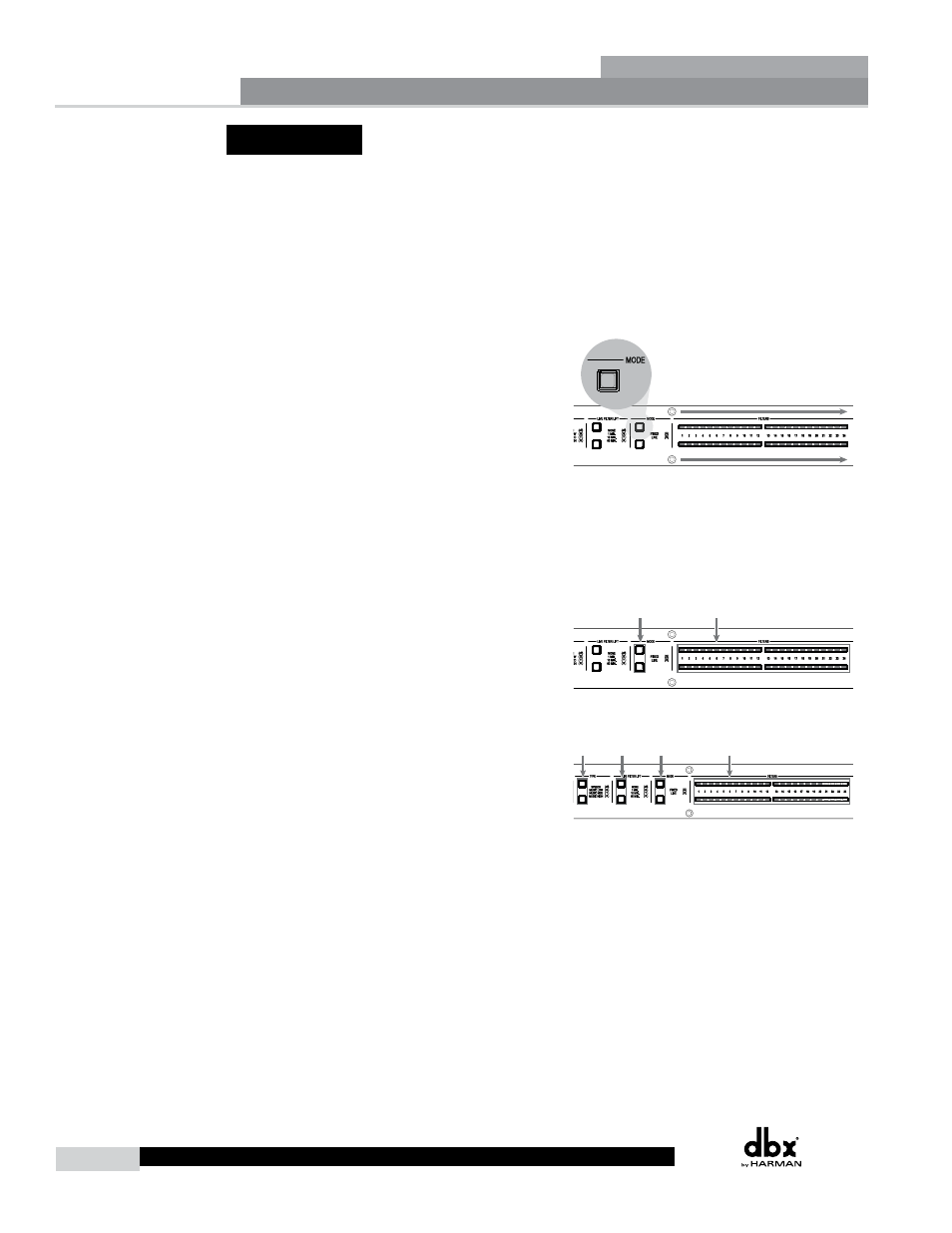

Entering Setup Mode
Press and hold the CHANNEL ONE
button until the Filter LED’s begin lighting from left
to right, then release the button. You are now in Setup
Mode. This is indicated by the
lighting yellow. You are now in the Set Total Number
Filters Menu. Pressing and releasing each channel’s
Set Total Number Filters Menu (yellow LED) and the
Set Number Fixed Filters Menu (green LED).
Selecting the Total Number of Filters
When in Setup Mode, the Set Total Number Filters
Menu is indicated by the selected channel’s
button lighting yellow. If the
are not lit yellow, press the
they are. The current setting for the total number of
filters are indicated by the number of Filter LED’s lit
for each channel.
To change the total number of filters, use the channel
filters for each channel. Each press of the button will
increment or decrement the total number of filters.
Press and hold each button to slowly increment or
decrement the number.
WARNINg!
Changing the total number of filters
may remove feedback filters already set.
Yellow
24 Total Filters
Available
+
Yellow
-
Total Filters
Available
Operation
