Low & high speeds high speed only, Diagram #8, Diagram #7 – Derale Performance 17" High Output Single RAD Pusher_Puller Fan with Standard Mount Kit User Manual

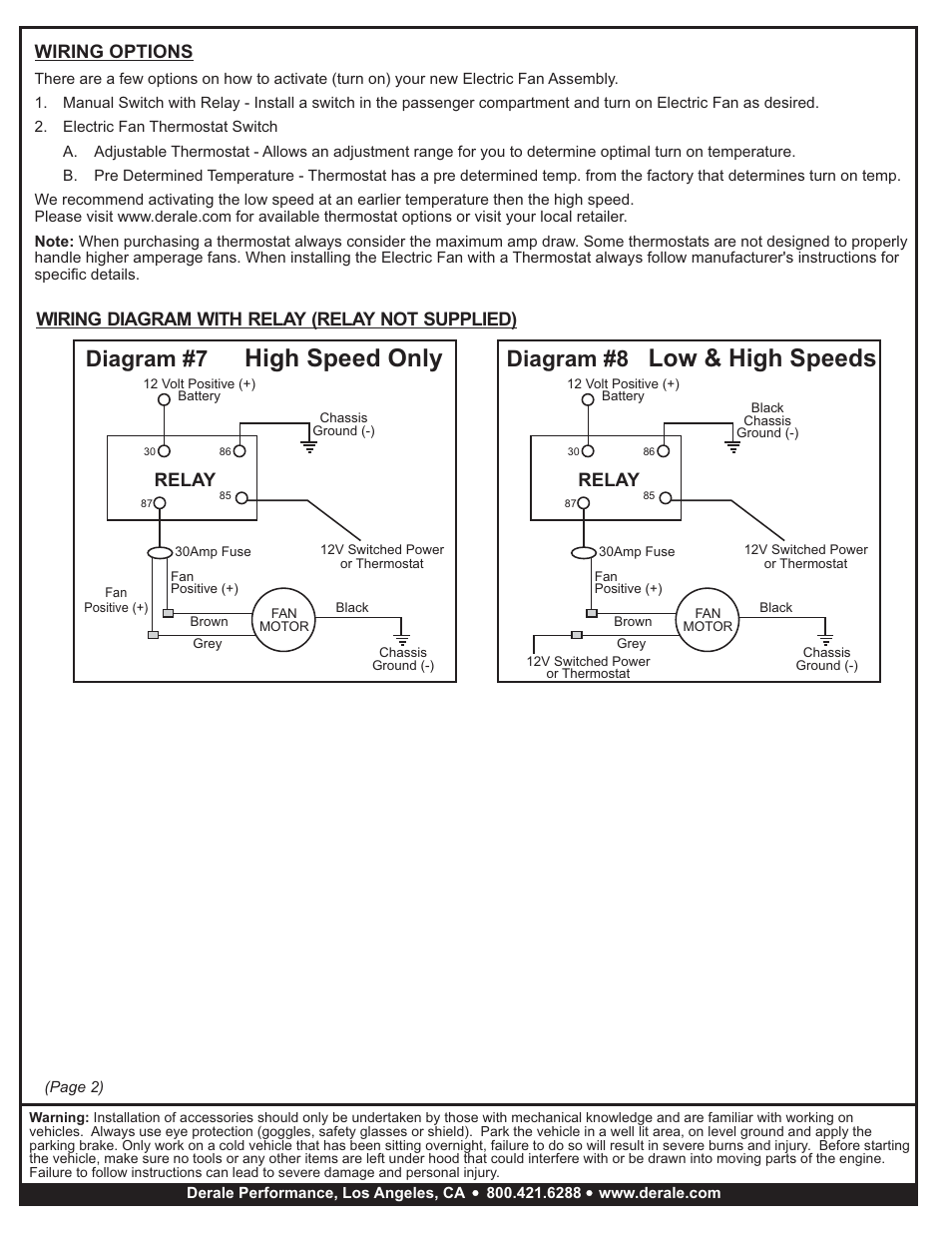

Page 2: Wiring options, Wiring diagram with relay (relay not supplied), Relay
