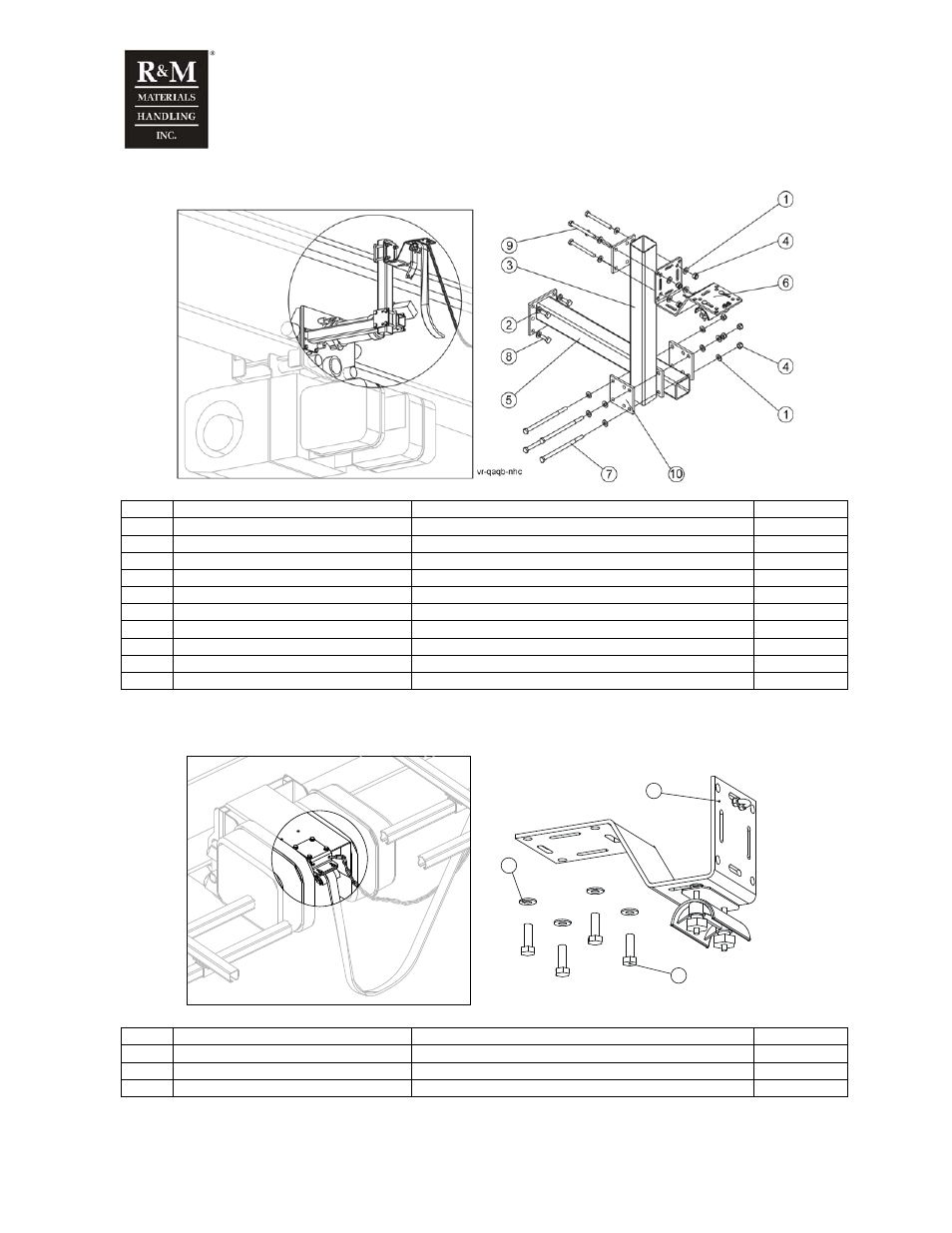

5.2 Normal headroom hoist, girder height >400 mm (Wire rope hoist)
Pos. Name
Specification
Amount
1 Washer
DIN125-A8-A3G
16
2 Washer
DIN127-A8-A3G
4
3 Tube
CQ-L420W50H50T2
1
4 Nut
DIN985-M8-8-A3G
8
5 Towing
arm
CQ-L450
1
6
Towing arm assembly
1
7 Screw
DIN931-M8x140-8.8-A3G
4
8 Screw
DIN933-M8X25-8.8-A3G
4
9 Screw
DIN931-M8x80-8.8-A3G
4
10 Fixing
plate
CQP-L80W80H6
4
5.3 Low headroom hoist (drum diam. 303 mm or 355 mm), girder height
≤500 mm
(Wire rope hoist)
vr-qaqb-llc
2
1
3
vr-qaqb-llc2
Pos. Name
Specification
Amount
1 Washer
DIN127-A8-A3G
4
2 Assembly
1
3 Screw
DIN933-M8X12-8.8-A3G
4
