• Input sensitivity: .5V effective value. Overload protection: 250VDC or alternating peak
Temperature Measurement
1. Press “ Hz / ˚C /˚F “ button over 2 seconds, select temperature mode for celsius mea-
surement. Meanwhile, the temperature symbol will be displayed. Further press “Hz /
˚C /˚F “ , it will be displayed as Fahrenheit. The procedure repeats in the same order.
To exit from temperature measurement, press “Hz / ˚C /˚F “ button over 2 seconds.
2. Respectively plug the positive input end and negative insertion end of temperature
probe into the terminals of “
VΩ Hz
TEMP
“ and “ COM”.

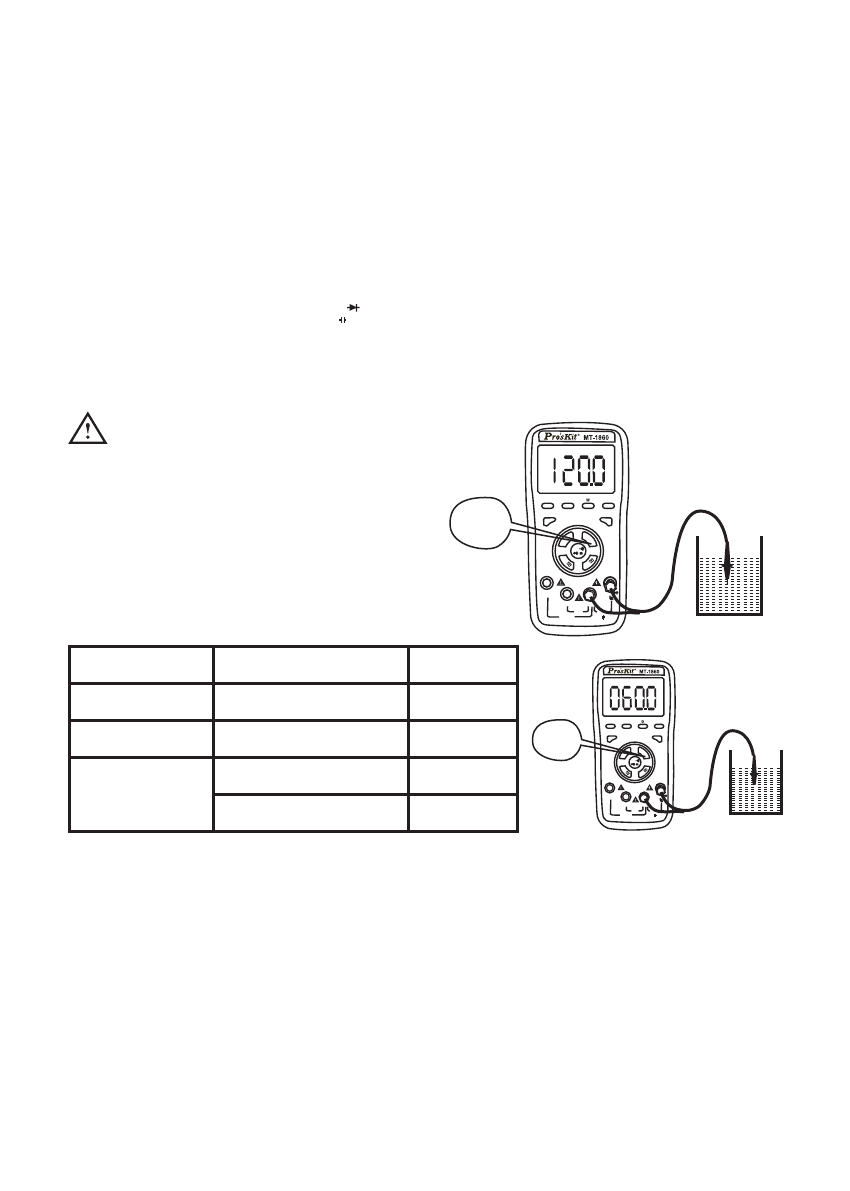

3. Put the induction end of temperature probe on the surface of the tested object.
See the picture on the right.
4. Read the current testing results from the display.
Caution:
a) When the input end is open circuit,
it indicates normal temperature.
b) Do not change the temperature
sensor at random, otherwise the accuracy
of measurement can not be guaranteed.
c) Do not input voltage in temperature mode,
otherwise the meter may be damaged.
Range Accuracy Resolution
-20˚C~400˚C ±(1.0%+50d) 0.1˚C
400˚C~1000˚C ±(1.5%+15d) 1˚C
0˚F~1832˚F
±(1.0%+50d)<750˚F 0.1˚F
±(1.5%+15d)≥750˚F 1˚F
• K-Thermocouple (Nickel-chromium - nickel silicon) banana probe.
Communication Connection
. Select setup to conduct installation according to the corresponding instrument models
indicated by the disk in the package.
2. Connect the instrument to computer by USB cable.
3. Press “RS232/REL” over 2 seconds and the “RS232/REL” symbol will be displayed
on screen.
4. Once the testing data is transmitted to computer, you could start recording, analyzing,
processing and printing the data. For more details, please kindly refer to instructions
in the software.
CAT ll
VΩ Hz
10A
COM mA
10A 10sec MAX FUSED
MAX 600mA
FUSED MAX 1000V DC 750V AC
Ω
m A
A
DC
/A C Hz/
C˚/F
˚
AUTO POWER OFF
POWER REL/RS232
MAX/MIN Hz/DUTY HOLD RANGE
TEMP
DC
V
AUTO
APO
temperature
switch
CAT ll
VΩ Hz
10A
COM mA
10A 10sec MAX FUSED
MAX 600mA
FUSED MAX 1000V DC 750V AC
Ω
m A
A
DC /A C Hz/ C˚/F
˚
AUTO POWER OFF
POWER REL/RS232
MAX/MIN Hz/DUTY HOLD RANGE
TEMP
DC
V
AUTO
APO
temperature
switch
˚F
