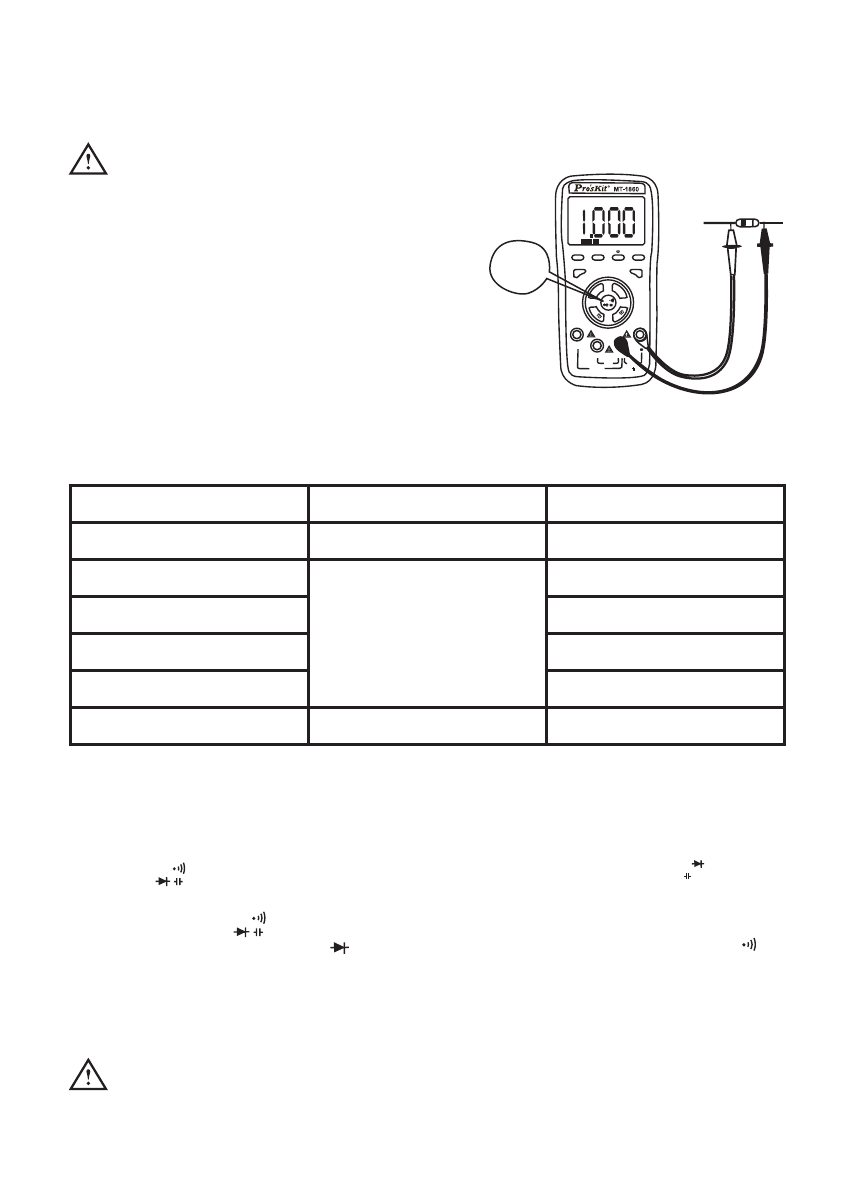

responding symbol will appear on the LCD screen. In automatic resistance measure-
ment mode, you could select manual measurement by pressing “Range”.
Caution:
a) When measuring the capacity, all the
powers within the tested circuits must
be disconnected and the capacitance
shall be sufficiently discharged.
b) When measuring the resistance, any
occurrence of voltage may Lead to
inaccurate readings, and if the 250V
protection voltage is exceeded, it may
damage the meter or threaten the safety of the user.
c) When the range of 600Ω is in use, first sort-circuit the meter pens and measure the
resistance of the lead wires and then deduct it in the actual measurement.
Range Accuracy Resolution
600Ω ±(0.8%+5d) 0.1Ω
6kΩ
±(0.8%+4d)
1Ω
60kΩ 10Ω
600kΩ 100Ω
6MΩ 1kΩ
60MΩ ±(1.2%+10d) 10kΩ
• Open circuit voltage: 600mV.
• Overload protection: 250V DC or AC peak values.
Diode and On-and-Off Test
. Press “
Ω
” button and respectively plug the red and black pens into “
VΩ Hz
TEMP
”and
“ COM ”.
2. Circularly press “
Ω
” button to select the diode or buzzer measurement. In Diode
mode, LDC screen displays “
V
“ and voltage symbol, and the buzzer symbol “
Ω
“
is also displayed on the screen.
3. Connect the red meter pen to the positive of the diode, the black meter pen to the
negative of the diode.
Caution:
a) In case the diode is open circuit or the polarities are connected reversely, “OL” will
VΩ Hz
TEMP
CAT ll
10A
COM mA
10A 10sec MAX FUSED
MAX 600mA
FUSED MAX 1000V DC 750V AC
Ω
m A
A
DC
/A C Hz/
C˚/
F˚
AUTO POWER OFF
POWER REL/RS232
MAX/MIN Hz/DUTY HOLD RANGE
DC
V
AUTO
APO
resistance
switch
