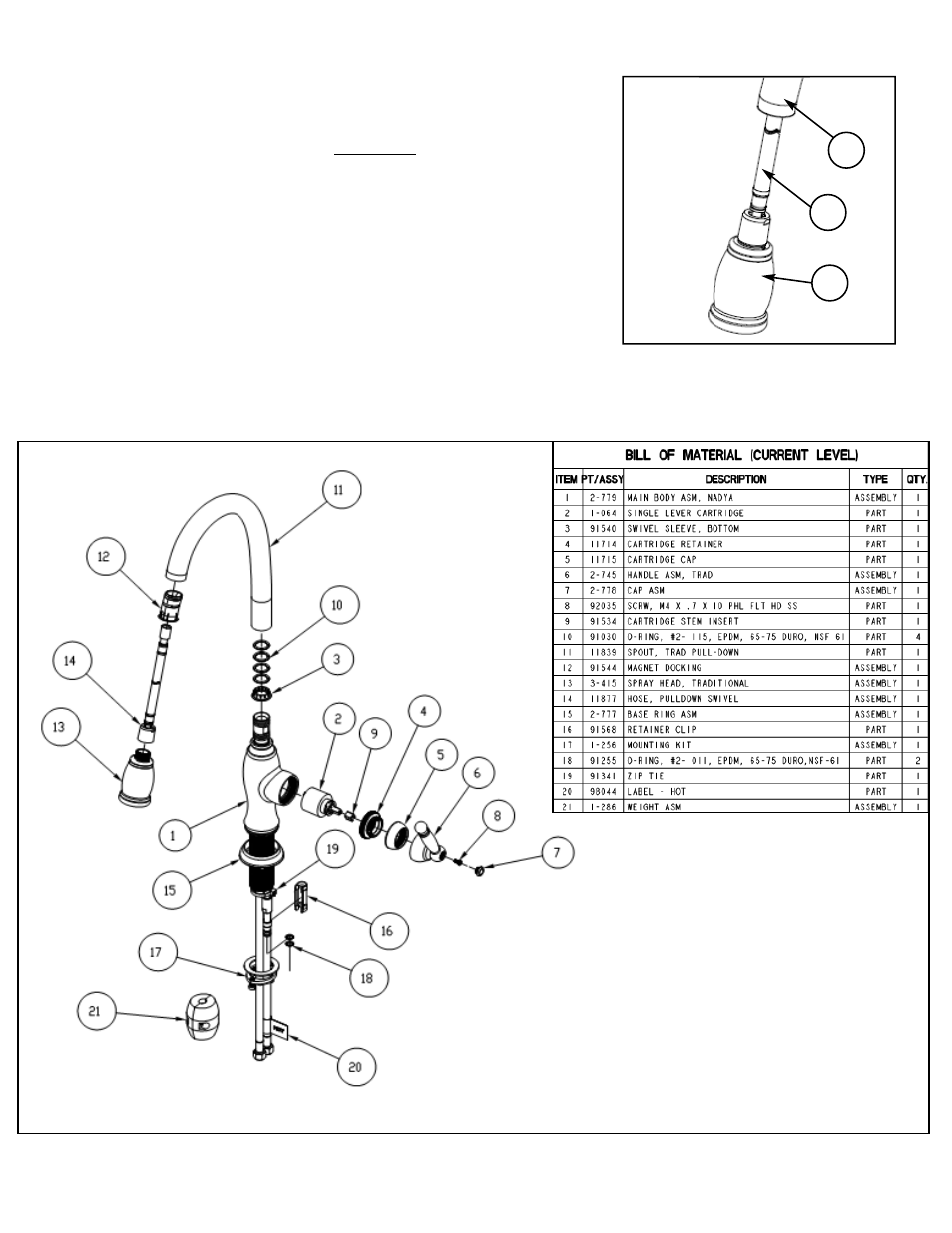

Figure 6 - Spare Parts
01/28/14
ORDER 11870
FOR 2510-5203
4
6
5
Figure 5
8. With faucet in the OFF position, open water supply valves. Inspect
connections under sink for leaks. DO NOT turn faucet on yet.
9. Pull SPRAYHEAD (5) out from SPOUT (4). While holding HOSE (6),
unscrew SPRAYHEAD (5). Aiming HOSE (6) into sink, turn on faucet
to center position (mixed) and flush for one minute to remove debris
from lines.
10. Turn OFF faucet and reattach SPRAYHEAD (5) to HOSE (6). See
Figure 5.
11. Check the SPRAYHEAD (5) by operating the trigger from aerator to
spray.
