Newport Brass 1500-5203 - Manual (Page 2)

NWP-1500-5103

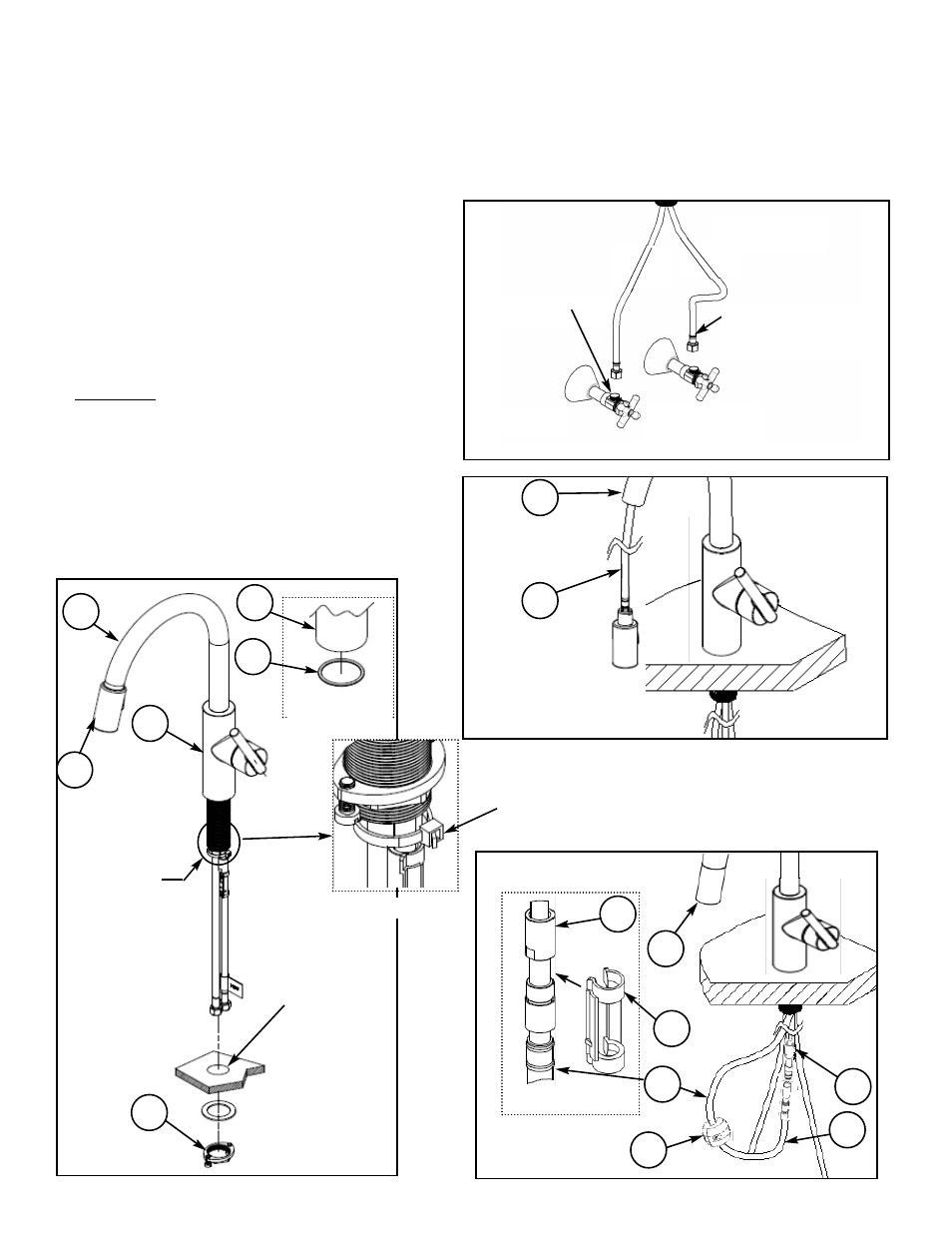

Figure 1
Figure 1a
1
3
2
1
Mounting
surface
hole
Recommended Installation by a Professional Plumbing Contractor
Note: The use of petroleum base plumbers putty on our products will nullify the warranty. We recom
mend the use of clear silicone sealing materials.
If mounting faucet to stainless steel rim, an under-mount support, (e.g. wood, appropriate size x 1/2”
thick), should be utilized.
1. Drill hole in mounting surface. Recommended deck hole Ø1.350”not to exceed Ø1.562”.
2. Place O-ring (2) on underside of BODY (1). See
Figure 1a.
3. Insert Hoses through hole in mounting surface.
Secure into place with MOUNTING KIT (3). See
Figure 1.
4. Attach hot/cold spout supply directly to valves in
the wall. See Fig. 2
5. DO NOTremove the HOSE (6) from SPOUT (4).
See Figure 3.
6. Slide WEIGHT(9) onto HOSE(6). See Figure 4.
7. Connect HOSE (6) to valve outlet (8).
See Figure 4. Attach CLIP (7) to the connection
between HOSE (6) and OUTLET (8).
See Figure 4a.
REV A
Figure 2
Wall valves
(not included)
9/16-24 UNEF
(FOR 3/8” COMPRESSION
OUTLET )
3/8” COMPRESSION
OUTLET
5
Figure 3
6
4
DO NOT REMOVE
ZIP TIE
4
See Detail A
Detail A
Figure 4
7
8
8 6
9
5
Figure 4a
6
