Newport Brass 278P-02 User Manual
Page 3
NWP-278-01
EN-1714
REV-
Figure 3
6
7
5

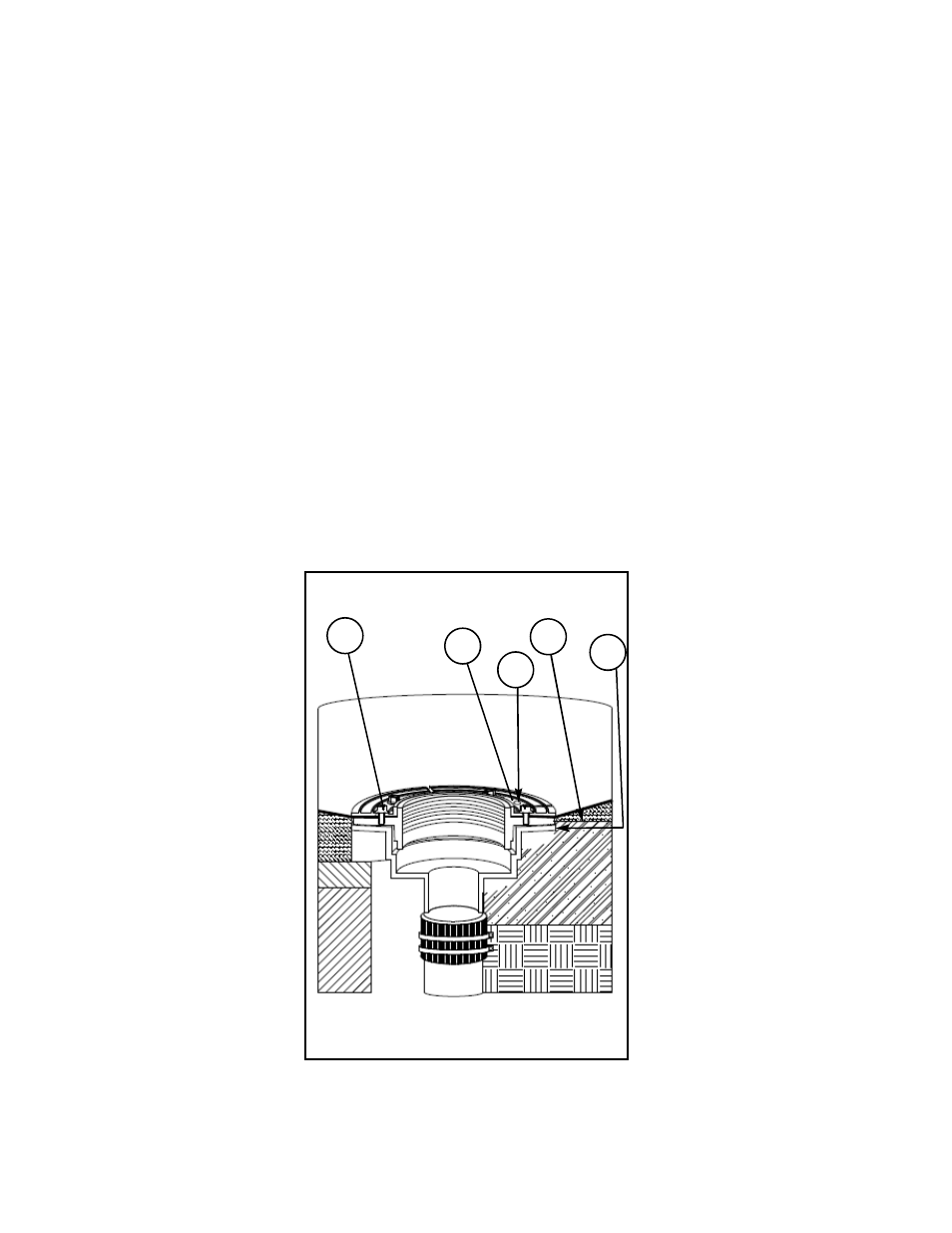

WATERPROOF MEMBRANE/SHOWER PAN LINER INSTALLATION (see figure 3)
Waterproof membrane/shower pan liner shall be installed as per manufacturer instructions and local build-
ing & plumbing codes
4
1. Waterproof membrane/shower pan LINER [4] material should be between DRAIN BODY [1] and
COLLAR [5]
2. Place COLLAR [5] over BOLTS [8] in up or down
postion (based on flooring material thickness and/
or local building & plumbing codes) and rotate to
lock COLLAR [5] in place.
Note: COLLAR [5] may be installed in up position for an additional 7/8” in height.
3. Tighten all four BOLTS [6] snug.
4. Test waterproof membrane/pan liner installation in accordance with local building & building codes.
Note: WEEP HOLES [7] shall be clear of any residual pan liner material.
