Brasstech recommends this product be installed by licensed contractor(s)

To avoid damage,store decorative grid in safe and secure place,Grid should be installed

after flooring is completed

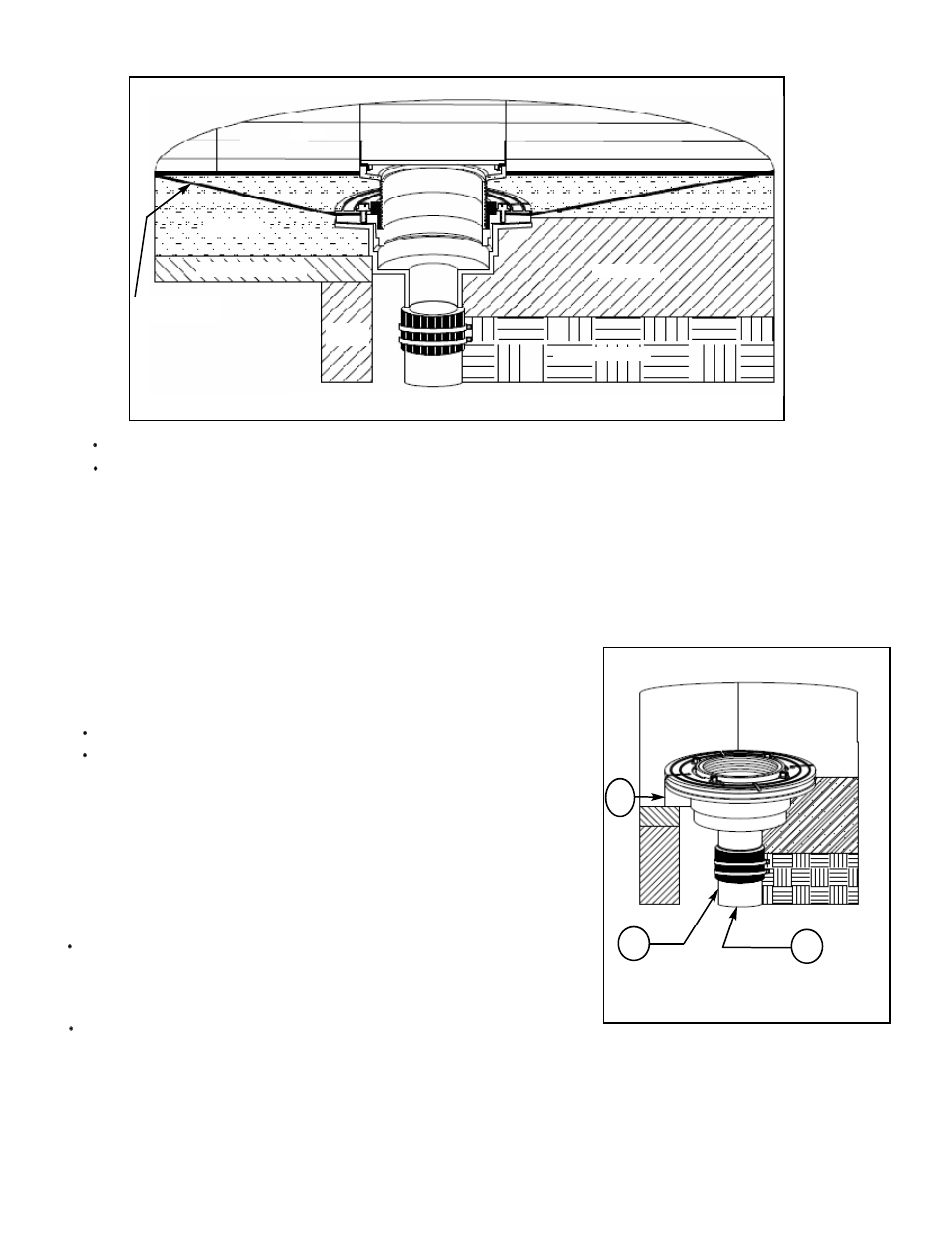

CONNECTING TO DRAIN PIPE(see figure 1 & 2)

1. Connect DRAIN BODY [1] to pre-installed DRAINPIPE

[3] with trap in the floor using

No-Hub connector SLEEVE [2] (not included) for cast

iron body.

ABS plastic pipe solvent cement for ABS drain body

PVC plastic pipe solvent cement for PVC drain body

Note:Drain Body may have 1/2” NPT primer connection on side of

drain body.If primer is not required, INSERT PLUG (not included)

into body.

2. Perform a leak test in accordance with local building

& plumbing codes

Concrete sub-flooring(see figure 1)

For proper support of drain back fill around drain with

dirt and concrete

Wood sub-flooring

For proper support of drainbody brace and strain drain and piping

Note: Sub floor height and depth may vary depending on location and type. Install the drain

according to type of application.

Figure 2

Figure 1

TILES

MORTAR

WOOD SUB-FLOOR

FLOOR

JOIST

WATERPROOF

MEMBRANE

EARTH/GROUND

CONCRETE

All figures show cast iron no-hub connection
